Description
Bosch UHO-HBGS Overview
- 1Description
- 2Easy installation
- 3Built-in Heater Blower
- 4Rugged

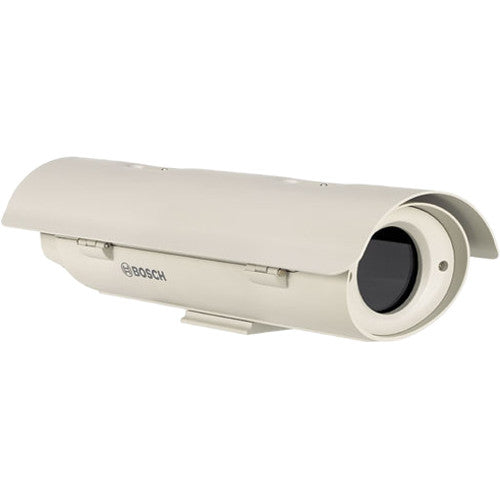

The UHO-HBGS-51 Outdoor Housing from Bosch enables you to use Dinion CCTV cameras in an outdoor environment or in areas where the cameras need to be protected. For increased weather resistance, this aluminum housing comes with a built-in heater and blower and features liquid-tight cable entry. It also features side opening design for easy installation and camera setup, and the use of tamper-resistant screws for locking clasps to prevent unauthorized access.
Easy installation
The hinged, side-opening design allows easy installation of camera/lens combinations and gives access to controls even when the housing is mounted. Power and video cabling can be routed via feed-through fittings or external 4-pin power and BNC connectors at the rear of the housing. Feed-through entry holes in the base allow for even better cable management. Mounting holes in the base can be used to install the housing on a wide range of pan/tilt brackets, adjustable heads, and various other camera mounting brackets. The unit comes with tamper-resistant screws for the locking clasps to prevent unauthorized access.
Built-in Heater Blower
The aluminum housing has two heaters, one for window defrosting and one for the housing interior, and a blower. The interior heater maintains the internal temperature of the housing in cold temperature conditions to extend the lower temperature limit to -40°F (-40°C). The permanently powered window defroster heater and blower minimize fogging in high humidity locations.
Rugged
With a sleek design that meets IP66 and NEMA-4X standards, this housing is suitable for protecting your video surveillance equipment from adverse weather conditions.
UPC: 800549769471
In the Box
- Bosch UHO-HBGS-51 Outdoor Housing (230 VAC)
- Sunshield
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Easy installation
- Built-in Heater Blower
- Rugged
Bosch UHO-HBGS Specs
Electrical
| Voltage | Supply: 230 VAC |
| Power Consumption | With blower: 45 W Without blower: 40 W |
| Camera | Maximum Power Consumption: 10 W |
Connectors
| Rear | Fittings: 1 x Cable Diameter: 0.14 to 0.32" (5.5 to 8 mm) 2 x Cable Diameter: 0.23 to 0.39" (5.8 to 10 mm) |
| Bottom | 2 x Cable Diameter: 0.18 to 0.31" (4.5 to 7.9 mm) |
Environmental
| Operating Temperature | Internal: 4 to 131°F (-20 to 55°C) External: 40 to 122°F (40 to 50°C) |
| Enclosure Rating | IP66, NEMA-4X |
Certifications and Approvals
| Safety | acc. to EN 60065-1 (CE) |
| Immunity | acc. to EN 50130-4 (CE) |
| Emission | acc. to EN 55022 class B (CE) acc. to EN 61000-3-2 (CE); EN 61000-3-3 (CE) acc. to FCC CFR 47 Part 15, Class B |
Mechanical
| Construction | Aluminum casing, silicone gaskets, stainless steel hardware |
| Window | 0.12" (3 mm) glass |
| Mounting Holes | 2 x 1/4-20 Tapped Holes Inner Pair: 2.0" (51 mm) Center-To-Center Outer Pair: 2.9" (73 mm) |
| Dimensions | Camera + Lens: 3.6 x 3.2 x 10.3" (91.0 x 81.0 x 262.0 mm) Housing: 4.9 x 6.7 x 18.8" (126.5 x 171.3 x 480 mm) including sunshield |
| Weight | 6.8 lb (3.1 kg) without blowers 7.1 lb (3.2 kg) with blowers |
Packaging Info
| Package Weight | 7.245 lb |
| Box Dimensions (LxWxH) | 22.8 x 8.1 x 7.8" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
