Description

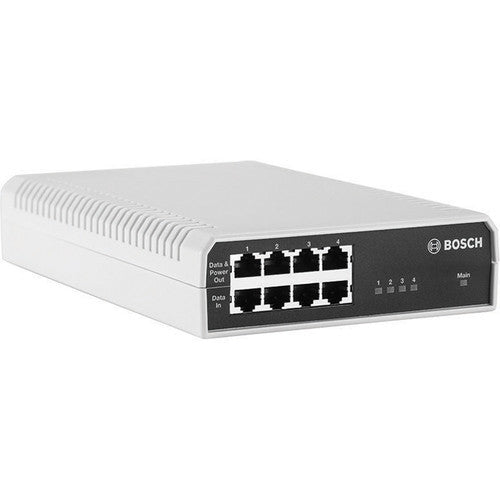

The 4-port Midspan PoE Injector from Bosch allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras. The injector converts the AC input power to a 48 VDC power supply which is then provided to the cameras via the Ethernet cable. It supports up to 10/100/1000 Mbps pass-through data rates. The injector provides up to 15.4 W per port and it can be easily mounted on a shelf, wall, or ceiling.
- Makes PoE cameras easy to install
- Allows one-wire connection
- Reduces power supply requirements
- Compact solution
UPC: 800549777384
In the Box
Bosch NPD-5004-POE Midspan PoE Injector
- Power Cord
| Power | |
|---|---|
| Ports | 4 |
| Input Voltage | 100 to 240 VAC; 50/60 Hz |
| Maximum Input Current | 1 A @ 110 VAC 0.4 A @ 240 VAC |
| Output Voltage | 48 VDC nominal |
| Output Power | Per Port: 15.4 W maximum |
| Input/Output Connectors | |
|---|---|
| Input | IEC 60320 |
| Ethernet connection | Shielded RJ45 connector; EIA 568A and 568B |
| Data | 10/100/1000 Mbps pass-through data rates |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Storage Temperature | -4 to 158�F (-20 to 70�C) |
| Operating Humidity | Maximum 90% RH non-condensing |
| Storage Humidity | Maximum 95% RH non-condensing |
| Thermal Rating | 51 BTU/hour |
| Standards | FCC Part 15, class B EN 60950 EN 55022 class B EN 55024 IEEE 802.3af |
| Approvals | UL, cUL, FCC, VCCI, GS mark |
| Regulatory Compliance | CE, RoHS, WEEE |
| Mechanical | |
|---|---|
| Dimensions | 5.8 x 1.7 x 8.8" (14.8 x 4.3 x 22.4 cm) |
| Weight | 21.9 oz (620 g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.6 lb |
| Box Dimensions (LxWxH) | 12.0 x 9.3 x 2.2" |
