Description
Bosch NPD-5001-POE Overview

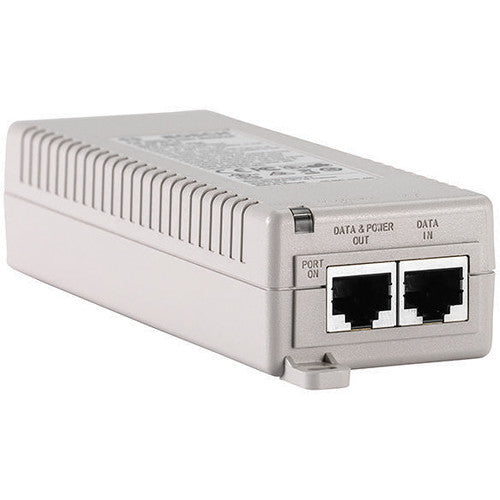

The NPD-5001-POE Midspan PoE Injector from Bosch can support a device that requires up to 15.4W of PoE power. It complies with IEEE 802.3af and supports 1000 Mb/s passthrough data rates.
Features
Power injector converts AC input power to +48 VDC via Ethernet
Reduces power supply requirements
1000M Ethernet interface
Enables one-wire connection
Can be mounted on a wall, shelf, or ceiling
Power cord included
13 Btu/hour
UL, cUL, FCC, VCCI, GS mark, CE, RoHS, and WEEE certified
UPC: 800549777377
In the Box
- Bosch NPD-5001-POE Midspan PoE Injector
- Power Cord
- Limited 3-Year Manufacturer Warranty
Bosch NPD-5001-POE Specs
Key Specs
| Inputs/Outputs |
1 x RJ45 Gigabit Ethernet (Input)
1 x RJ45 Gigabit Ethernet (Output) |
| Shielded I/O |
Yes
|
| PoE Power |
48 VDC, 15.4 W
|
General
| Inputs/Outputs |
1 x RJ45 Gigabit Ethernet (Input)
1 x RJ45 Gigabit Ethernet (Output) |
| Shielded I/O |
Yes
|
| Supported IEEE Standards |
802.3af
|
Electrical
| PoE Power |
48 VDC, 15.4 W
|
| Power Consumption |
15.4 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.4 to 1 A
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
90%
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Storage Humidity |
95%
|
| Certifications |
CE, FCC, GS, RoHS, UL, VCCI, WEEE, cUL
*as per Manufacturer |
Physical
| LED Indicators |
Yes
|
| Wall Mountable |
Yes
|
| Dimensions |
5.5 x 2.1 x 1.3" / 140.0 x 53.0 x 33.0 mm
|
| Weight |
0.44 lb / 200 g
|
Packaging Info
| Package Weight |
1.3 lb
|
| Box Dimensions (LxWxH) |
8.3 x 4.7 x 2.3"
|
