Description

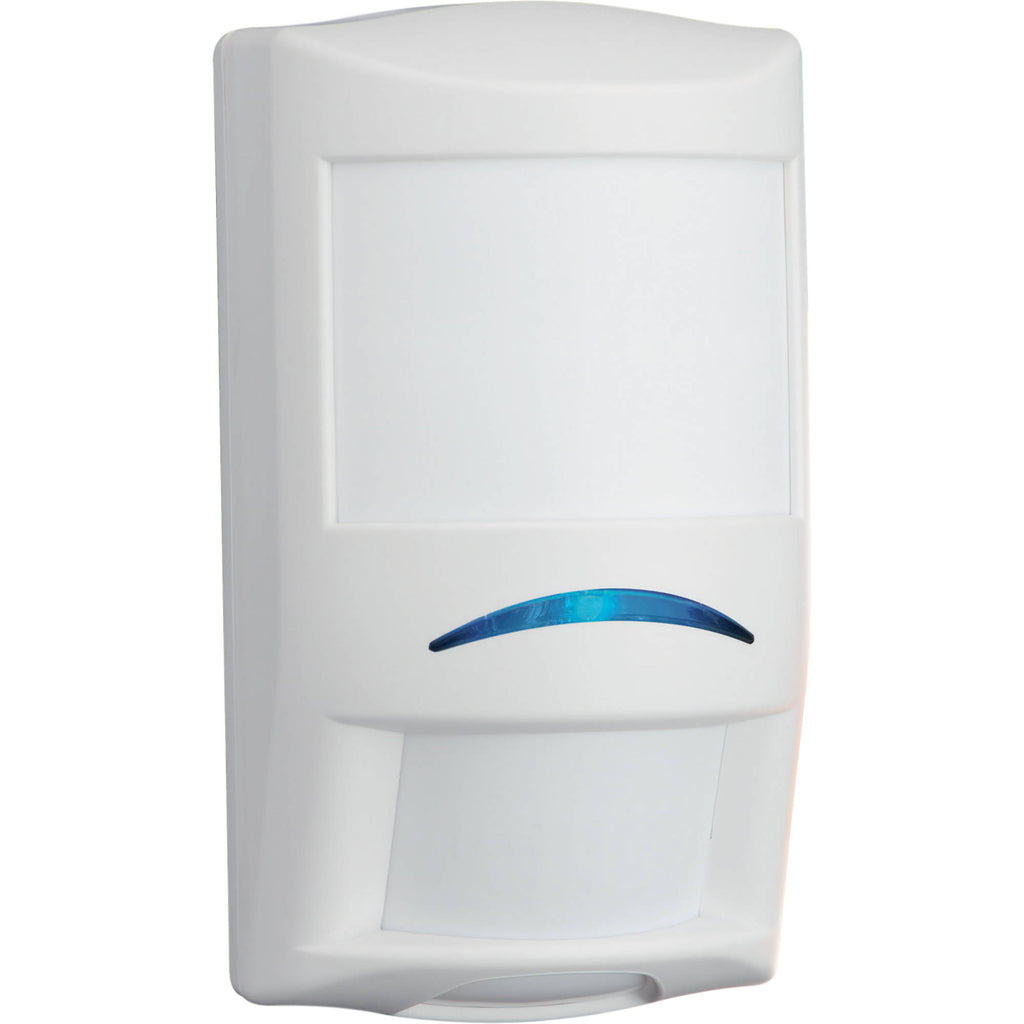

Bosch ISC-PPR1-W16 Overview

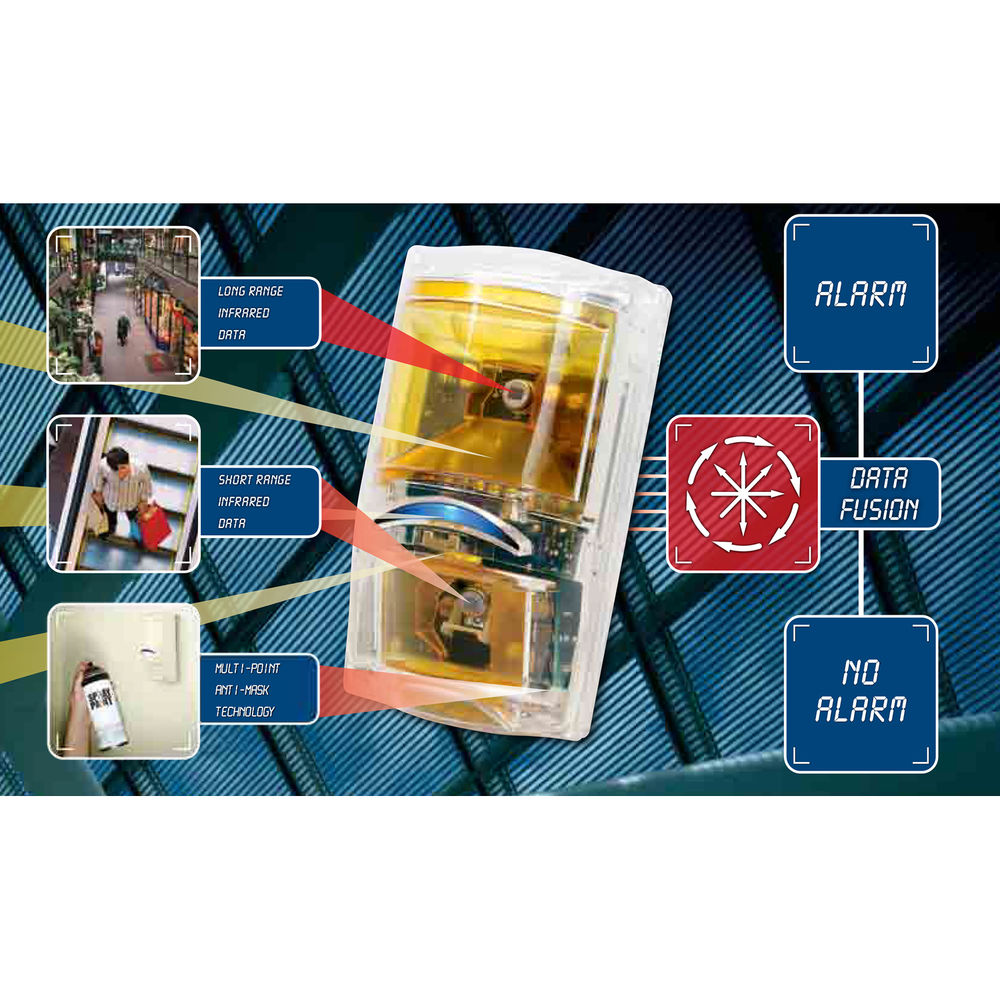

Featuring tri-focus optics technology, the ISC-PPR1-W16 Professional Series PIR Motion Detector from Bosch uses optics with three focal lengths for long-, medium-, and short-range coverage. Its 90° field of view covers up to an 50 x 70' area, or a narrower 25 x 33' area. Sensor Data Fusion technology analyzes signals from four sensors, including two pyroelectric sensors, a room temperature sensor, and a white light level sensor to provide accurate detection.
The detector adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions, and features self-adjusting LED brightness to automatically adjust to the surrounding light level. There is a blue LED that indicates an alarm condition and activates during a remote walk test. The detector is immune to draft, insect, and small animals under 10 lb, helping to reduce false alarms. Installation is quick with its self-locking enclosure and built-in bubble level.
In the Box
- Bosch ISC-PPR1-W16 Professional Series PIR Motion Detector
- Mounting Hardware
- Limited 5-Year Manufacturer Warranty
Bosch ISC-PPR1-W16 Specs
| Operating Voltage |
9-15 VDC
|
| Maximum Current |
<15 mA
|
| Standby Current |
<10 mA at 12 VDC
|
| Relay Output |
Solid state relay, normally-closed (NC) contacts, power supervised, 3 W, 125 mA, 25 VDC, <10 Ohms resistance
|
| Tamper Output |
Normally-closed (NC) contacts (with cover on) rated 25 VDC, 125 mA maximum
Connect tamper circuit to 24-hour protection circuit |
| Relative Humidity |
0 to 95%, non-condensing
|
| Operating Temperature |
-20 to 130°F (-29 to 55°C)
32 to 120°F (0 to 49°C) (for UL-certificated installation) |
| Indicators |
Alarm: Blue LED
|
| Pattern |
11-layer, 86 zones
|
| Coverage |
50 x 70' (16 x 21 m) or 25 x 33' (8 x 10 m)
|
| Mounting Height |
Recommended: 7 to 10' (2 to 3 m)
|
| Material |
High-impact ABS plastic
|
| Environment |
EN 50130-5
|
| IP Rating |
IP41 (EN 60529)
|
| IK Rating |
IK04 (EN 50102)
|
| Certifications & Approvals |
USA: UL 639
Italy: IMQ Canada: ULC CAN/ULC S306-03 Europe: EN 50131-1, EN 50131-2-2:2008 Grade 2, EN-ST-000085 France: AFNOR 26203926601 Sweden: INTYG Nr11-848 Netherlands: REQ 07223000/AA/00 |
| Dimensions |
5 x 2.8 x 2.3" (127 x 69 x 58 mm)
|
| Package Weight |
0.45 lb
|
| Box Dimensions (LxWxH) |
5.3 x 3 x 2.4"
|
