Description

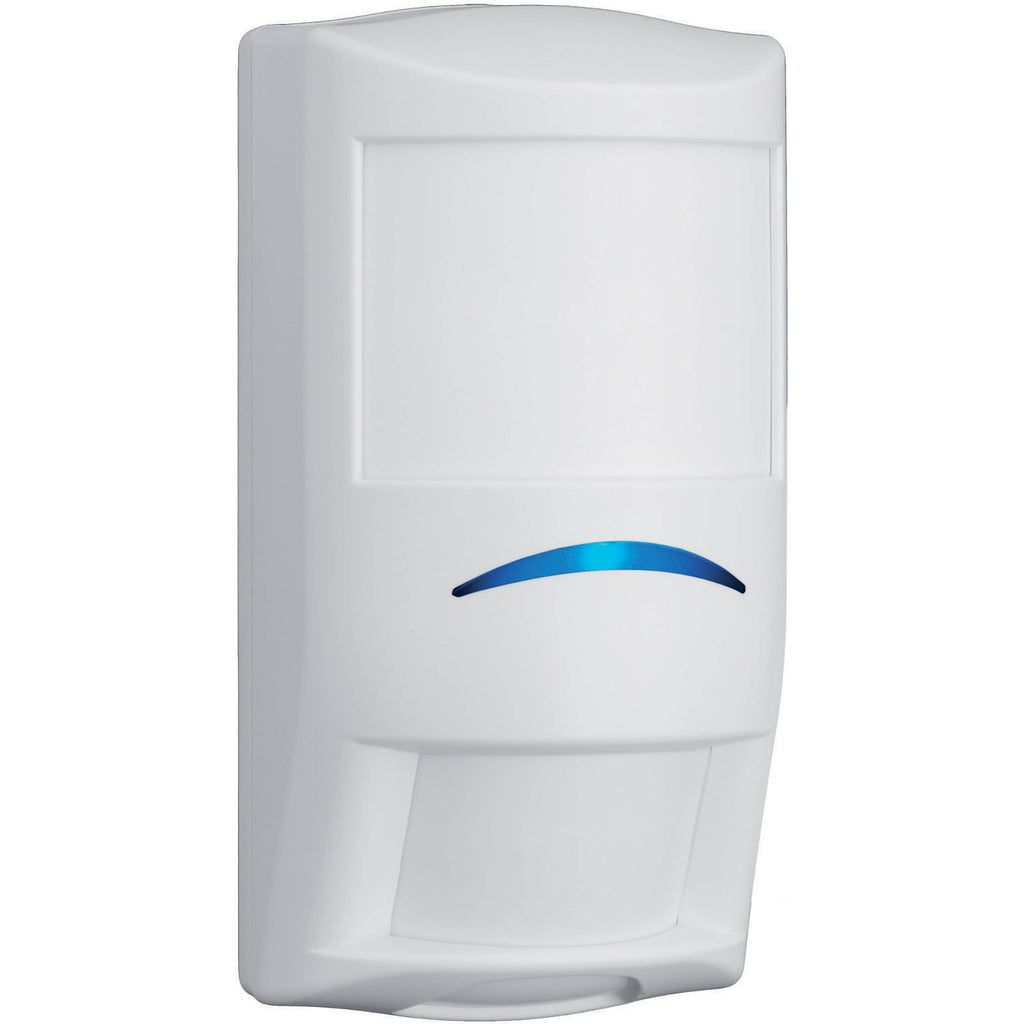

Bosch ISC-PDL1-W18G Overview

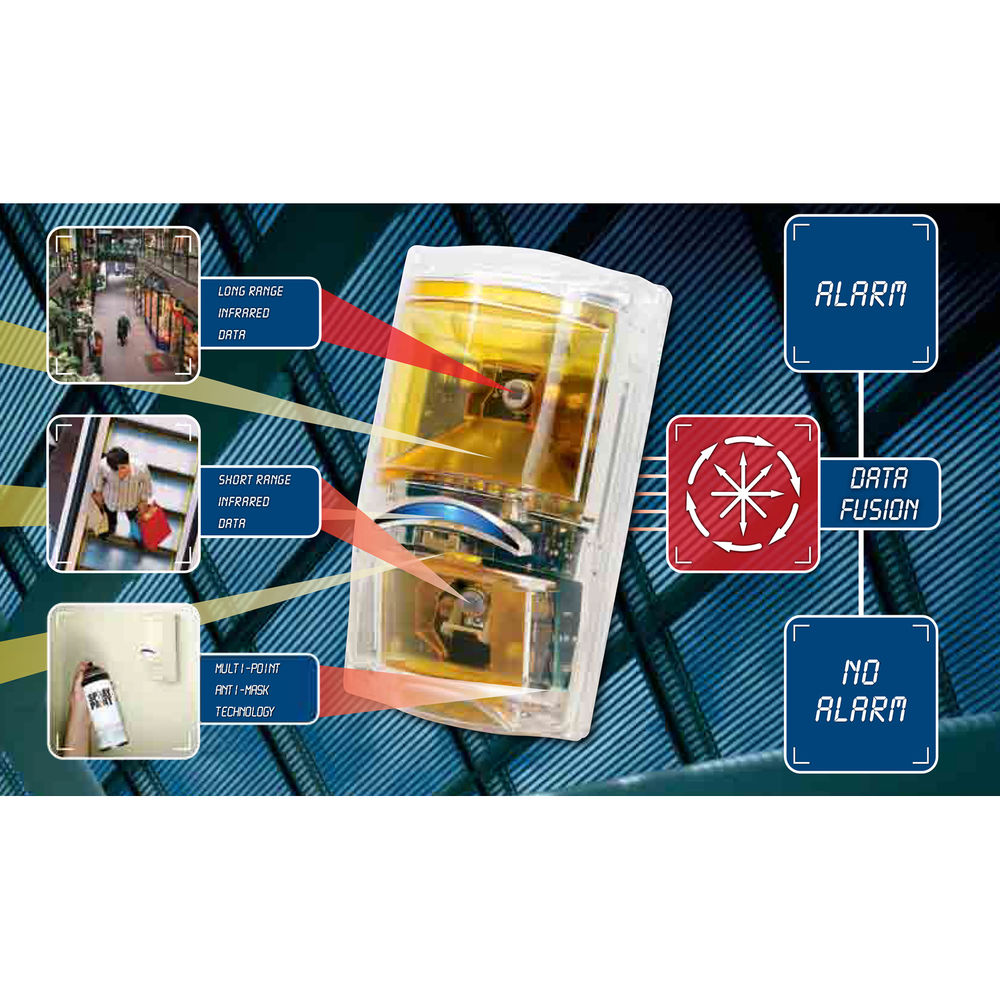

Featuring built-in PIR and microwave detection sensors and tri-focus optics technology, the ISC-PDL1-W18G Professional Series TriTech+ Motion Detector from Bosch uses optics with three focal lengths for long-, medium-, and short-range coverage. Its 90° field of view covers a 60 x 80' area, or a narrowed 25 x 33' area. Sensor Data Fusion technology analyzes signals from all five sensors including two pyroelectric sensors, a range adaptive finder, a room temperature sensor, and a white light level sensor to provide accurate detection.
The detector adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions, and features self-adjusting LED brightness to automatically adjust to surrounding light levels. There is a blue LED that indicates an alarm condition and activates during a remote walk test. The detector is immune to drafts, insects, and small animals under 10 lb, helping to reduce false alarms. Installation is quick with its self-locking enclosure and built-in bubble level.
In the Box
- Bosch ISC-PDL1-W18G Professional Series TriTech+ Motion Detector
- Limited 5-Year Manufacturer Warranty
Bosch ISC-PDL1-W18G Specs
| Operating Voltage |
9-15 VDC
|
| Maximum Current |
<25 mA
|
| Standby Current |
13 mA
|
| Relay Output |
Solid state relay, normally-closed (NC) contacts, power supervised, 3 W, 125 mA, 25 VDC, <10 Ohms resistance
|
| Tamper Output |
Normally-closed (NC) contacts (with cover on) rated 25 VDC, 125 mA maximum
Connect tamper circuit to 24-hour protection circuit |
| Trouble Output |
Solid state relay normally-closed (NC) contacts
|
| Relative Humidity |
0 to 95%, non-condensing
|
| Operating Temperature |
-20 to 130°F (-29 to 55°C)
32 to 120°F (0 to 49°C) (for UL-certificated installation) |
| LED Indicators |
TriTech Alarm: Blue
Microwave Detection: Yellow PIR Detection: Red |
| Pattern |
11-layer, 86 zones
|
| Coverage |
60 x 80' (18 x 25 m) or 25 x 33' (8 x 10 m)
|
| Frequency |
10.525 GHz
No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m |
| Mounting Height |
Recommended: 7 to 10' (2 to 3 m)
|
| Wire |
Recommended: 26 to 16 AWG
|
| Material |
High-impact ABS plastic
|
| Environment |
EN 50130-5
|
| IP Rating |
IP41 (EN 60529)
|
| IK Rating |
IK04 (EN 50102)
|
| Certifications & Approvals |
USA: UL639, cULus, FCC
Italy: IMQ Canada: IC Europe: CE EMC, LVD, R&TTE, RoHS, EN50131 France: AFNOR China: CCC 2009031901000559 Sweden: INTYG Brazil: ANATEL Netherlands: REQ Australia: C-Tick, SCEC |
| Dimensions |
5.3 x 2.8 x 2.3" (136 x 69 x 58 mm)
|
| Package Weight |
0.525 lb
|
| Box Dimensions (LxWxH) |
5.9 x 3 x 2.5"
|
