Description

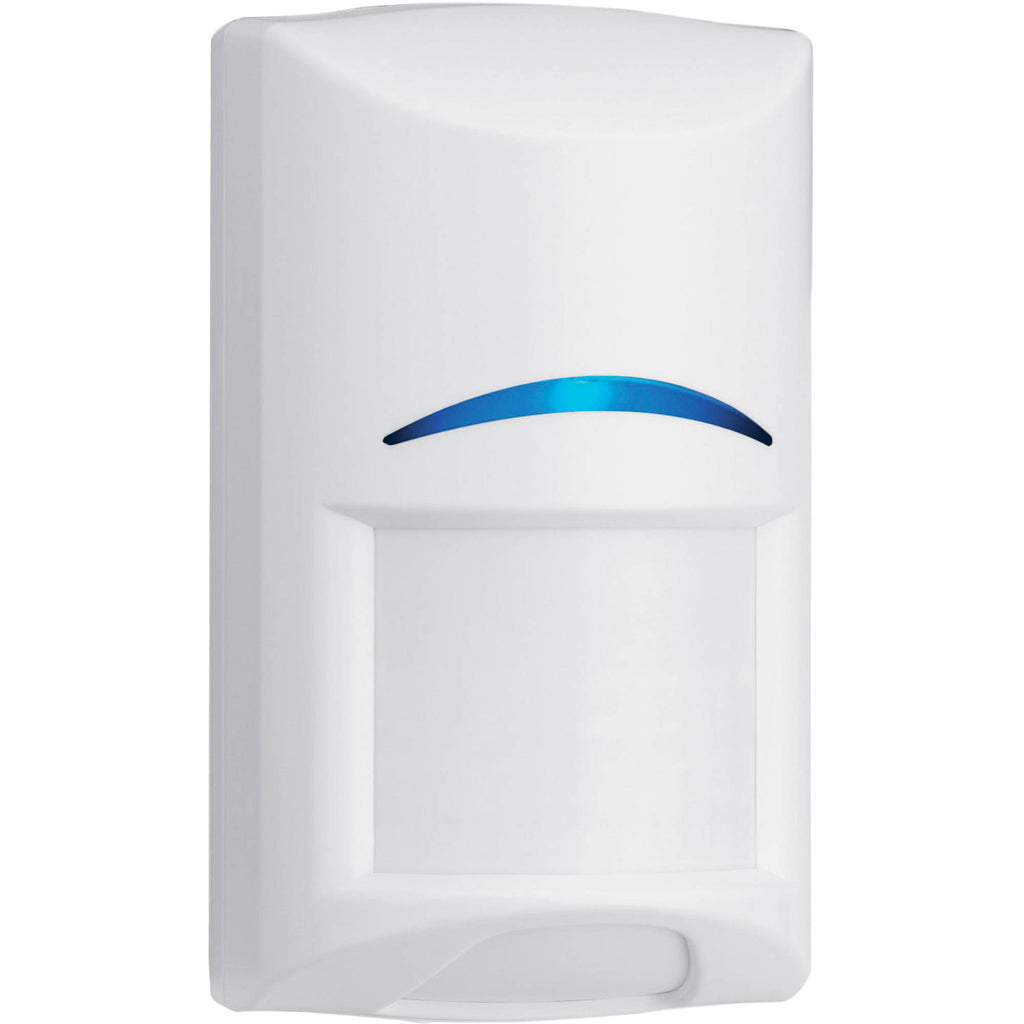

Bosch ISC-BDL2-WP6G Overview
Featuring built-in PIR and microwave detection sensors and advanced signal processing, the ISC-BDL2-WP6G Blue Line Gen2 Pet-Friendly TriTech Motion Detector from Bosch provides accurate motion detection within its wide, 94° field of view. It covers a 20 x 20' area and features a pet immunity function, which allows it to distinguish between humans' and pets' motion. It can negate signals caused by one or two pets, up to 100 lb each.

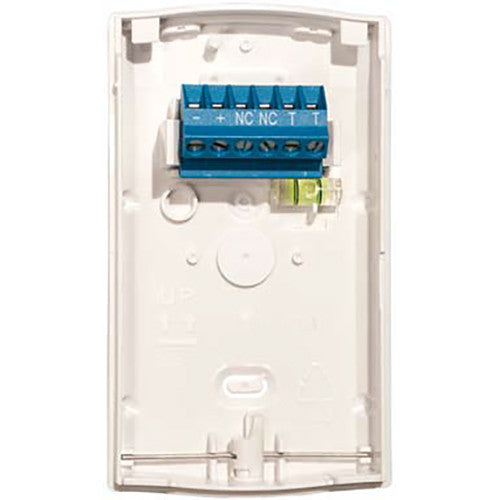

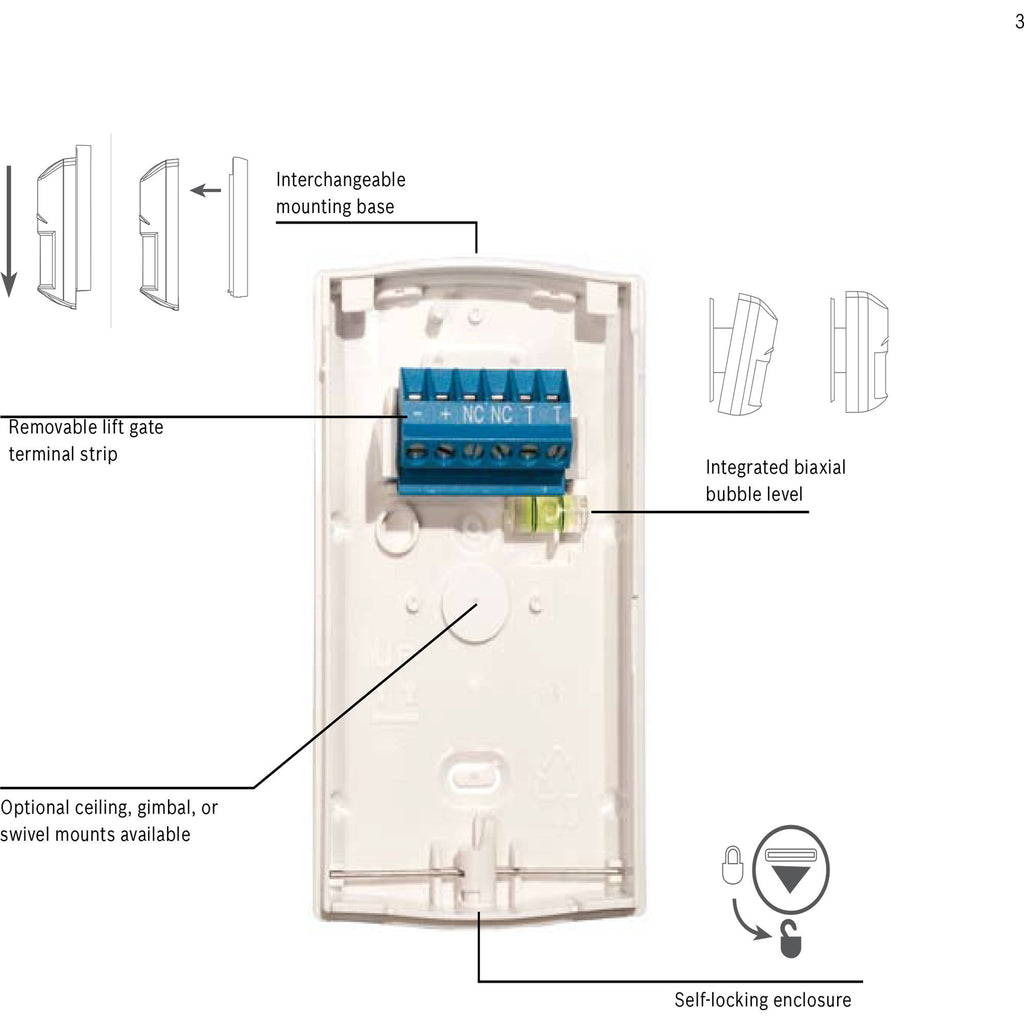

First Step Processing (FSP) technology analyzes motion, limiting false alarms. For increased reliability, the detector's sensitivity is automatically adjusted based on signal amplitude, polarity, slope, and timing. The detector also adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions. Installation is quick with its self-locking enclosure and built-in bubble level.
In the Box
- Bosch ISC-BDL2-WP6G Blue Line Gen2 Pet-Friendly TriTech Motion Detector
- Limited 5-Year Manufacturer Warranty
Bosch ISC-BDL2-WP6G Specs
| Current |
Alarm/Standby: 10 mA at 12 VDC
|
| Operating Voltage |
9-15 VDC
|
| Environment |
EN50130-5 Class II
|
| Relative Humidity |
0 to 95%, non-condensing
0 to 85%, non-condensing (for UL-listed installation) |
| Operating Temperature |
-20 to 130°F (-30 to 55°C)
32 to 120°F (0 to 49°C) (for UL-listed installation) |
| Relay Output |
Solid state, supervised, Form A normally-closed (NC) contacts rated for ?100 mA, 25 VDC, 2.5 W, <20 Ohms closed
|
| Tamper Output |
Normally-closed (NC) contacts (with cover on) rated for ?100 mA, 25 VDC, 2.5 W
Connect tamper circuit to 24-hour protection circuit |
| Coverage |
20 x 20' (6 x 6 m)
|
| Frequency |
10.525 GHz
No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m |
| Mounting Height |
Recommended: 7.5 to 9' (2.2 to 2.8 m)
|
| Material |
High-impact ABS plastic
|
| Selectivity |
Pet-friendly (on, off) for up to two pets up to 100 lb (45 kg)
|
| Certifications & Approvals |
USA: UL 639, FCC
Europe: EN50131-2-4 Grade 2, EN50130-5 Class II, EN60529, EN50102 (IP30, IK04), 2002/95/EC, CE EN50131 Norway: FG Belgium: INCERTd France: AFNOR Sweden: INTYG Netherlands: NCP Bulgaria: GD FSPP GODKJENNELSESBEVIS Canada: CAN/ULC S306-03, IC Brazil: ANATEL China: CCC GB10408.1, GB10408.9 |
| Dimensions |
4.2 x 2.4 x 1.7" (10.5 x 6.1 x 4.4 cm)
|
| Package Weight |
0.245 lb
|
| Box Dimensions (LxWxH) |
4.5 x 2.6 x 1.95"
|
