| ₹ 35055.0 includes GST and import duties. | |
| B2B customers can avail ₹ 5345.89 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

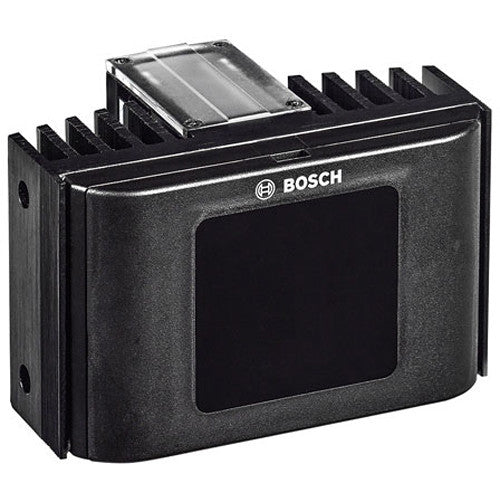

The IR Illuminator 5000 SR from Bosch operates on 940nm wavelength and is suitable for short-range indoor and outdoor surveillance applications. IR illumination improves night-time imaging, and reduces noise and bit rates. The illuminator comes with a set of interchangeable diffuser lenses which allow you to select beam patterns as per your requirement. The self-cleaning window reduces maintenance requirements. Specifically designed for energy-efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply (not included) for quick installations.
-
- Surface-mount high-power LEDs
- Improved thermal management
- Pressure equalization valve prevents thermal expansion and pressure cycling
- Integrated adjustable photocell
- Adjustable IR intensity
- Interchangeable beam pattern diffusers match beam to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
- Easy access to power and photo cell adjustment facilitates quick installation
UPC: 800549815420
In the Box
Bosch IR Illuminator 5000 SR (940nm)
- Set of Interchangeable Diffuser Lenses
- Limited 3-Year Warranty
| Optical | |
|---|---|
| Wavelength | 940 nm |
| IR | Adjustable IR intensity (10% to 100%) |
| Day/Night Switching | Photocell, sensitivity adjustable (20 to 70 lux) |
| Beam Angle | 10, 20, 30, 60, 80, and 95� |
| Operating Distance | 313' (95 m) @ 10� 186' (57 m) @ 20� 151' (46 m) @ 30� 93' (28 m) @ 60� 70' (21 m) @ 80� 46' (14 m) @ 95� Actual illumination distance achieved is dependent on camera and lens characteristics |
| Horizontal Field-of-View | 55' (17 m) @ 10� 65' (20 m) @ 20� 81' (25 m) @ 30� 107' (33 m) @ 60� 117' (36 m) @ 80� 101' (31 m) @ 95� |
| Certifications | |
|---|---|
| Standards | CE-EMC: EN 61547 (Lighting-Immunity) EN 55015 (Lighting-Emission) EN 62493( Lighting EMF) EN 50130-4 (Alarm EMC) Safety: CE-LVD EN-60598-1 (Luminaires-General) EN-60598-2-1 (Luminaires) LED: EN 62471 Risk group 2 (LED safety) Environmental: IEC / EN 60529 IP66 IEC / EN 62262 IK09 EN50130-5 Class IV (Alarm-environmental) EN 50581 RoHS USA cULus: UL 2108 Low Voltage Lighting Systems UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems CSA C22.2 No. 250.0-08 Luminaires FCC, Class B AUS: RCM AS / NZS CISPR 22 Class B |
| Environmental | |
|---|---|
| Operating Temperature | -58 to 122�F (-50 to 50�C) |
| Protection | IP66 |
| Power | |
|---|---|
| Supply | 12 to 32 VDC or 24 VAC �10% |
| Consumption | 13 W |
| Mechanical | |
|---|---|
| Housing | Robust anodized aluminum extrusion |
| Front Window | Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology |
| Mount | Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench) |
| Cable Length | 9' (3 m) |
| Dimensions | 4.33 x 2.68 x 2.99" (11 x 6.8 x 7.6 cm) Bracket: 4.33 x 4.92 x 1.38" (11 x 12.5 x 3.5 cm) |
| Weight | 1.6 lb (0.8 kg) Bracket: 0.44 lb (0.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.05 lb |
| Box Dimensions (LxWxH) | 8.9 x 8.1 x 6.6" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 34353.9 |
| 3-5 | ₹ 34003.35 |
| 5-10 | ₹ 33302.25 |
| 10+ | ₹ 32601.15 |
Bulk discount will be automatically applied during checkout based on quantity.
