Description

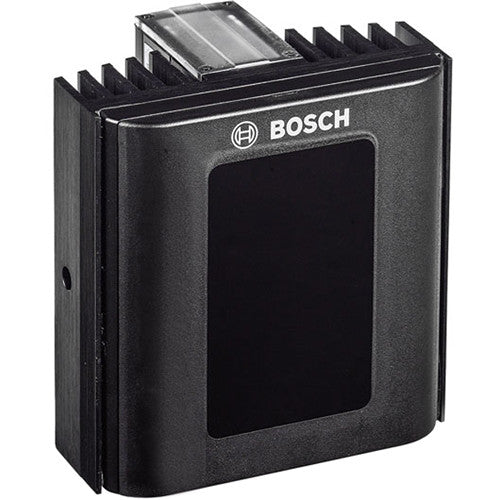

The IP IR Illuminator 5000 MRP from Bosch uses 940nm IR LEDs to provide invisible infrared light for security cameras, allowing IR cameras to capture clear images in complete darkness. A set of interchangeable diffuser lenses is included and allows you to select beam patterns with a specified field of view to fit your needs. The self-cleaning lens coating helps keep the illuminator functioning properly with minimal maintenance. The illuminator is housed in an IP66-rated enclosure, making it suitable for outdoor use. It can be powered directly via Power-over-Ethernet (PoE+).
- High-power 940nm LEDs
- Thermal management with pressure equalization valve prevents thermal expansion and pressure cycling
- Integrated adjustable photocell sensitivity (20 to 70 lux)
- Adjustable IR intensity (0 to 100%)
- Interchangeable beam pattern diffusers match field of view to match your camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
- Eco and boot power modes
- Tamper/shock sensor
- Integrated web interface for easy setup and adjustment
| Optical | |
|---|---|
| Wavelength | 940nm |
| IR Control | Adjustable IR intensity (0 to 100%) |
| Day/Night Switching | Photocell, sensitivity adjustable (20 to 70 lux) |
| Field of View | 10 (circular), 20, 30, 60, 80, and 95° (eliipticals) |
| IR Range | 443' / 135 m at 10° 262' / 80 m at 20° 213' / 65 m at 30° 131' / 40 m at 60° 98' / 30 m at 80° 66' / 20 m at 95° |
| Maximum HFOV | 77' / 24 m at 10° 93' / 28 m at 20° 114' / 35 m at 30° 152' / 46 m at 60° 165' / 50 m at 80° 143' / 44 m at 95° |
| Certifications | |
|---|---|
| Standards | CE-EMC: EN 55024 (IT equipment-Immunity) EN 55032 (IT equipment-emissions) EN 61547 (Lighting-Immunity) EN 55015 (Lighting-Emission) EN 62493( Lighting EMF) EN 50130-4 (Alarm EMC) Safety: CE-LVD EN-60598-1 (Luminaires-General) EN-60598-2-1 (Luminaires) LED: EN 62471 Risk group 2 (LED safety) Environmental: IEC / EN 60529 IP66 IEC / EN 62262 IK09 EN50130-5 Class IV (Alarm-environmental) EN 50581 RoHS USA cULus: UL 2108 Low Voltage Lighting Systems UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems CSA C22.2 No. 250.0-08 Luminaires FCC, Class B AUS: RCM AS / NZS CISPR 22 Class B |
| Environmental | |
|---|---|
| Operating Temperature | -58 to 122°F (-50 to 50°C) |
| IP Rating | IP66 |
| Power | |
|---|---|
| Supply | Power-over-Ethernet (PoE+) IEEE 802.3at-compliant |
| Consumption | 26 W |
| Mechanical | |
|---|---|
| Housing | Robust anodized aluminum extrusion |
| Front Window | Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology |
| Mount | Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench) |
| Cable Length | 3.3' / 1 m with connector |
| Dimensions | 4.3 x 4.5 x 3" / 110 x 115 x 76 mm Bracket: 4.3 x 4.9 x 1.4" / 11 x 12.5 x 3.5 cm |
| Weight | 2.3 lb / 1.1 kg Bracket: 0.44 lb / 0.2 kg |
In the Box
Bosch IP IR Illuminator 5000 MRP (940nm)
- Interchangeable Diffuser Lens Set
- Limited 3-Year Warranty
