Description

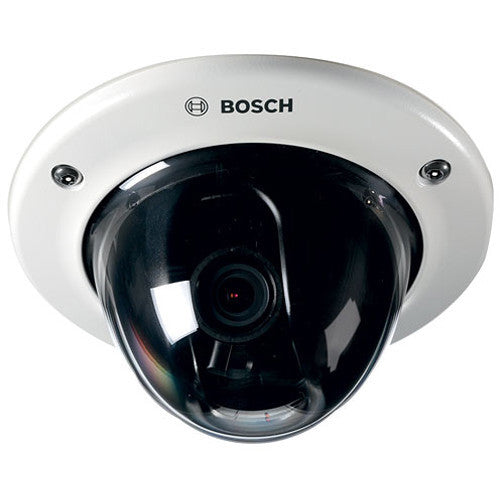

The FLEXIDOME IP Starlight 7000 VR 1080p Flush Mount Dome Camera from Bosch captures 1080p HD images at 60 fps. The camera simultaneously transfers IP video and simultaneously outputs analog video via an SMB connector. This hybrid functionality offers an easy migration path from an analog CCTV to an IP-based system. The camera features a mechanical filter that allows it to capture images in mono with illumination as low as 0.0011 lux and in color to 0.0075 lux. The filter can be switched remotely, or automatically via a light level sensor or contact input.
- Extended Dynamic Range Mode
- The extended dynamic range mode is based on a multiple-exposure process that captures more details in highlights and shadows in the same scene. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
- Content Based Imaging Technology
- CBIT (Content Based Imaging Technology) is used to improve image quality in all lighting conditions and to identify areas for enhanced processing. The camera examines the scene using Essential Video Analytics and provides feedback to retune the image processing. This provides better detail in the areas that matter and better all-round performance. Essential Video Analytics technology, for example, allows you to view moving objects in bright and dark areas of a scene.
- Intelligent Dynamic Noise Reduction
- The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and H.264 compression technology provide clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras. The camera provides the most usable image possible by cleverly optimizing the detail-to-bandwidth ratio.
- Area-Based Encoding
- Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Multiple Streams
- The multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.
- Regions of Interest and e-PTZ
- Regions of Interest (ROI) can be user defined. The remote e-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness. Intelligent Tracking can follow objects within the defined regions of interest. Intelligent Tracking can autonomously detect and track moving objects or the user can click on an object which the tracker will then follow.
- Storage Management
- Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- Insert a memory card into the card slot to store up to 2TB of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card.
- Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an email or SMS notification so you are always aware of abnormal events.
- Automatic Image Rotation
- The integrated gyro/accelerometer sensor automatically corrects the image orientation in steps of 90� if the camera is mounted at right angles or upside down. The sensor image can also be rotated manually through steps of 90�. To capture details in long hallways without loss of resolution, mount the camera at right angles. The image is displayed upright at full resolution on your monitor.
- Scene Modes
- Nine configurable modes are provided with the best settings for a variety of applications. Different scene modes can be selected for day or night situations.
- Hybrid Operation
- A surge-protected analog video output allows full hybrid operation. This means that high resolution IP video streaming and an analog video output are available simultaneously. The hybrid functionality offers a migration path from legacy CCTV to a modern IP-based system.
- True Day/Night Switching
- The camera is a true day/night camera with a mechanical filter for daytime color and night-time imaging while maintaining sharp focus under all lighting conditions. The filter can be switched remotely or automatically via a light level sensor or contact input.
- Data Security
- Special measures have been put in place for device access and data transport security. The three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS and firmware updates can also be protected with authenticated secure uploads. The on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support, provide protection from malicious attacks. The 802.1x network authentication with EAP/TLS, supports TLS 1.2 with updated cipher suites including AES 256 encryption.
- Video Security App
- The Bosch video security mobile app has been developed to enable anywhere access to HD surveillance images allowing you to view live images from any location. The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. It's like taking your control room with you. This app, together with the separately available Bosch transcoder, will allow you to fully utilize dynamic transcoding features so you can play back images even over low-bandwidth connections.
- System Integration
- The camera conforms to ONVIF Profile S, ONVIF Profile Q, and ONVIF Profile G specifications. Compliance with these standards guarantees interoperability between network video products regardless of manufacturer. Third-party integraters can access the internal feature set of the camera for integration into large projects. Visit the Bosch IPP (Integration Partner Program) website (ipp.boschsecurity.com) for more information.
In the Box
Bosch FLEXIDOME IP Starlight 7000 VR 1080p Flush Mount Dome Camera with 3-9mm
- Limited 3-Year Warranty
| Camera | |
|---|---|
| Sensor Type | 1/2.8" CMOS |
| Effective Pixels (H x V) | 1920 x 1080, 2MP (approx.) |
| Sensitivity | Color: 0.0075 lux Mono: 0.0011 lux |
| Dynamic Range | High Dynamic Range: 120 dB WDR (10-bit, 3x exposure) Measured According to IEC 62676 Part 5: 110 dB WDR |
| Application | Variant: Starlight mode (default) / HDR - extended dynamic mode |
| Frame Rate | 25/30/50/60 fps (PAL/NTSC for analog output) |
| Mirror Image | On / Off |
| Image Flip | On / Off |
| Rotate | 0� / 90� / 180� / 270� |
| LED | Enable/disable |
| Analog Output | Off, 4:3 letterbox, 4:3 crop, 16:9 |
| Positioning | Coordinates / mounting height |
| Wizard | Autofocus, remote zoom |
| Video | |
|---|---|
| Video Compression | H.264 (MP); MJPEG |
| Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Latency | <55 ms (1080p 60) |
| GOP Structure | IP, IBP, IBBP |
| Encoding | 1 to 50 (60) fps |
| Video Resolution | 1080p: 1920 x 1080 Upright Mode: 1080 x 1920 1.3 MP (4:3): 1280 x 960 480p SD Encoding: 704 x 480; Displayed: 854 x 480 432p SD: 768 x 432 288p SD: 512 x 288 240p SD Encoding: 352 x 240; Displayed: 432 x 240 144p SD: 256 x 144 |
| Functions | Color: Adjustable Picture Settings: Contrast, Saturation, Brightness White Balance: 2500 to 10000K, 4 automatic modes (basic, standard, sodium vapor, dominant color), manual mode, and hold mode ALC: ALC Level: Adjustable Saturation: Adjustable from peak to average Shutter: Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable Default shutter Day/Night: Auto (adjustable switch points), color, monochrome Enhance: Sharpness: Enhancement level selectable Backlight Compensation: On/off Contrast Enhancement: On/off Noise Reduction: Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments Intelligent Defog: Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Behavior Analysis | (IVA) Intelligent Video Analytics |
| Configuration | Silent VCA / Profile1/2 / scheduled / event triggered |
| Alarm | Rules (Combinable): Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search, Flow/counter flow |
| Web Object Filters | Duration, size, aspect ratio, speed, direction, color, object classes (4) |
| Tracking Modes | Standard (2D) tracking, 3D tracking, 3D people tracking, museum mode |
| Calibration | Automatic based on gyro / accelerometer data and camera height |
| Tamper Detection | Maskable |
| Input/Output | |
|---|---|
| Analog Video Out | CVBS (PAL/NTSC), 1 V p-p, SMB, 75 Ohms (surge protected) |
| Audio Connectors | 2 x 3.5 mm stereo jack |
| Audio Line Input | 12 kOhms typical, 1 Vrms max |
| Audio Line Output | 1 Vrms at 1.5 kOhms typical |
| Alarm Input | Input Activation Voltage: 5 VDC to 40 VDC (3.3 VDC with DC-coupled 22 kOhms pull-up resistor) |
| Alarm Output | Voltage: 30 VAC or 40 VDC Maximum 0.5 A continuous, 10 VA |
| Audio | |
|---|---|
| Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Software | |
|---|---|
| Discovery | IP Helper |
| Unit Configuration | Via web browser or Configuration Manager |
| Firmware Updates | Remotely programmable |
| Viewing | Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software |
| Local Storage | |
|---|---|
| RAM | 60 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (a memory card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording, alarm, events, schedule recording |
| Network | |
|---|---|
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.2, SSL, DES, 3DES |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S; GB/T 28181 |
| Optical | |
|---|---|
| Lens | 3-9mm AVF (Automatic Varifocal) SR lens (IR corrected) |
| Lens Mount | Board mounted |
| Adjustment | Motorized zoom/focus |
| Iris Control | Automatic iris control |
| Viewing Angle | Wide: 117� x 59� Tele: 37� x 21� |
| Environmental | |
|---|---|
| Operating Temperature | -22 to 122�F (-30 to 50�C) |
| Cold Start Temperature | -4�F (-20�C) |
| Storage Temperature | -58 to 158�F (-50 to 70�C) |
| Operating Humidity | 5 to 93% RH |
| Storage Humidity | up to 98% RH |
| Impact Protection | IK10 |
| Water/Dust Protection | IP 66 and NEMA Type 4X (with appropriate installation standards) |
| Power | |
|---|---|
| Input Voltage | PoE: 48 VDC nomina) 12 VDC: �10% (auxiliary) |
| PoE | IEEE Standard: 802.3af (802.3at Type 1) Power Level: Class 3 |
| Power Consumption | 7.2 W maximum |
| Current Draw | PoE: 200 mA maximum 12 VDC: 600 mA maximum |
| Certifications and Approvals | |
|---|---|
| Emission | EN 55032:2012 /AC2013 class B EN 50121-4:2006 /AC:2008 FCC: 47CFR15, class B (2015-10-1) |
| Immunity | EN 50130-4:2011 /A12014 (PoE, +12VDC), EN 50121-4:2006 /AC:2008 |
| Environmental | EN 50130-5:2011 Class IV |
| Safety | EN 62368-1:2014/AC:2015 EN 60950-1:2006 /A11:2009 /A1:2010 / A12:2011 /A2:2013 UL 62368-1, Ed. 2, Dec 1st, 2014 UL 60950-1, Ed. 2, October 14, 2014 CAN/CSA-C22.2 No. 62368-1 CAN/CSA-C22.2 No. 60950-1 |
| HD | SMPTE 274M-2008 |
| Certification | UL, CE, cULus, WEEE, PADS, RCM, EAC |
| ONVIF Conformance | EN 50132-5-2:2011/AC:2012, EN 62676-2-3:2014 |
| Mechanical | |
|---|---|
| Color | White (RAL9010) trim ring with black inner liner |
| Dimensions | 6.2 x 4.9" (158 x 124 mm) |
| Weight | 1.87 lb (0.85 kg) |
