Description
Bosch NDE-8703-RX Overview

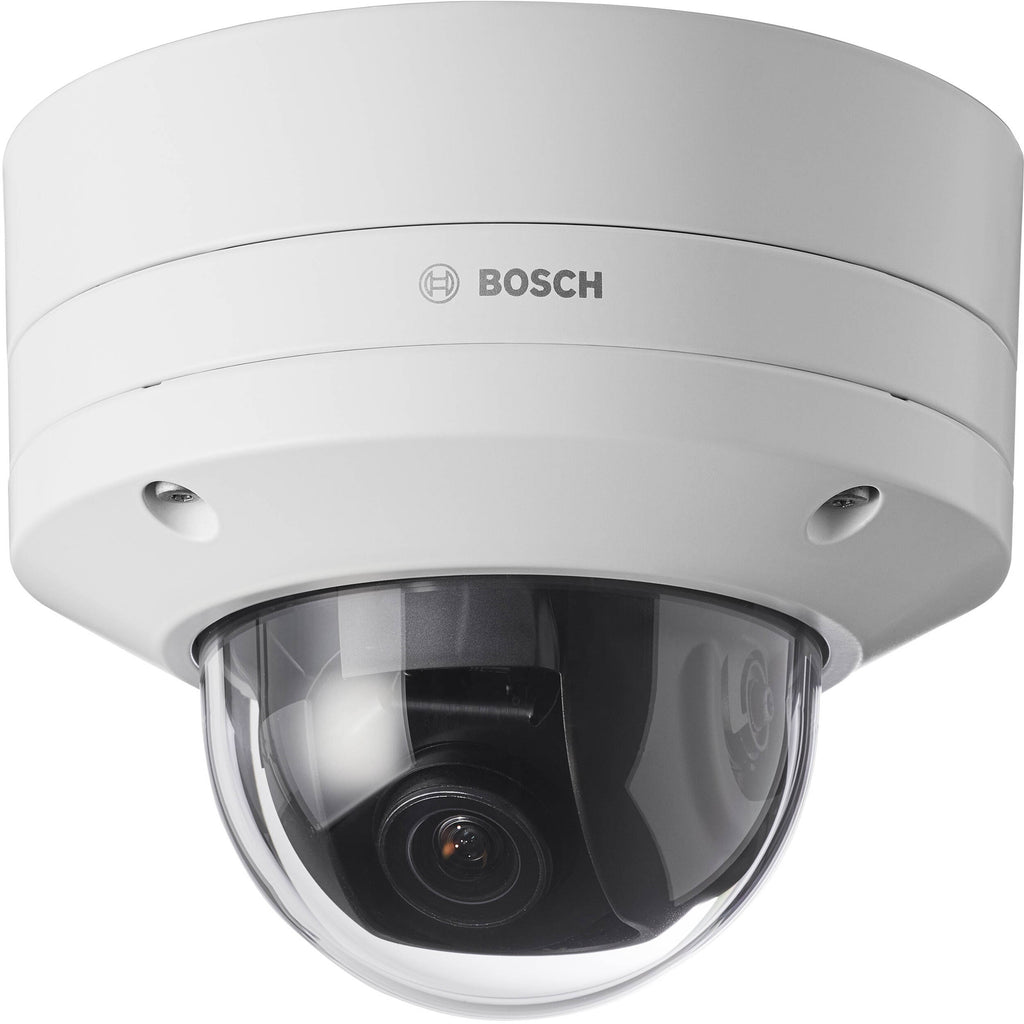

Designed for monitoring outdoor areas, the FLEXIDOME 8100i NDE-8703-RX 4MP Network PTRZ Dome Camera from Bosch uses a 1/1.8" CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. A 4.4-10mm motorized varifocal lens delivers a 110 to 48? horizontal angle of view. The camera features a 0 to 361? pan range, a -3 to 85? tilt range, ?95? rotation, and 2.3x optical zoom. Dual card slots each accept microSD/SDHC/SDXC cards for a storage total up to 2TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP69K-, NEMA 4X-, and IK11-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
IR cut filter for day and night functionality
Motorized zoom and focus control
Privacy masking for eight independent areas
Preinstalled Intelligent Video Analytics Pro (IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy) enables the system to reliably detect and track people/vehicles, and alert you when predefined alarms are triggered while minimizing false alarms
Camera Trainer program enables users to define objects of interest and generate detectors for them
Tracking modes include standard 2D tracking, 3D tracking, 3D people tracking, ship tracking, and museum mode
Additional features include electronic image stabilization (EIS), HDR, white balance, adjustable sharpness, backlight compensation, saturation, brightness, intelligent defog, image mirror/flip, rotation (90 to 270?), pixel counter, display stamping, and group of pictures (GOP) structure
End-to-end encryption
UPC: 800549374170
Items Included
- Bosch FLEXIDOME 8100i NDE-8703-RX 4MP Outdoor Network PTRZ Dome Camera
- T-20 Security Torx Bit
- Mini Screwdriver
- IP66 Rubber Grommet
- IP67 Grommet
- Network Patch Cable (1.64')
- 3 x Identification Labels
- Limited 1-Year Manufacturer Warranty
Additional Resources
Bosch NDE-8703-RX Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
4.4 to 10mm
|
| Field of View |
Horizontal: 110 to 48?
Vertical: 56 to 27? |
| Pan/Tilt |
Pan: 361? (0 to 361?)
Tilt: 88? (-3 to 85?) |
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45 (12 to 26VDC)
1x RJ45 (24VAC) |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4.1 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 4.4 to 10mm Lens:
Detect: 118 to 377' / 36.0 to 114.9 m Observe: 50 to 159' / 15.2 to 48.5 m Recognize: 25 to 79' / 7.6 to 24.1 m Identify: 12 to 40' / 3.7 to 12.2 m |
Exposure Control
| Shutter Speed |
1/15000 to 1/25 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.009 Lux (Color)
0.0007 Lux (Black and White) |
Lens
| Focal Length |
4.4 to 10mm
|
| Max Optical Zoom |
2.3x
|
| Field of View |
Horizontal: 110 to 48?
Vertical: 56 to 27? |
| Maximum Aperture |
f/1.3 to 1.97
|
Video
| Supported Protocols |
Video Streaming Protocol
APIPA/FTP/ICMP/SMTP/SNMP v1/v2c/v3 (MIB-II)/LLDP/ONVIF Profile T/ARP/HTTP/SRTP/SNTP/SOAP/SSL/TLS/CHAP/DiffServ/NTP/IGMP/DNS/UDP/QoS Layer 3 DiffServ/DHCP/TCP/ONVIF Profile G/ONVIF Profile M/IPv4/v6/RTP/UPnP/RTCP/iSCSI/RTSP/ONVIF Profile S |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2688 x 1520 up to 30.00 fps |
| Multi-View Streaming |
Yes
|
Control
| Camera Angle Adjustment |
Rotation: -95 to 95?
|
| Pan/Tilt |
Pan: 361? (0 to 361?)
Tilt: 88? (-3 to 85?) |
Networking
| Security |
Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
|
Interface
| Media/Memory Card Slot |
Dual Slot: microSD/microSDHC/microSDXC [2 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, L16
|
| Built-In Microphone |
No
|
| External Storage Options |
Cloud
|
System Integration
| Analytics |
Abandoned Object, Crowd Gathering, Entering/Exiting, Loitering, Motion Detection, Object Counting, Object Detection, Object Removal, People Counting, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Autofocus, Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
2 / 1
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45 (12 to 26VDC)
1x RJ45 (24VAC) |
| Power Consumption |
PoE: 7 to 12.95 W
12 to 26 VDC 7.2 to 19 W 24 VAC 6.9 to 12.6 W |
Environmental
| Operating Conditions |
-58 to 140?F / -50 to 60?C at 5 to 100% Humidity
|
| Storage Conditions |
-22 to 158?F / -30 to 70?C at 0 to 98% Humidity
|
| Impact Resistance |
Impact-Resistant (IK11)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP69K)
|
| Startup Temperature |
-40?F / -40?C
|
General
| Materials |
Aluminum, Polycarbonate
|
| Certifications |
BIS, CE, CSA, EN, EU, FCC, ICES, IEC, Kcc, NDAA, NEMA, RCM, REACH, RoHS, UL, VCCI, WEEE, cULus
|
| OS Compatibility |
Computer: Windows
Mobile: Android/iOS |
| Dimensions (W x H x D) |
6.9 x 5.7 x 6.9" / 175.3 x 144.8 x 175.3 mm
|
| Weight |
5.1 lb / 2.3 kg (Body Only)
|
