Description
- 2992 x 1680 Resolution at 30 fps
- Electronic Day/Night
- Two-Way Audio
- microSD Slot Supports Up to 2TB
- RJ45 Ethernet Connection with PoE
- H.264 and M-JPEG Dual Streaming
- Wide Dynamic Range (WDR)
- ONVIF Profile S Compliant

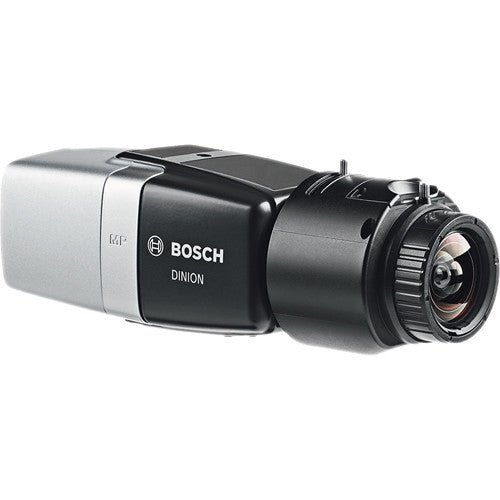

The DINION IP starlight 8000 MP 5MP Box Camera from Bosch features a 1/1.8" CMOS sensor to capture 2K video at up to 30 fps when combined with a compatible lens (available separately). This camera produces multi-megapixel full color video in low-light environments and delivers detailed monochrome images in extreme low-light conditions.
H.264 and M-JPEG dual streaming allows proper bandwidth allocation for recording and live viewing. PoE technology eliminates extra cable runs by supplying the power through the RJ45 Ethernet cable.
The camera has advanced image processing techniques including Intelligent Video Analysis (IVA), which tracks and focuses on relevant situations and stores the video in a structured format, allowing you to quickly retrieve the correct data. Intelligent Auto Exposure (IAE) offers front and back light compensation to provide a clear image. Intelligent Dynamic Noise Reduction (IDNR) saves bit-rate at the source and only uses bandwidth when needed.
- The camera features a 97 dB wide dynamic range for 5MP mode (plus an extra 16 dB when combined with Intelligent Auto Exposure)
- Intelligent Auto Exposure (IAE) automatically adjusts the exposure of the camera and provides front light and backlight compensation by automatically adapting to changing light conditions
- Intelligent Dynamic Noise Reduction (IDNR) reduces bit-rate by up to 50%
- H.264 and M-JPEG dual streaming
- Edge Recording
- Supports microSD cards up to 2TB for local alarm recording
- Bosch Video Management System and video security mobile app provide remote viewing
In the Box
Bosch DINION IP starlight 8000 MP 5MP Box Camera (No Lens)
- Power Connector
- Data/Alarm Connector
- Identification Labels
- C- to CS-Mount Adapter Ring
- Limited 3-Year Warranty
| Sensor | |
|---|---|
| Type | 1/1.8" CMOS |
| Total Image Sensor Pixels | 6.1 MP |
| Optical | |
|---|---|
| Lens Mount | CS mount (accepts C-mount lens with adapter ring, included; lens available separately) |
| Lens Connector | Standard 4-pin DC-iris connector |
| Focus Control | Motorized back-focus adjustment |
| Iris Control | Automatic iris control |
| Video Performance | |
|---|---|
| Dynamic Range | 5.5 MP (4:3) Mode: 97 dB WDR (97+16 dB with IAE) 5 MP (16:9) Mode: 97 dB WDR (97+16 dB with IAE) 1080p Mode: 103 dB WDR (103+16 dB with IAE) |
| Sensitivity | 3200 K, 89% Reflectivity, 30% IRE, f/1.2 Color 5 MP Mode: 0.0121 lux Color 1080p Mode: 0.00825 lux Mono 5 MP Mode: 0.004 lux Mono 1080p Mode: 0.00275 lux |
| Video Streaming | |
|---|---|
| Video Compression | H.264, MJPEG |
| Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth Regions of Interest (ROI) |
| Overall IP Delay | 120 ms minimum, 340 ms maximum |
| GOP Structure | IP, IBP, IBBP |
| Encoding | Interval: 1 to 30 (25) fps |
| Encoder | Regions: Up to 8 areas with encoder quality settings per area |
| Resolution | |
|---|---|
| Video Resolution | 5.5 MP (16:9): 2992 x 1680 5 MP (4:3): 2704 x 2032 1080p HD: 1920 x 1080 720p HD: 1280 x 720 Upright 9:16 (Cropped): 400 x 720 D1 4:3 (Cropped): 704 x 480 480p SD: Encoding: 704 x 480; Displayed: 854 x 480 432p SD: 768 x 432 288p SD: 512 x 288 240p SD: Encoding: 352 x 240; Displayed: 432 x 240 144p SD: 256 x 144 |
| Functions | |
|---|---|
| Day/Night | Color, monochrome, auto |
| Picture Adjustment | Settings: Contrast, saturation, brightness |
| White Balance | 2500 to 10,000 K, 4 automatic modes (Standard, SON/SOX, Basic, Dominant color), manual and hold mode |
| Shutter | Automatic Electronic Shutter (AES) Fixed (selectable) Default shutter |
| Backlight Compensation | Off, auto, Intelligent Auto Exposure (IAE) |
| Noise Reduction | Intelligent Dynamic Noise Reduction (IDNR) with separate temporal and spatial adjustments |
| Contrast Enhancement | On/off |
| Sharpness | Sharpness enhancement level selectable |
| Privacy Masking | Eight independent areas, fully programmable |
| Video Motion Analysis | Intelligent Video Analysis (IVA) |
| User Programmable Modes | 9 modes |
| Other Functions | Image flip, Pixel counter, Video watermarking, Display stamping |
| Streaming Performance | |
|---|---|
| Standard | Audio G.711, 8 kHz L16, 16 kHz AAC-LC, 48 kHz AAC-LC, 80 kHz |
| Signal-to-Noise Ratio (SNR) | > 50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Input/Output | |
|---|---|
| Analog Video Output | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ohms (service only) |
| Audio Line Input | 1 VRMS maximum, 18 kOhms typical |
| Audio Line Output | 0.85 VRMS at 1.5 kOhms typical |
| Audio Connectors | 1/8" (3.5 mm) mono jack |
| Alarm Input | 2 x inputs |
| Activation | Alarm Input: 5 VDC nominal; 40 VDC maximum (DC-coupled with 50 kOhms pull-up resistor to 3.3 VDC) (< 0.5 V is low; > 1.4 V is high) |
| Alarm Output | 1 x output |
| Voltage Output | Alarm: 30 VAC or 40 VDC maximum Maximum 0.5 A continuous, 10 VA(resistive load only) |
| Ethernet | RJ45 with PoE |
| Data Port | RS-232/422/485 |
| Local Storage | |
|---|---|
| RAM | Internal: 10 sec pre-alarm recording |
| Memory Card Slot | Up to 32 GB microSDHC Up to 2 TB microSDXC card |
| Recording | Continuous recording, ring recording, alarm/events/schedule recording |
| Network | |
|---|---|
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | ONVIF Profile S, Auto-MDIX |
| Software | |
|---|---|
| Unit Configuration | Via Web browser or configuration manager |
| Firmware Updates | Remotely programmable |
| Software | Viewer: Web browser, Bosch video client, or third party software |
| System Requirements | Computer with Windows XP/Vista/7 operating system, network access, and Microsoft Internet Explorer version 9.0 or later (32-bit) Or Computer with network access and reception software, for example Bosch Video Client and Bosch Video Management System |
| Power | |
|---|---|
| Power Supply | 12 VDC PoE 48 VDC nominal |
| Current Consumption | 750 mA (12 VDC) 200 mA (PoE 48 VDC) |
| Power Consumption | 9 W |
| PoE | IEEE 802.3af (802.3at Type 1) Class 3 |
| Environmental | |
|---|---|
| Operating Temperature | -4 to 122�F (-20 to 50�C) |
| Storage Temperature | -22 to 158�F (-30 to 70�C) |
| Operating Humidity | 20 to 93% RH |
| Storage Humidity | Up to 98% RH |
| Standards | |
|---|---|
| Emission | EN 55022 class B (2010), +AC (2011) FCC: 47 CFR 15, class B (2012-10-1) |
| Immunity | EN 50130-4 (PoE, +12 VDC) (2011) EN 50121-4 (2006), +AC: (2008) Chapters 7 & 8 (mains voltage supply requirement) not applicable. If the system in which this camera is used needs to comply with this standard, then the power supply used must comply with the same. |
| Alarm | EN 50130-5 class II (2011) |
| Safety | EN 60950-1 UL 60950-1 (2nd edition) CAN/CSA-C 22.2 No. 60950-1 |
| Vibration | Camera with 1.1 lb (0.5 kg) lens as per IEC 60068-2-6 (5 m/s2, operational) |
| HD | SMPTE 296M-2001 (Resolution: 1280 x 720) SMPTE 274M-2008 (Resolution: 1920 x 1080) |
| Color | Representation: ITU-R BT.709 |
| ONVIF Conformance | EN 50132-5-2; IEC 62676-2-3; CE; UL; FCC; CSA |
| Certifications | UL, FCC |
| Mechanical | |
|---|---|
| Tripod Mount | 1/4"-20 UNC on bottom and top |
| Dimensions | 3.1 x 2.6 x 5.5" (7.8 x 6.6 x 14 cm) |
| Weight | 1.9 lb (0.86 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.1 x 3.9" |
