Description

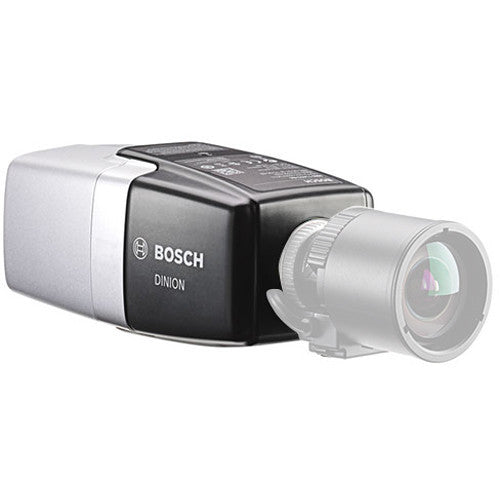

The DINION IP Starlight 6000 720p Hybrid Box Camera from Bosch captures 720p HD images at up to 60 fps. The camera offers IP video and simultaneously outputs analog video via an SMB connector. This hybrid functionality offers a migration path from an analog CCTV to an IP-based surveillance system. The camera features a mechanical filter that allows it to capture images in mono with illumination as low as 0.0008 lux and in color to 0.0069 lux. The filter can be switched remotely, or automatically via a light level sensor or contact input.
- Content Based Imaging Technology
- CBIT (Content Based Imaging Technology) is used to improve image quality in all lighting conditions and identify areas for enhanced processing. The camera examines the scene using Essential Video Analytics and provides feedback to re-tune image processing. This provides better detail in the areas that matter and better all-round performance. Essential Video Analytics technology, for example, allows you to view moving objects in bright and dark areas of a scene.
- Essential Video Analytics
- Built-in video analysis reinforces the Intelligence-at-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is suitable for use in controlled environments with limited detection ranges. The system detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules reduces false alarms. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver forensic evidence and optimize business processes based on people counting or crowd density information. Just enter the height of the camera and the internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
- Intelligent Dynamic Noise Reduction
- The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly, reducing bandwidth and storage by up to 50% compared to other H.264 cameras.
- Area-Based Encoding
- Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Multiple Streams
- The innovative multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.
- Regions of Interest and E-PTZ
- Regions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness. Intelligent Tracking can follow objects within the defined regions of interest. Intelligent Tracking can autonomously detect and track moving objects or the user can click on an object which the tracker will then follow.
- Storage Management
- Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- Insert a memory card into the card slot to store up to 2TB of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card.
- Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an email or SMS notification so you are always aware of abnormal events.
- Simplified Installation
- Power for the camera can be supplied via a Power-over-Ethernet-compliant network cable connection. With this configuration, only a single cable is required to view, power, and control the camera. Using PoE makes installation easier and more cost effective, as cameras do not require a local power source. The camera can also be supplied with power from 12 VDC power supplies. To increase system reliability, the camera can be simultaneously connected to both PoE and 12 VDC supplies. If one power source fails, the other source takes over without a reboot, providing power redundancy.
- Automatic Image Rotation
- The integrated gyro/accelerometer sensor automatically corrects image orientation in steps of 90� if the camera is mounted at right angles or upside down. The sensor image can also be rotated manually through steps of 90�. To capture details in long hallways without loss of resolution, mount the camera at right angles. The image is displayed upright at full resolution on your monitor.
- Scene Modes
- Nine configurable modes are provided with the best settings for a variety of applications. Different scene modes can be selected for day or night situations.
- Hybrid Operation
- A surge-protected analog video output allows full hybrid operation. This means that high resolution IP video streaming and an analog video output are available simultaneously. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.
- True Day/Night Switching
- The camera is a true day/night camera with a mechanical filter for daytime and night-time imaging while maintaining sharp focus under varied lighting conditions. The filter can be switched remotely or automatically via a light level sensor or contact input.
- Data Security
- Three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS, and firmware updates can also be protected with authenticated secure uploads. The on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support, are intended to provide protection from malicious attacks. The 802.1x network authentication with EAP/TLS, supports TLS 1.2 with updated cipher suites including AES 256 encryption.
- Video Security App
- The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. It's like taking your control room with you. This app, together with the separately available Bosch transcoder, will allow you to fully utilize our dynamic transcoding features so you can play back images even over low-bandwidth connections.
- System Integration
- The camera conforms to the ONVIF Profile S, ONVIF Profile Q, and ONVIF Profile G specifications. Compliance with these standards provides interoperability between network video products regardless of manufacturer. Third-party integrators can access the internal feature set of the camera for integration into large projects. Visit the Bosch IPP (Integration Partner Program) website (ipp.boschsecurity.com) for more information.
UPC: 800549803656
In the Box
Bosch DINION IP Starlight 6000 720p Hybrid Box Camera (No Lens)
- Limited 3-Year Warranty
| Camera | |
|---|---|
| Sensor Type | 1/2.8" CMOS |
| Effective Pixels (H x V) | 1280 x 720 |
| Sensitivity | Color 0.0069 lux Mono 0.0008 lux 3100K, reflectivity 89%, 1/25, f/1.2, 30IRE) |
| Dynamic Range | High Dynamic Range: 120 dB WDR (10-bit, 3x exposure) 110 dB WDR measured according to IEC 62676 Part 5 |
| Application | Variant: Starlight mode (default) / HDR - extended dynamic mode |
| Frame Rate | Base 25/30/50/60 fps (PAL/NTSC for analog output) |
| Mirror Image | On / Off |
| Image Flip | On / Off |
| Rotate | 0/90/180/270� |
| LED | Enable/disable |
| Analog Output | Off, 4:3 letterbox, 4:3 crop, 16:9 |
| Positioning | Coordinates / mounting height |
| Wizard | Autofocus, remote zoom |
| Video | |
|---|---|
| Video Compression | H.264 (MP); MJPEG |
| Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Latency | <55 ms (1080p 60) |
| GOP Structure | IP, IBP, IBBP |
| Encoding Rate | 1 to 50 (60) fps |
| Video Resolution | 720p HD: 1280 x 720 Upright Mode 720p: 720 x 1280 D1 4:3 (Cropped): 704 x 480 480p SD Encoding: 704 x 480; Displayed: 854 x 480 432p SD: 768 x 432 288p SD: 512 x 288 240p SD Encoding: 352 x 240; Displayed: 432 x 240 144p SD: 256 x 144 |
| Functions | Color: Adjustable Picture Settings: Contrast, Saturation, Brightness White Balance: 2500 to 10000K, 4 automatic modes (basic, standard, sodium vapor, dominant color), manual mode, and hold mode |
| Level Control | Adjustable ALC Saturation: Adjustable from peak to average Shutter: Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable Default shutter Day/Night: Auto (adjustable switch points), color, monochrome |
| Video Enhancement | Sharpness: Enhancement level selectable Backlight Compensation: On/off Contrast Enhancement: On/off Noise Reduction: Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments Intelligent Defog: Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Behavior Analysis | Essential Video Analytics |
| Configuration | Silent VCA / Profile1/2 / scheduled / event triggered |
| Alarm | Rules (Combinable): Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search |
| Web Object Filters | Duration, size, aspect ratio, speed, direction, color, object classes (4) |
| Tracking Modes | Standard (2D) tracking, 3D tracking, 3D people tracking, museum mode |
| Calibration | Automatic based on gyro / accelerometer data and camera height |
| Tamper Detection | Maskable |
| Detection | Audio |
| Input/Output | |
|---|---|
| Analog Video Out | CVBS (PAL/NTSC), 1 V p-p, SMB, 75 Ohms (surge protected) |
| Audio Connectors | 2 x 3.5 mm stereo jack |
| Audio Line Input | 12 kOhms typical, 1 Vrms max |
| Audio Line Output | 1 Vrms at 1.5 kOhms typical |
| Alarm Input | Connectors: Clamp (x2 non-isolated closing contact) Input Activation Voltage: 5 VDC to 40 VDC (3.3 VDC with DC-coupled 22 kOhms pull-up resistor) |
| Alarm Output | Connector: Clamp Voltage: 30 VAC or 40 VDC Maximum 0.5 A continuous, 10 VA |
| Ethernet | RJ45 |
| Data Port | RS?232/422/485 |
| Audio | |
|---|---|
| Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Software | |
|---|---|
| Unit Title | Discovery: IP Helper |
| Unit Configuration | Via web browser or Configuration Manager |
| Firmware Updates | Remotely programmable |
| Viewing | Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software |
| Local Storage | |
|---|---|
| RAM | Internal: 60 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (a memory card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording, alarm, events, schedule recording |
| Network | |
|---|---|
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.2, SSL, DES, 3DES |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S; GB/T 28181 |
| Optical | |
|---|---|
| Lens Mount | CS-mount (C-mount with adapter ring) |
| Lens Connector | Standard 4-pin DC-iris connector |
| Lens Type | Manual and DC-Iris auto-detect with override DC-iris drive maximum 50 mA continuous |
| Lens Control | Wizard from web page or camera button |
| Environmental | |
|---|---|
| Operating Temperature | -4 to 131�F (-20 to 55�C) |
| Storage Temperature | -22 to 158�F (-30 to 70�C) |
| Operating Humidity | 20 to 93% RH |
| Storage Humidity | up to 98% RH |
| Power | |
|---|---|
| Input Voltage | Power-over-Ethernet (48 VDC nominal) and/or +12 VDC �10% (auxiliary) |
| PoE | IEEE 802.3af (802.3at Type 1) Class 3 |
| Power Consumption | 7.2 W maximum |
| Current Draw | PoE: 200 mA maximum 12 VDC: 600 mA maximum |
| Certifications and Approvals | |
|---|---|
| Emission | EN 55032:2012 /AC2013 class B, EN 50121-4:2006 /AC:2008, FCC: 47CFR15, class B (2015-10-1) |
| Immunity | EN 50130-4:2011 /A12014 (PoE, +12VDC), EN 50121-4:2006 /AC:2008 |
| Environmental | EN 50130-5:2011 Class II |
| Safety | EN 62368-1:2014/AC:2015 EN 60950-1:2006 /A11:2009 /A1:2010 /A12:2011 /A2:2013 UL 62368-1, Ed. 2, Dec 1st, 2014 UL 60950-1, Ed. 2, October 14, 2014 CAN/CSA-C22.2 No. 62368-1 CAN/CSA-C22.2 No. 60950-1 |
| HD | SMPTE 296M-2001 |
| Certification | UL, CE, cULus, WEEE, PADS, RCM, EAC |
| ONVIF Conformance | EN 50132-5-2:2011/AC:2012, EN 62676-2-3:2014 |
| Mechanical | |
|---|---|
| Tripod Mount | Bottom (isolated) and top 1/4" 20 UNC |
| Color | RAL 9007 Metallic titanium |
| Dimensions | 3.1 x 2.6 x 5.5" (7.8 x 6.6 x 14 cm) without lens |
| Weight | 1.52 lb (0.68 kg) without lens |
| Packaging Info | |
|---|---|
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 7.8 x 4.0 x 3.8" |
