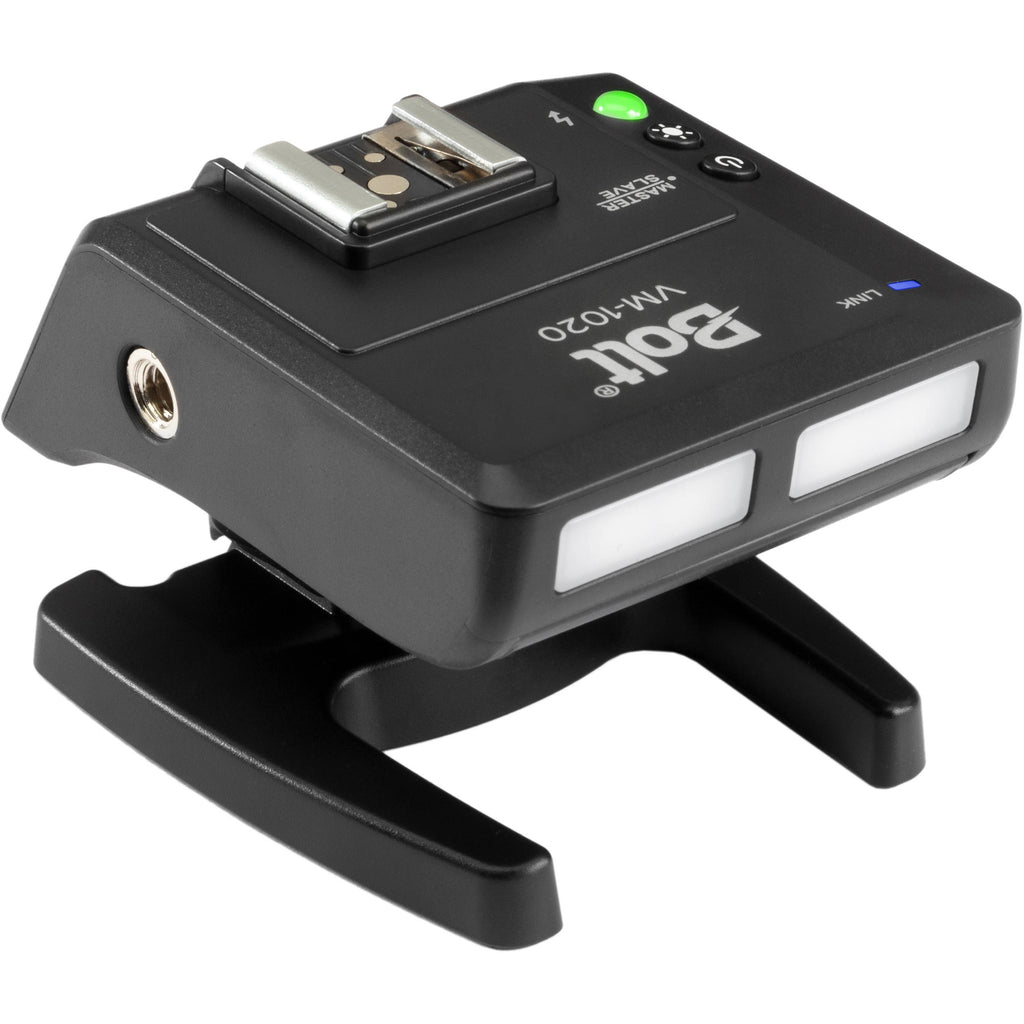

Designed for use with the VM-1000S TTL Macro Ring Flash Set for Sony, the VM-1020S TTL Transceiver for VM-1000S from Bolt allows you to trigger the flash, take advantage of TTL auto-exposure, as well as control the power level manually from 1/128 to 1/1 at distances up to 328'.

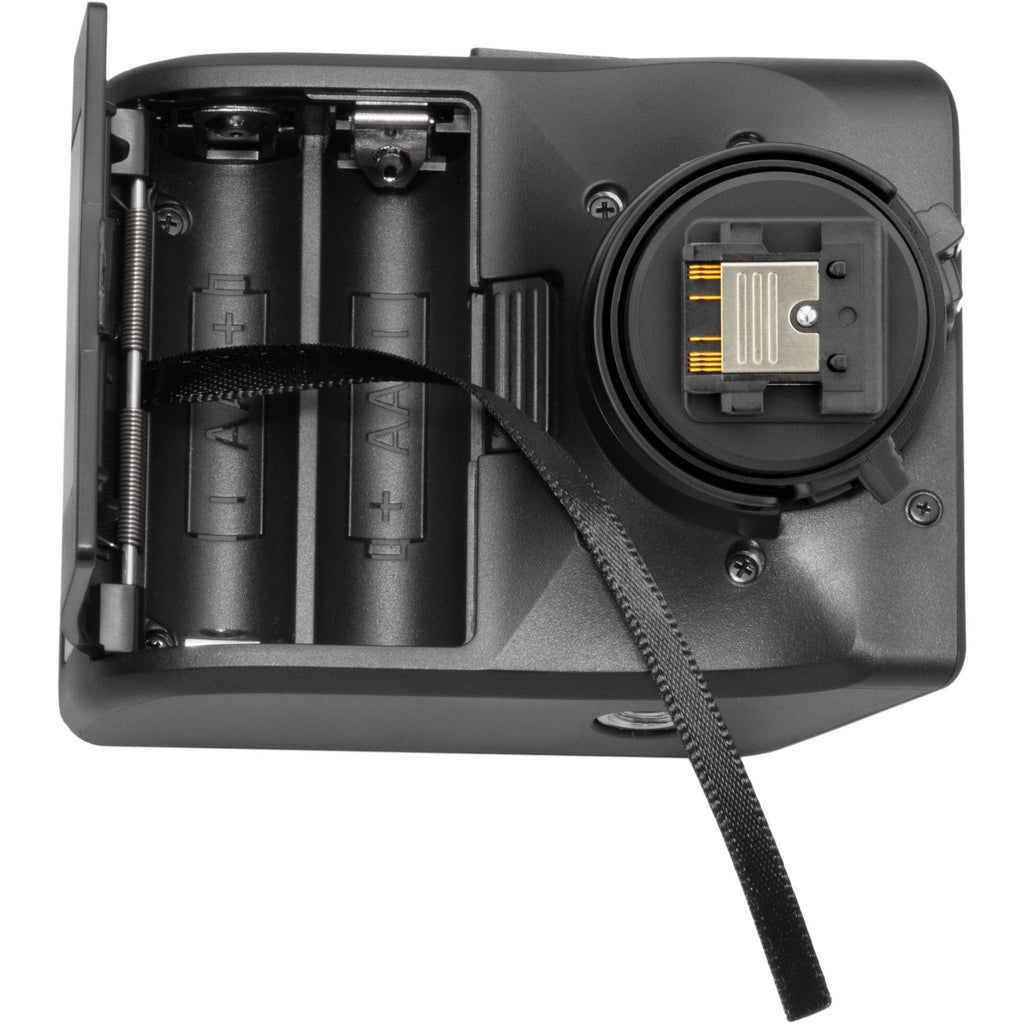

Working within Sony's TTL flash exposure system, the Transceiver has 16 channels to prohibit interference from other shooters using radio systems. The Transceiver can control and trigger one or multiple VM-1010S Macro Flash units attached to the system's mounting ring, or off-camera using the 2.4 GHz wireless radio operating frequency. Since it has a dedicated hot shoe, you can mount a Sony flash on it and shoot on-camera while controlling off-camera flashes. The Transceiver has 3 groups. Assigning ring flashes to separate groups allows you to light different parts of a large scene or work three individual setups from the camera. The Transceiver supports High-Speed Sync up to 1/8000 sec for controlling bright backgrounds, shooting at wide apertures, or creating an appealing background blur for creative effect. The VM-1020S runs on two easily-sourced AA batteries.
Triggering and Control from 328' Away
The Transceiver allows you to trigger the flash off-camera at distances up to 328'. The transceiver has 16 channels and 3 groups whose power and ratios between them can be adjusted.
Speedlight Compatibility
Besides triggering and controlling the Macro Ring Flash via its built-in receiver, the Transceiver can also be used with a VM-1020S Speedlight. However, since the VM-1020S flash does not have a compatible built-in receiver, a Transceiver is needed for each Sony flash unit.
Mounting

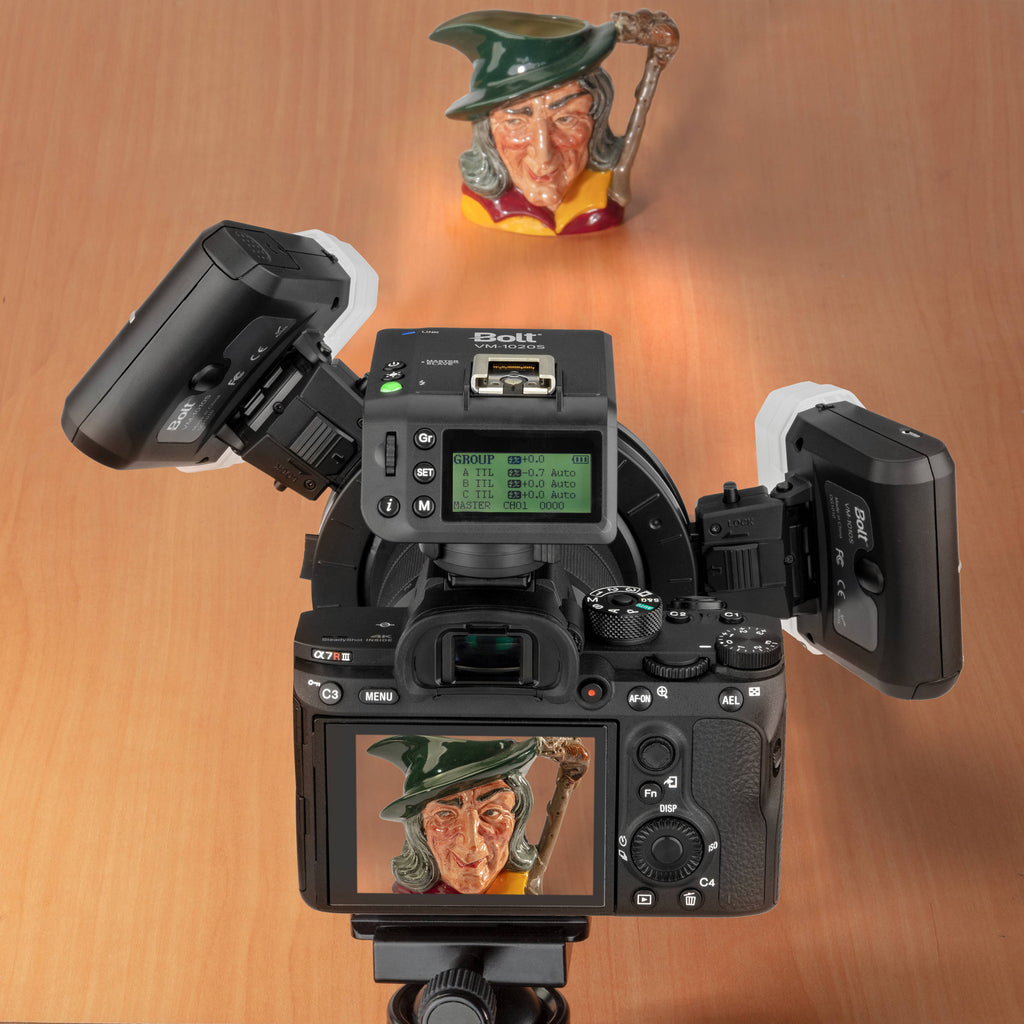

Mount the Transceiver to your camera for control of the macro system via its TTL foot and mount a compatible strobe to the transceiver via its upper hot shoe.
LED Focus Assist/Flash Test
The LED focus assist/flash test is a great way to help your camera focus and confirm everything is working correctly with your flash setup. Fire all the flashes at the same time to verify your flashes are working properly. Alternatively, you can use the LEDs as modeling lights to preview the lighting from the VM-1010S flash. This gives you one-button ease to check your rig.
Triggering Studio Strobes

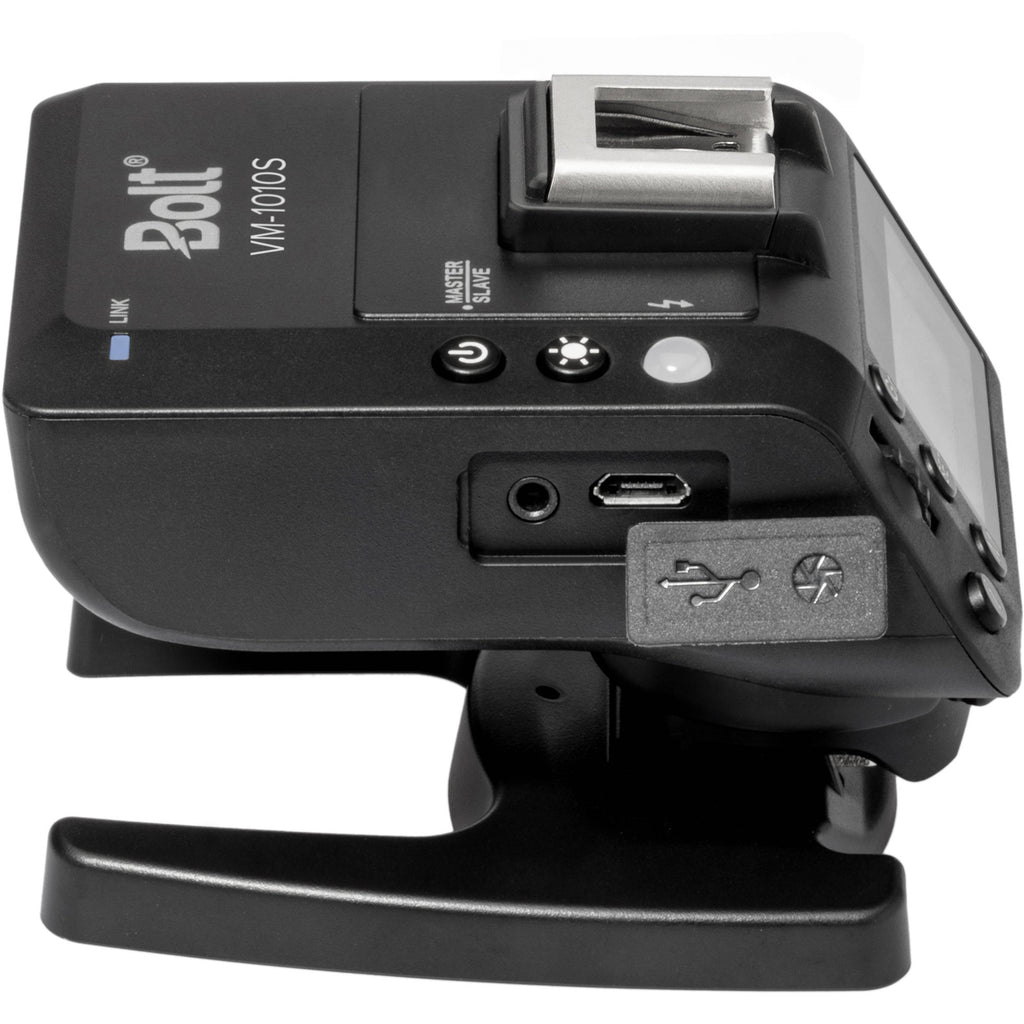

Using the transceiver's 2.5mm sync port, you can set up and use off-camera strobes by using one transceiver as trigger and another as a wireless receiver. Fire studio strobes with fewer cables in the way.
Sleep Mode
Sleep mode allows the transceiver to power down and save battery power after being idle. This will ensure you won't waste any juice, so you can keep shooting. Waking the system is as easy as the press of a button.
![]()
UPC: 847628021617
Table of Contents
- Description
- Triggering and Control from 328' Away
- Speedlight Compatibility
- Mounting
- LED Focus Assist/Flash Test
- Triggering Studio Strobes
- Sleep Mode
Bolt VM-1020S Specs
Wireless
| Channels | 16 (Normal) |
| Groups | 3 |
| Wireless Range | 328' / 99.97 m |
| Radio Frequency | 2.4 GHz |
General
| Control Modes | Manual, TTL |
| Sync Speed | 1/8000 Sec |
| Power Settings | 1/128 to 1/1 (1/3-Stop Intervals) |
Mounting
| Bottom Mount | Hot Foot |
| Top Mount | Hot Shoe |
Environmental
| Operating Temperature | 5 to 149°F / -15 to 65°C |
| Storage Temperature | -22 to 185°F / -30 to 85°C |
Physical
| Dimensions | 2.1 x 2.5 x 3.3" / 53.34 x 63.5 x 83.82 mm |
| Weight | 3.8 oz / 108 g |
Packaging Info
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 5.2 x 4.8 x 4.7" |
