Description
Bogen SM1EZ Overview

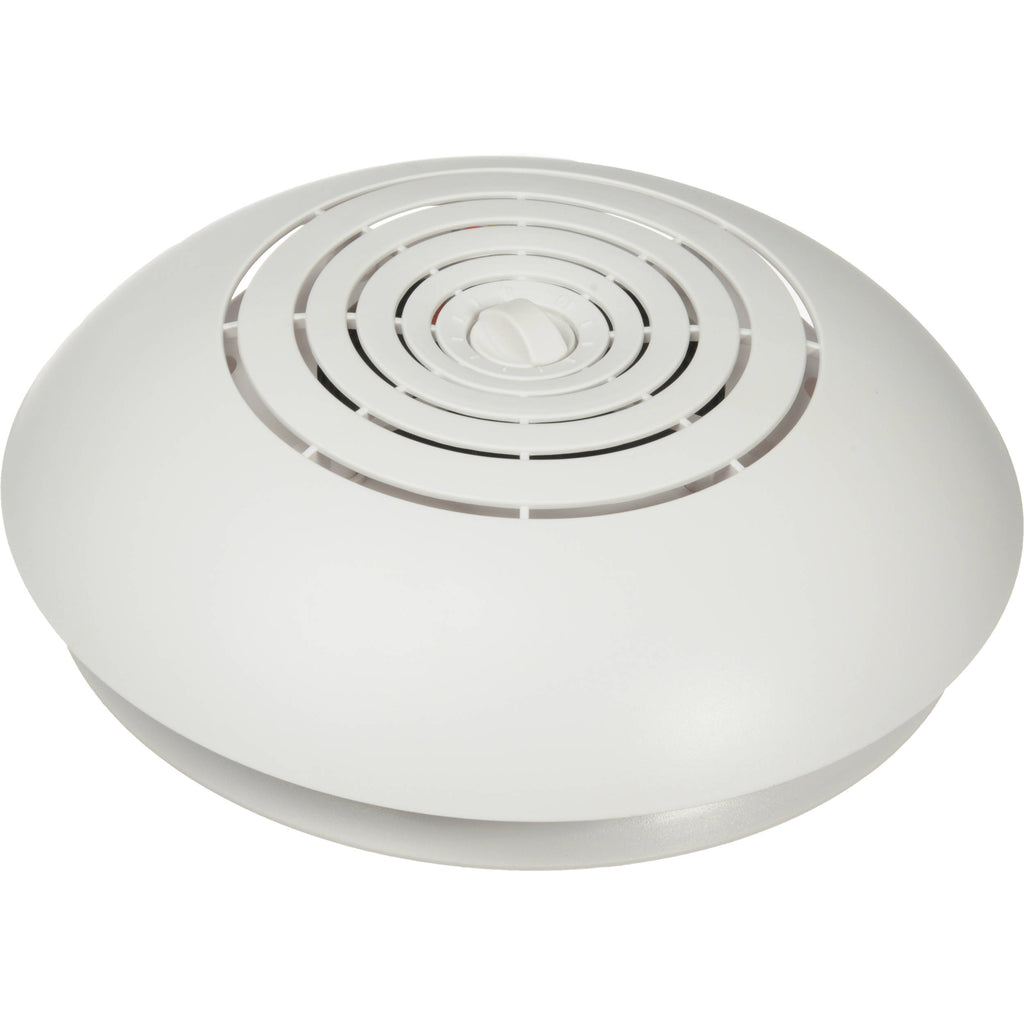

The off-white Bogen Communications SM1EZ is an Easy Install series 1W surface-mount speaker in a lightweight ABS plastic shell offering intelligible voice reproduction for paging, talkback, and security applications in schools, warehouses, offices, and more. This single-tap speaker is compatible with 25 and 70V amplifiers, and delivers a maximum power output of 1W across a frequency range of 125 Hz to 15 kHz with a 120° dispersion angle.
Easily wire the SM1EZ using the color-coded mounting studs, and adjust the volume via the front-mounted knob without having to remove the speaker. Mounting hardware is supplied for simple, tool-free installation.
Simple three-step installation process takes less than one minute and requires no tools
Surface-mount design eliminates need to cut ceiling tile
Can be installed in any drop ceiling with standard ceiling tiles
Lightweight and durable plastic shell with a paintable off-white finish
O-ring seal holds speaker tight to ceiling surface, negating whistling and ensuring smoother sound without peaks
Compatible with 25 and 70V systems
Single-tap at 1W
Wire-wound volume control on outside of speaker for easy access
125 Hz to 15 kHz frequency response contributes to intelligible voice reproduction
Direct and reflected sound paths create a wide dispersion angle of 120°
Color-coded mounting studs identify polarity simplify electrical connections
Textured studs easily pierce ceiling tile and secure wire nut connections
Wide-bottom, easy-to-handle mounting wing nuts provide secure speaker mounting
Compatible with SMTB tile bridge (available separately)
Includes all necessary mounting hardware
UPC: 765368481730
In the Box
- Bogen SM1EZ Easy Install 1W Surface-Mount Speaker (Off-White)
- Mounting Hardware
- Limited 3-Year Manufacturer Warranty
Bogen SM1EZ Specs
| Power Rating |
1 W
|
| Power Taps |
Watts at 25 or 70 V: 1
|
| Frequency Response |
125 Hz to 15 kHz
|
| Impedance |
25 or 70 V
|
| Sensitivity |
90 dB SPL (1 W, 1 m)
|
| Dispersion |
120°
|
| Input |
Mounting studs
|
| Construction Material |
ABS plastic
|
| Base Diameter |
8.8" / 22.2 cm
|
| Dimensions |
9.5 x 3.0" / 24.1 x 7.6 cm
|
| Weight |
2 lb / 0.9 kg
|
| Flame Test |
94-5VA
|
| Compliance |
NFPA National Code 160b
UL-2043 |
Packaging Info
| Package Weight |
2.65 lb
|
| Box Dimensions (LxWxH) |
10.4 x 10.3 x 5.9"
|
