Description

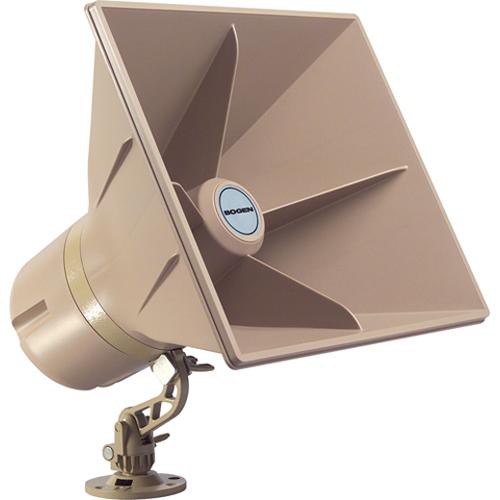

Bogen SAH30 Overview
The Bogen Communications SAH30 is a 30W high-efficiency digital switching self-amplified horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 30W output, a maximum SPL of 127 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low heat dissipation and low current draw. It operates via a 24 VDC power source.
Its weatherproof, UV-protected lightweight plastic housing ensures reliable durability indoors and outdoors, and can be precisely rotated, tilted, and swiveled via the cast aluminum mount. Attachment to an electrical box is supported with the supplied mounting strap. The screw terminals, which are protected by a removable access cover, ensure simple wiring. The SAH30's volume control is indexed to allow accurate and repeatable level adjustments.
In the Box
- Bogen SAH30 High-Efficiency Digital Switching Self-Amplified Horn (30W)
- Mounting Strap
- Limited 2-Year Manufacturer Warranty
Bogen SAH30 Specs
| Power Rating | 30 W |
| Maximum SPL | 127 dB |
| Frequency Response | 275 Hz to 14 kHz |
| Input Sensitivity | 125 mVrms |
| Input Impedance | 2 kOhms |
| Dispersion | 120 x 90° |
| Current Consumption | 17 CU / 850 mA typical |
| Power Requirement | 24 VDC nominal |
| Magnet | Size: 3.9" / 10 cm Weight: 16 oz / 453.6 g |
| Construction Material | Housing: UV-protected plastic Mount: Cast aluminum |
| Voice Coil Diameter | 1.6" / 4.1 cm |
| Dimensions | 10.6 x 12.0 x 11.5" / 27.0 x 30.5 x 29.2 cm |
| Weight | 6 lb / 2.7 kg |
| Package Weight | 7.2 lb |
| Box Dimensions (LxWxH) | 13 x 12.9 x 11.7" |
