Description
Bogen MCD2X2U Overview

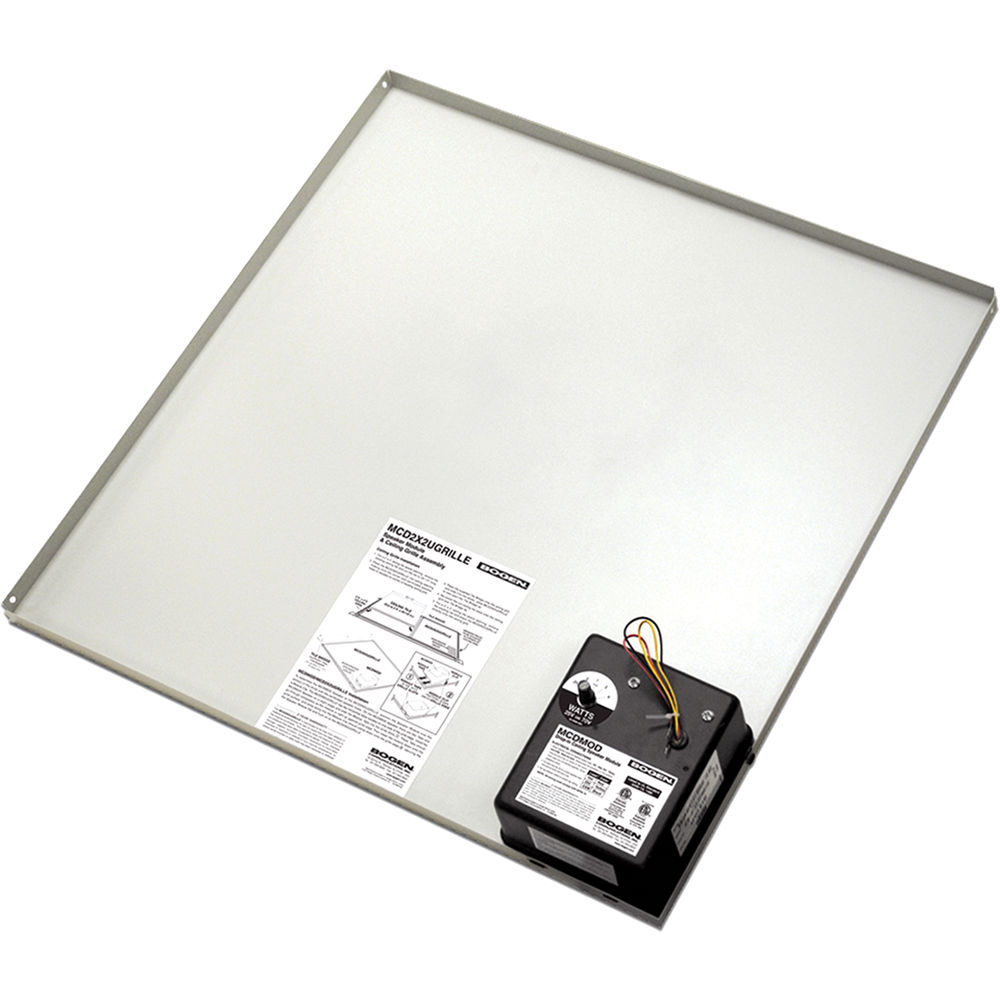

The MCD2X2U from Bogen Communications is a kit which consists of a MCDMOD Speaker Module and a MCD2X2UGRILLE 2 x 2' Ceiling Grille, that when combined provide a modular drop-in ceiling panel with an integrated 25 V or 70 V speaker.
The MCDMOD from Bogen is a fully-enclosed MCD speaker module for drop-in ceiling sound reinforcement. The MCDMOD snaps onto a speaker assembly grille (sold separately). Since the module is not attached to the grille, it provides you the option of making wire connections before or after grille placement in the ceiling.
The off-white 2' x 2' Ceiling Grille from Bogen Communications is a drop-in speaker grille for a modular drop-in ceiling speaker. Depending on the application's aesthetics or grid configuration, you may select the 2' x 2' Ceiling Grille to fit in either 2' x 2' or 2' x 4' suspended ceilings. It features 3 seismic attachment points and includes a tile support rail crossbar.
In the Box
- Bogen MCDMOD Speaker Module
- Limited 2-Year Manufacturer Warranty
- Bogen 2' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White)
- Tile Support Rail Crossbar
- Limited 2-Year Warranty
Bogen MCDMOD Speaker Module Specs
| Speaker |
4.5" (11.4 cm) full-range
|
| Dispersion |
120° wide
|
| Rotary Switch |
4, 2, 1, 1/2, and 1/4 W power tap settings
|
| Compatibility |
70 V / 25 V systems
|
| Frequency Response |
160 Hz to 10.5 kHz
|
| Sensitivity |
85 dB (1 W / 1 m)
|
| UL Listed |
UL Standard 60065 for U.S. and Canada
UL Standard 1480 for U.S. |
| Dimensions |
5.75 x 2.50 x 6.75" (14.6 x 6.4 x 17.2 cm)
|
| Weight |
2.5 lb (1.1 kg)
|
Bogen 2' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White) Specs
| Material |
Industrial grade steel
|
| Finish |
Off-white, powder-coated
|
| Dimensions |
23.75 x 0.63 x 23.75" (60.3 x 1.6 x 60.3 cm)
|
| Weight |
4.5 lb (2 kg)
|
