Description
Bogen LMM1S Overview

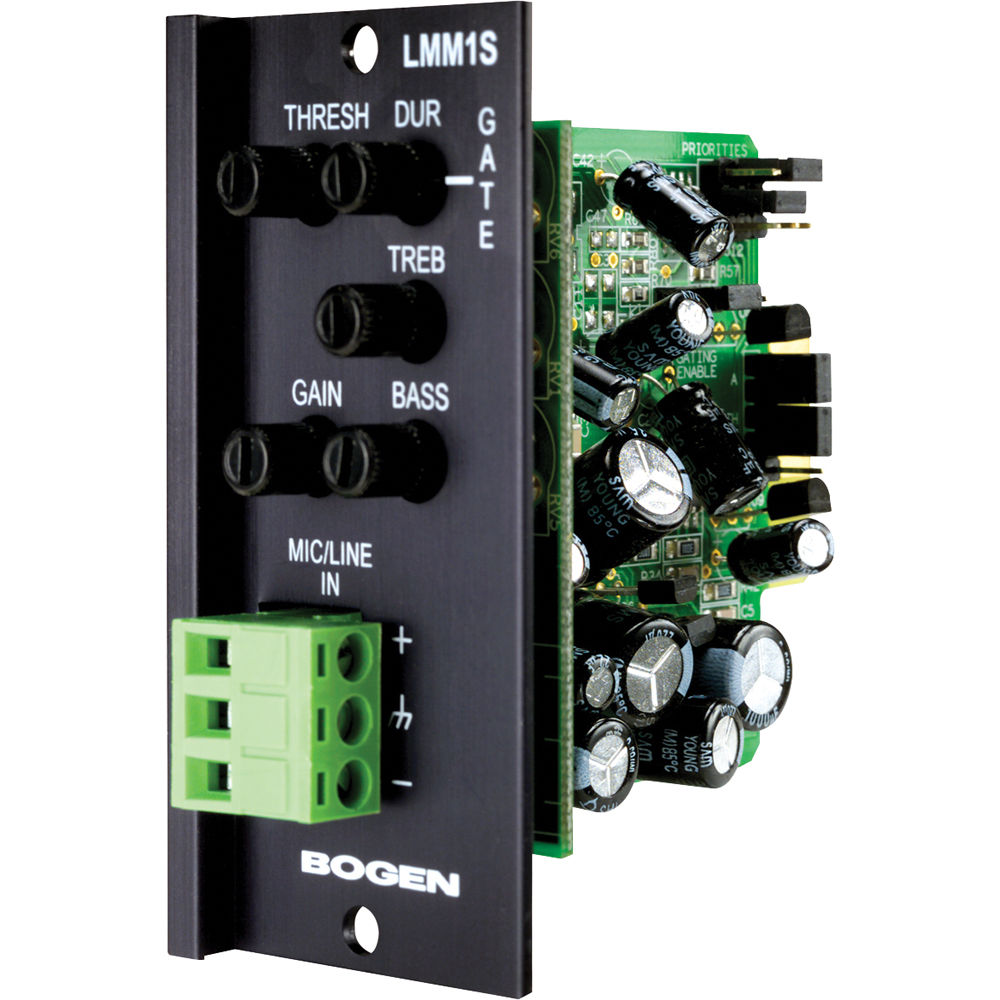

The LMM1S Microphone/Line Input Module with Screw Terminal Connector from Bogen Communications is an actively balanced plug-in module designed to pre-amplify microphone inputs to line-level. It is compatible with the Vector mixer/pre-amplifier model VMIX. A mic/line switch sets the input gain range for the intended input device. Jumpers are used to select between 4 levels of priority; the LMM1S can mute lower priority modules and can be muted from higher priority modules plugged into the same VMIX. When using the module with condenser microphones, a jumper can be set for the module to supply 24V phantom power. This input module features bass & treble, gain/trim, and gate threshhold & duration controls.
Bogen LMM1S Specs
| Compatibility | Vector mixer/pre-amplifier VMIX |
| Gain | Microphone: 18 to 60 dB Line: -2 to 40 dB |
| Frequency Response | 20 Hz - 50 kHz (+0/-3 dB) |
| S/N | 20 Hz - 20 kHz: -76 dBV @ 60 dB gain |
| Distortion | < 0.01% |
| Input Impedance | Microphone mode: 2 k? Line mode: 15 k? |
| Gate Threshold | 2 - 25 mV @ minimum gain |
| Gate | 0.5 - 5 second duration |
| Priority | 4 levels |
| Tone | ± 10 dB @ 100 Hz and 10 kHz |
| CMRR | > 80 dB @ 1 kHz |
| Controls | 1 x gain 1 x bass 1 x treble 1 x threshold 1 x duration |
| Connector | 1 x 3-position pluggable Euro screw, microphone/line input |
| Dimensions | 1.4 x 3.1 x 3.5" (34.9 x 79.4 x 88.9 mm) |
| Weight | 2.2 oz (62.4 g) |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 3.858 x 3.78 x 1.654" |
