Description
Bogen HFCS1 Overview

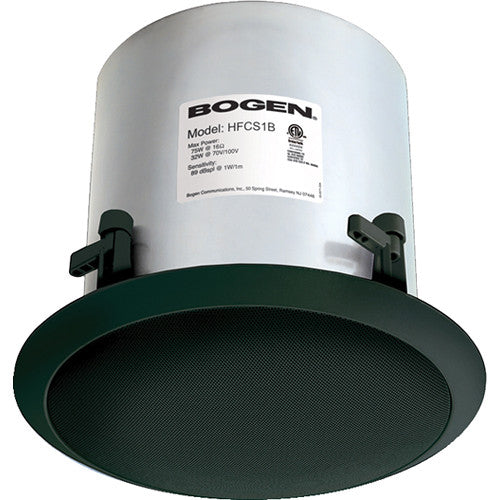

The black Bogen Communications HFCS1B is a 6.5" 75W passive ceiling speaker designed to deliver full-range frequency reproduction for clear, intelligible foreground sound and speech reinforcement in offices, retail environments, transportation facilities, and more. It features a computer-matched venting system that aids the speaker in achieving a full bass output and a large back can for extended bass response.
The HFCS1B utilizes a coaxial speaker design with a 6.5" polypropylene cone woofer and a 0.75" polycarbonate dome tweeter, yielding a frequency response of 65 Hz to 19 kHz (-10 dB) and high power handling capability. A front-mounted transformer tap selector provides easy access to a variety of 70V/100V power taps and a 16-ohm transformer bypass setting.
Wiring and installation is simplified thanks to the snap-lock input connector and integral swing-out clamps. The speaker is supplied with an input terminal cover with knockouts for additional protection of the connections.
In the Box
- Bogen HFCS1B 6.5" 75W Passive Ceiling Speaker (Black)
- Input Terminal Cover (Two Halves)
- 4 x Screws
- Snap-Lock Input Connector
- Limited 3-Year Manufacturer Warranty
Bogen HFCS1 Specs
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 75 W At 70 V / At 100 V: 32 W |
| Constant Voltage / Transformer Taps | 70 V: 1 / 2 / 4 / 8 / 16 / 32 W or 16 Ohms Bypass 100 V: 2 / 4 / 8 / 16 / 32 W or 16 Ohms Bypass |
| Impedance | 16 Ohms |
| Transformer Wattage | 32 W |
| Enclosure Type | Bass-Reflex |
| Shielded | No |
| HF Driver | 1 x 0.75" / 1.91 cm Polycarbonate Dome Tweeter |
| LF Driver | 1 x 6.5" / 16.51 cm Polypropylene Woofer |
| Frequency Range | 65 Hz to 19 kHz -10 dB |
| Sensitivity | 89 dB SPL (Average) |
| I/O | 1 x Block 4-Pole Speaker Input (Removable) |
| Certifications | UL *as per Manufacturer |
| Environmental Protection | None |
| Color | Black |
| Cutout Depth | 11" / 27.9 cm |
| Construction Material | ABS, Steel |
| Dimensions | 12.28 x 11.97" / 312 x 304 mm |
| Weight | 9 lb / 4.1 kg |
