Description
- For Commercial Audio Installation
- 6-Zone Music & Paging
- 120 Watts @ 70V Operation
- Built-In FM Tuner and MP3 Player
- Seven Inputs: Mic 1-4 and Line 1-3
- Over 800 FM Station Presets
- Six Speaker Zone Switches
- Rackmount Frame
- Includes Infrared Remote Controller

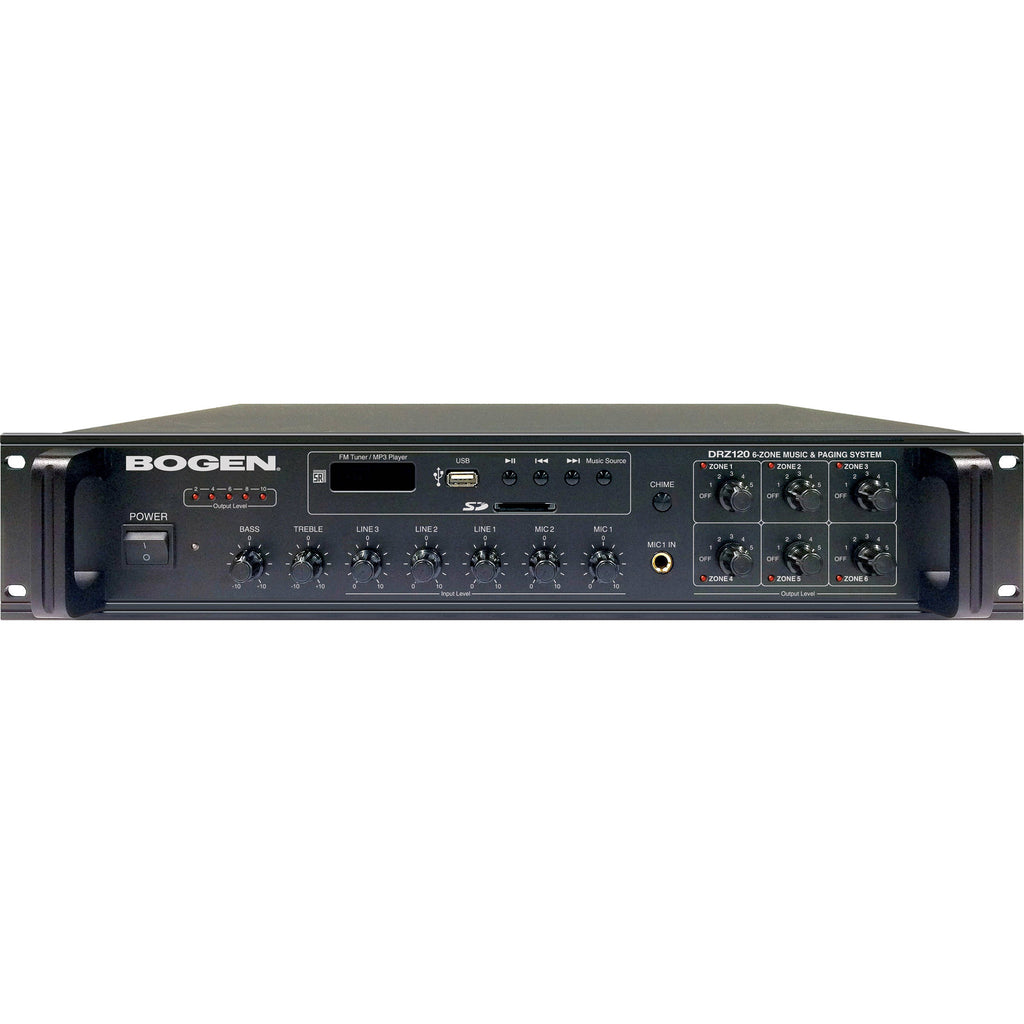

The DRZ120 6-Zone Music & Paging System from Bogen Communications is a 120-watt amplifier with a digital FM tuner, well suited for commercial retail spaces, bars, and restaurants. Designed for 70-volt audio systems, the DRZ120 is the ideal front-end to any commercial audio paging system, supplying background music to six separate zones with its FM tuner. There are also microphone and line inputs for connecting additional equipment.
On-board tone controls feature bass and treble controls, while MP3 files can be loaded and played from the on-board USB or SD card slots on the front panel. The front panel mic input can be set for Vox-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs. The DRZ120 ships with an infrared remote controller for the FM tuner and MP3 player.
-
- Self-contained, 6-zone music and paging system with FM Tuner, MP3 Player, Mic and Line inputs.
- 120-watt audio output (into 8-Ohms)
- For use with 4-16 Ohms or 70-Volt speaker systems.
- Enable from 1-6 zones for music or paging
- 7 Total Audio Inputs: Mic1-4, Line1-3
- Mic1 input uses a front 1/4� TRS connector for a balanced Lo-Z microphone
- Mic1 Vox-activated muting of all other audio inputs governed via a Mute Control
- RCA inputs for Line1-3
- Built-in digital FM Tuner, with PLL synthesizer to provide accurate frequency selection
- Auto station search and manual tuning
- Back-lit tuner display, LCD
- FM 75-Ohm coaxial antenna connector
- Over 800 FM station presets
- Bass and Treble controls
- Infrared Remote Controller for FM tuner and MP3 player control
- Volume control
- Tuner/MP3 select button
- Preset and scan channel selection
- USB/SD media select
- MP3 play/pause/forward/ backward/repeat options
- EQ mode selection (none, Classic, Jazz, Rock, Bass & Pop)
- Chime button with priority output
- 5-segment LED output level meter
- Aux post-mix LINE output
- Power-on LED indicator
- Rack-mountable with integral brackets
| Amplifier | |
|---|---|
| Power Rating | 120 W into 8 Ohms (RMS) |
| Distortion | <1% Rated output power @ 1 kHz |
| Signal-to-Noise Ratio | Line: ? -74 dB |
| Frequency Response | 80 Hz - 16 kHz @ 4 Ohms (±3 dB) |
| Zone Output | 120 W @ 70 V max. for any single zone 20 W @ 70 V max. for each zone (assuming equal loads) |
| Speaker Out | Aux Speaker Output: 4-16 Ohms |
| Tone Controls | Bass: ±10 dB @ 100 Hz Treble: ±10 dB @ 10 kHz |
| Microphone Inputs | ? 3 mV/1 kOhms balanced Front Connection: 1/4" / 6.35 mm Rear Connections: 2x Euro-block, 1x XLR |
| MIC1 | Mic1 Precedence: Vox-activated, with adjustable Mute Control |
| Line Inputs | Line Input 1-3: ? 300 mV/10 kOhms unbalanced Rear Connections: 3x stereo RCA |
| AUX Outputs | Aux Line Output: 50 Ohms / 1 V RCA Jacks: 1x stereo RCA |
| Tuner | |
|---|---|
| Tuner Type | Digital, with PLL Synthesizer |
| Band | FM: 87.5 to 108 MHz |
| Antenna | 75 Ohms coaxial |
| Memory | Preset Memory: Over 800 FM stations Memory Scan: Automatically presets stations |
| Display | Backlit, LCD |
| General | |
|---|---|
| Power | Power Required: 120 VAC nominal @ 60 Hz Power Consumption: 250 W |
| Dimensions (WxHxD) | 19.1 x 3.5 x 13.8" / 48.6 x 8.9 x 34.9 cm |
| Weight | 25.2 lb / 11.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 28.0 lb |
| Box Dimensions (LxWxH) | 21.5 x 18.0 x 7.45" |
- Wireless IR Remote Control
- Limited 2-Year Warranty
