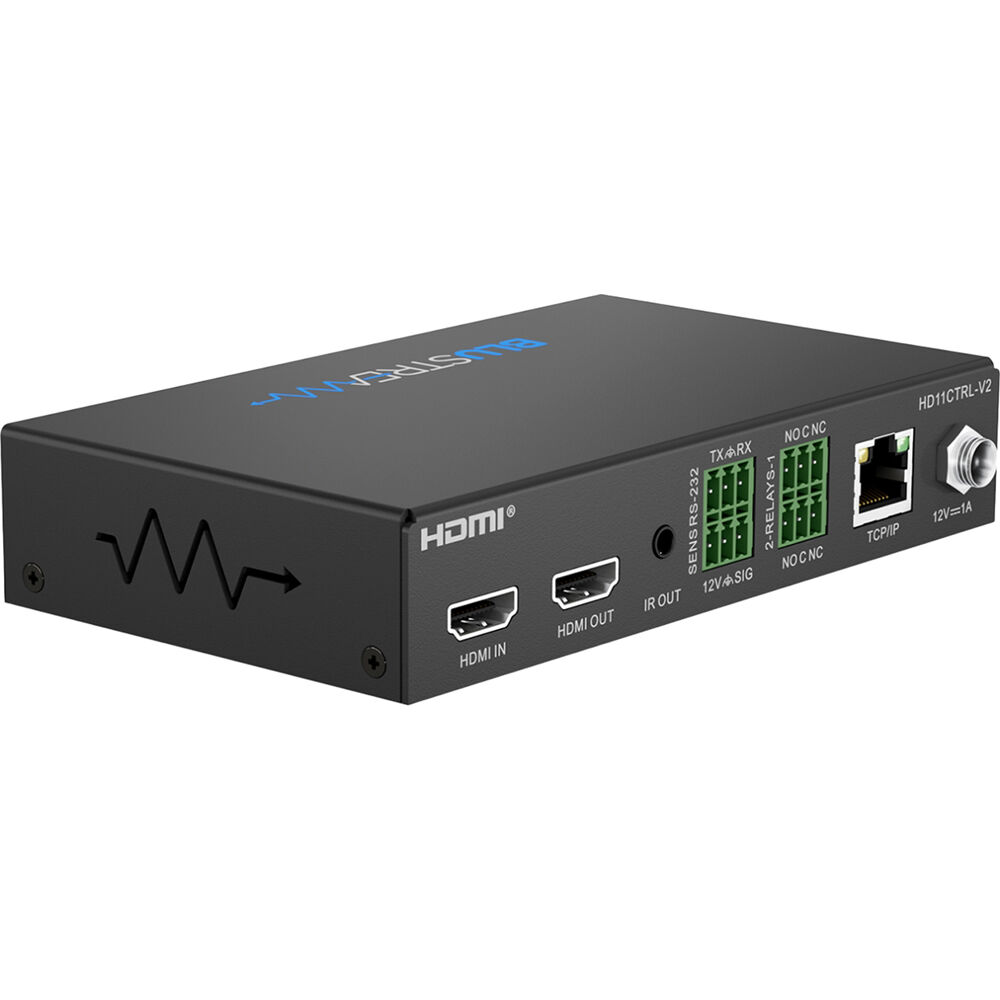

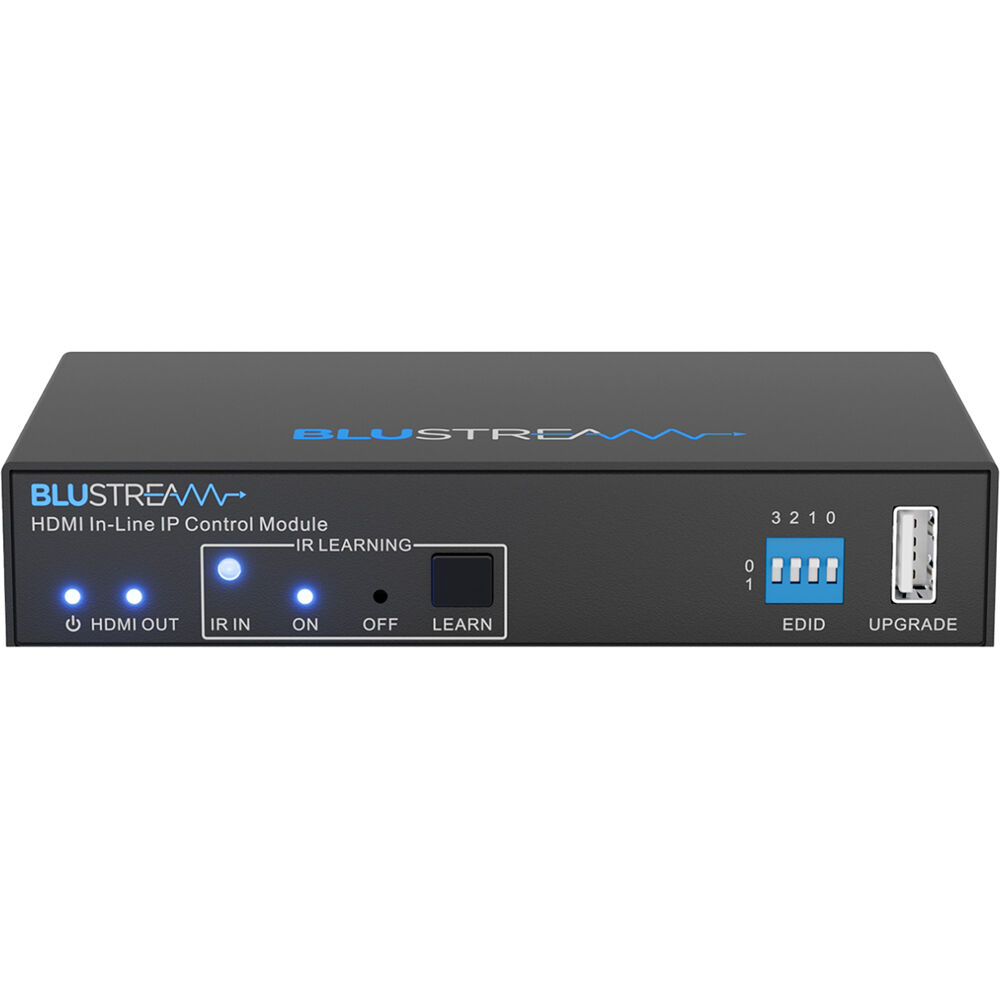

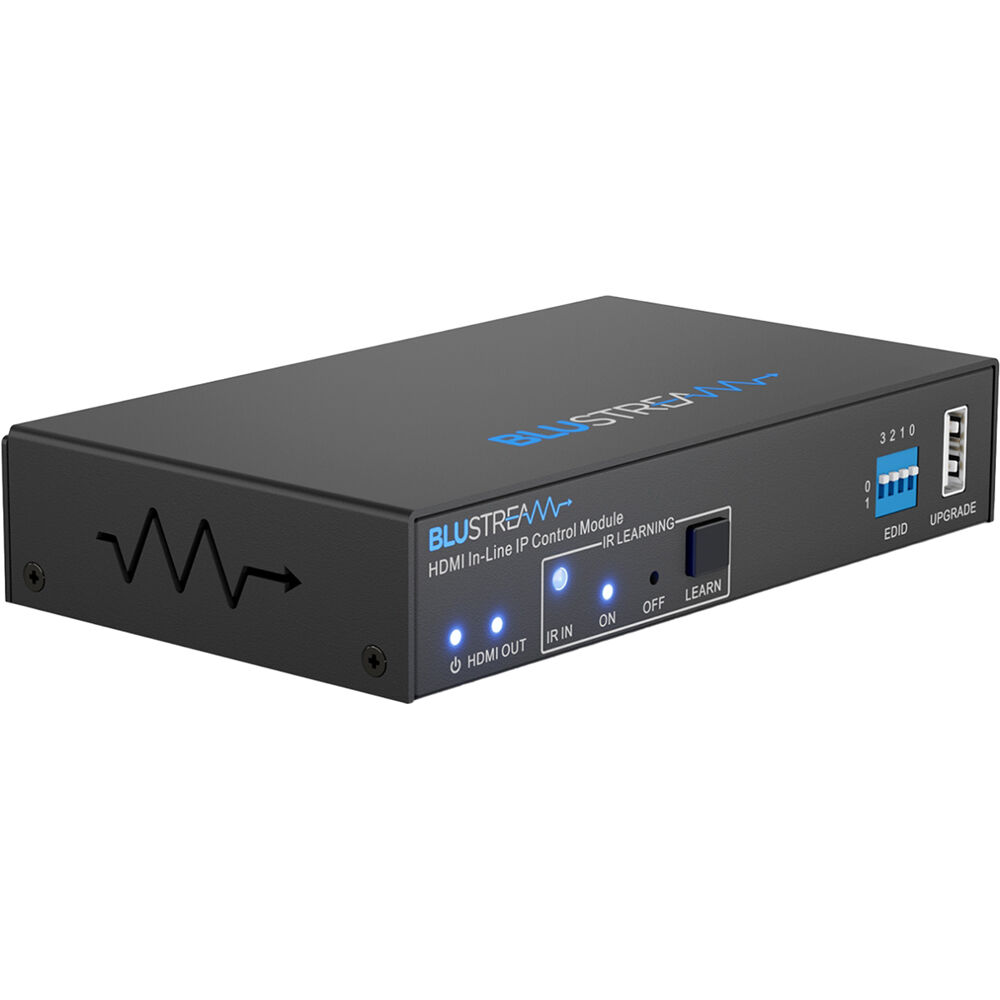

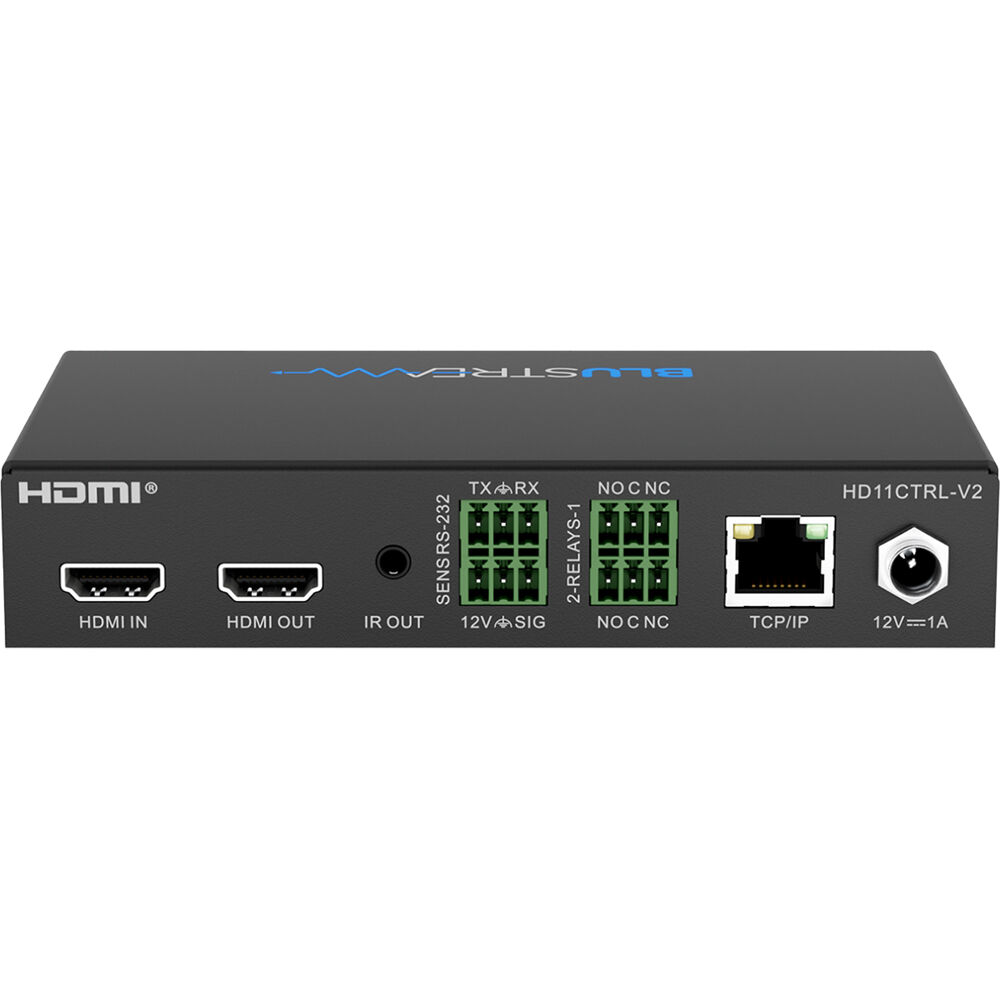

Blustream HD11CTRL-V2 Overview
The updated HD11CTRL-V2 HDMI In-Line IP Control Module from Blustream is an automated room control solution, featuring display on/off control via CEC, RS-232, and IR when a HDMI signal is sensed on the input. External relay inputs allow third-party triggers for integration with devices such as sensors or switches that control room elements such as mechanical blinds and projector screens.
Other features include support for up to 10 macros with 10 command functions per macro, a built-in web GUI for configuration, and storing up to 30 IR commands. The HD11CTRL V2 supports full HDMI 2.0, HDCP 2.2, advanced EDID management, Dolby/DTS audio, 4K to 1080p downscaling, and video resolutions up to UHD 4K60 4:4:4.
- Automated in-line HDMI control module supporting up to 10 macros with up to 10 command functions per macro
- HDMI 2.0 18 Gb/s specification, including HDR
- Supports resolutions up to UHD 4K60 4:4:4
- Supports all known HDMI audio formats, including Dolby TrueHD, Atmos, and DTS-HD Master Audio
- Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 color space not supported)
- Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
- Automatic display control via CEC, RS-232, IR, or IP
- Store up to 30 IR commands
- Relay control for interface to third-party devices such as projector screens
- Signal sense input for connection from third-party devices such as sensors or switches
- HDCP 2.2 compliant
- Advanced EDID management
- Built-in web-GUI for configuration and control
Items Included
- Blustream HD11CTRL-V2 HDMI In-Line IP Control Module
- Power Supply
- IR Emitter
- RS-232 Control Cable
- Mounting Kit
- Limited 5-Year Manufacturer Warranty
Additional Resources
Blustream HD11CTRL-V2 Specs
| Compatibility |
Not Specified by Manufacturer
|
| USB I/O |
1 x USB-A 2.0 Female Input
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Other I/O |
1 x 3-Pin Terminal, RS-232
2 x 3-Pin Terminal, Relay 1 x 3-Pin Terminal, Sensor Input 1 x RJ45 LAN 1 x 3.5 mm IR Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 1 A
|
| Color |
Black
|
| Certifications |
CE, FCC, RoHS, UKCA
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
5.7 x 3.3 x 1.1" / 145 x 84 x 28 mm
|
| Package Weight |
1.705 lb
|
| Box Dimensions (LxWxH) |
8.9 x 7.2 x 2.4"
|
