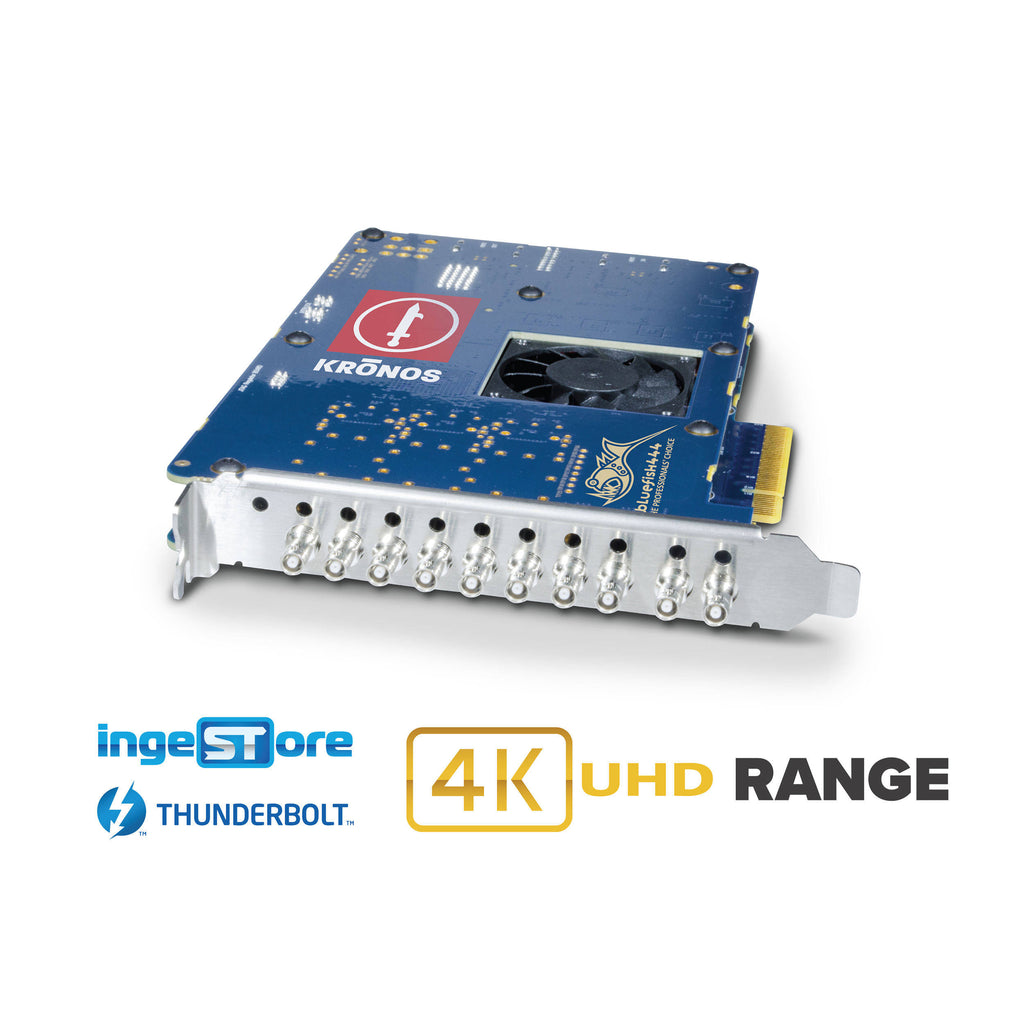

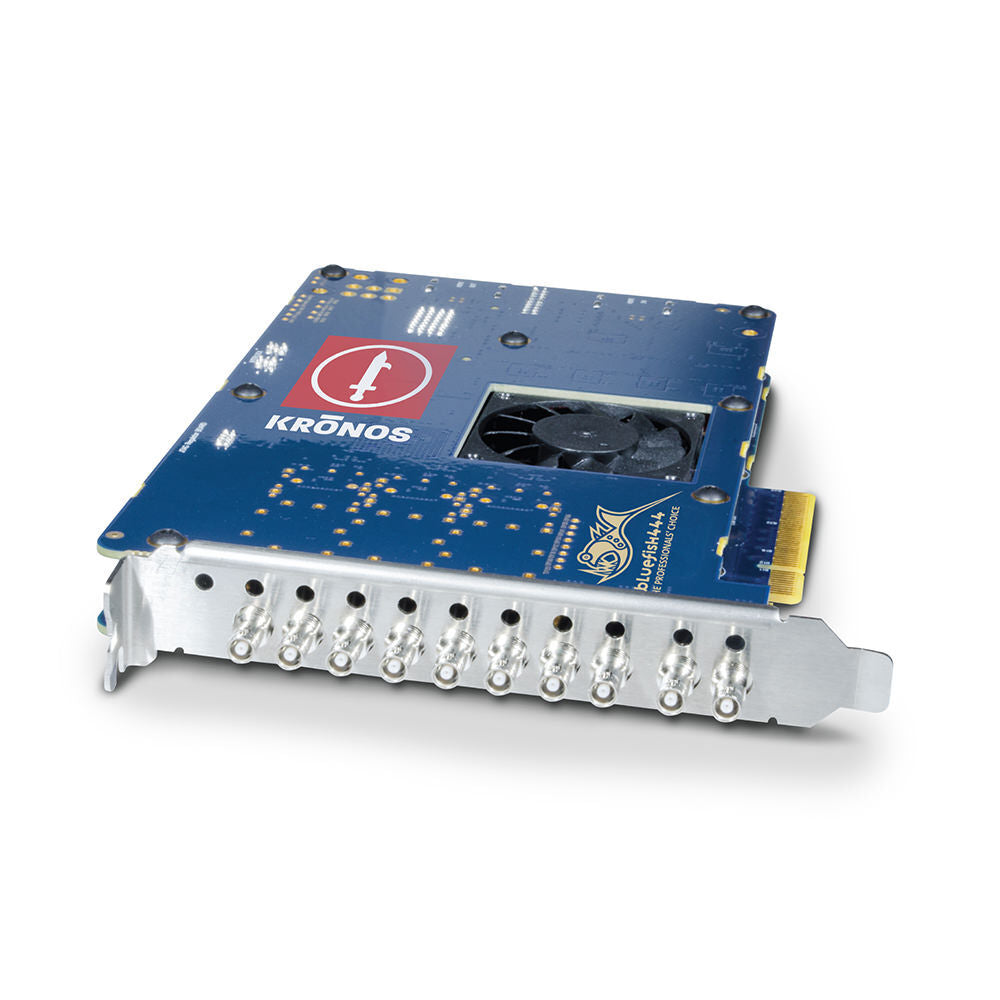

Bluefish444 KRONOS K8 [R]


	₹ 720950.0 includes GST and import duties.
	B2B customers can avail ₹ 109944.88 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Bluefish444
SKU:	6614272901205
MPN:	K4001

Share this product

Bluefish444 Kronos K8 Overview

1Description
2Key Features
3Optional Connectivity
4Low Latency
5Low-Latency Video Keyer
612-Bit Processing Pipeline
7RGB / YUV
8Thunderbolt Expansion Compatibility
9Pixel Formats
10IngeSTore Multichannel Capture Tool (Included)
11Software Compatibility

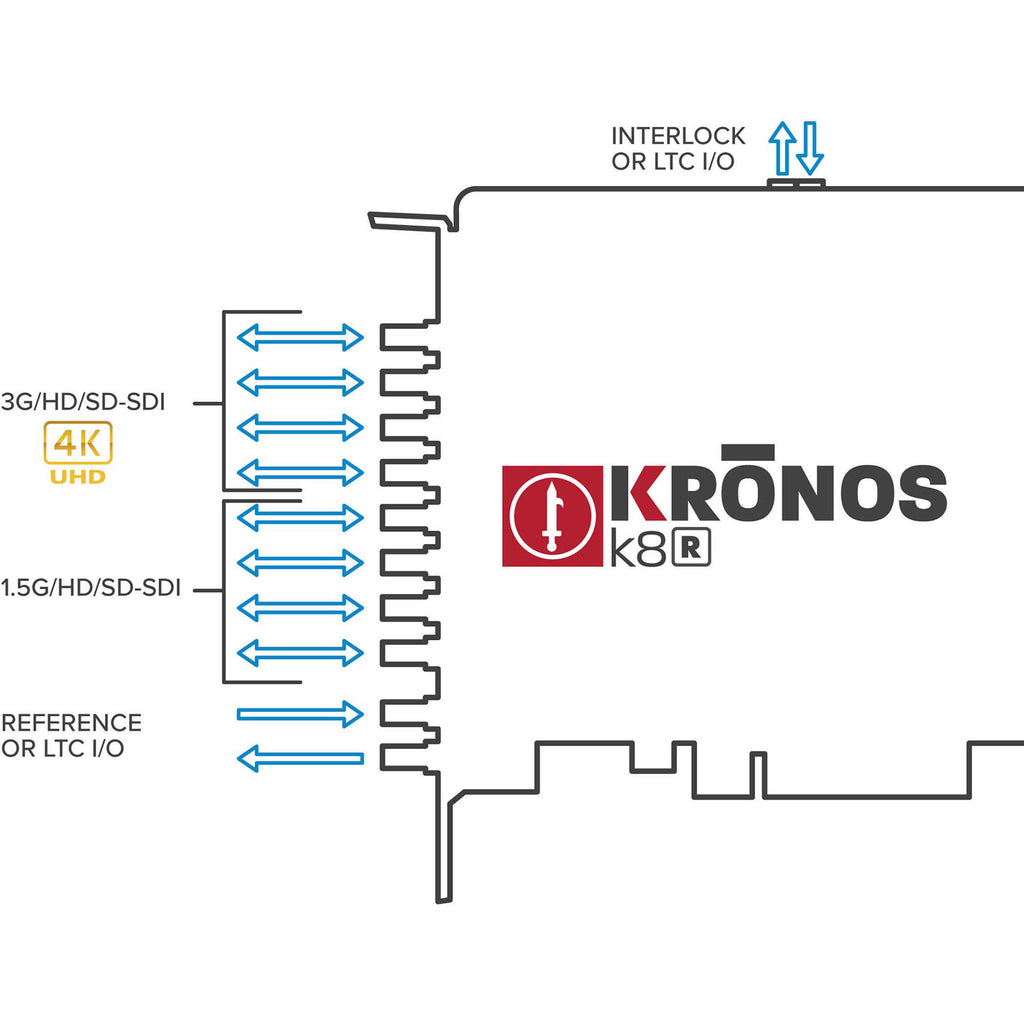

The Bluefish444 KRONOS K8 [R] features four bidirectional 3G/HD/SD-SDI and four bidirectional HD/SD-SDI connectors plus reference and LTC I/O. Over quad-link SDI, the advanced developer card supports up to DCI/UHD 4K60 resolution video input and output with high dynamic range, high frame rates, and extremely low latency of sub on field or frame. Via a STEM port on the side of the card and optional Bluefish444 EX-1 and EX-2 add-ons, the KRONOS K8 [R] can also be equipped with RS-422 control, AES/EBU and analog audio, and additional LTC I/O.

The KRONOS K8 [R] is an internal full-height, 2/3-length 8-lane PCIe card compatible with Windows, Mac, and Linux systems, but it can also be installed in optional Thunderbolt enclosures from Sonnet and other brands for alternate multimedia workflow options, including integration with a second PCIe card, such as a PCIe-based SSD drive or RAID controller. Included with the card is a free download of the Bluefish444 IngeSTore acquisition software and Bluefish444 cross-platform SDK.

Other features of the card include embedded audio support, high-performance bypass relays, 4 x 4 x 33-bit color matrix, 12-bit video signal path, hardware downstream keyers, and full-duplex DMA data transfer.

The KRONOS K8 [R] can be used for broadcast graphics, post-production, live events, and digital intermediate, mobile production, QC, video over IP, and streaming workflows, among many others.

Key Features

Full-height, 2/3-length 8-lane PCIe, Gen 3 card (16-lane compatible)
Four independent and simultaneous bidirectional 3G/HD/SD-SDI BNC connectors
Four independent and simultaneous bidirectional HD/SD-SDI BNC connectors
Multichannel DCI/UHD 4K60 resolution playout or capture via quad-link 3G-SDI
Reference I/O
LTC I/O
Compatible with Mac, Windows, and Linux
Four high-performance bypass relays
12-bit video signal path
4 x 4 x 33-bit color matrix
Audio sample rate converters
MR2 master routing resource
Input stream integrity management
Full-duplex DMA data transfer
Four hardware downstream keyers
16 channels of embedded SDI I/O audio
Dolby Digital pass-through SDI
STEM port interface on the side
Allows interlocking multiple KRONOS K8 [R] units or KRONOS K8 [R], K8, and Bluefish444 Neutron cards

Optional Connectivity

Auxiliary I/O can be added to the KRONOS K8 [R] via the STEM port interface and optional Bluefish444 EX-1 and EX-2 products
EX-1 adds LTC I/O, RS-422 control, and AES audio I/O
EX-2 adds LTC I/O, RS-422 control, and analog audio I/O

Low Latency

The KRONOS K8 [R] provides access to captured fields or frames to onboard card memory, even before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to one field for interlaced modes, and less than one frame for progressive modes.

Low-Latency Video Keyer

Four low-latency hardware video keyers allow video layers to be combined in hardware with microseconds of delay. This allows animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay. The keyers can also function as image pre-multipliers to assist in previewing images with alpha data.

12-Bit Processing Pipeline

Allows 8-, 10-, and 12-bit SDI video signals to be produced from 8-, 10-, 12-, and 16-bit pixel formats, providing the highest image quality available from your source material. A total of 4096 discrete values of red, green, and blue are maintained per pixel.

RGB / YUV

Fully programmable 4 x 4 x 33-bit color matrix provides the highest quality color space conversions, reduces color space conversion errors, and ensures the highest quality color accuracy during capture, monitoring, and mastering.

Thunderbolt Expansion Compatibility

The KRONOS K8 [R] is compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTiO Thunderbolt expansion enclosures for multichannel mobile production.

Pixel Formats

2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420, ARGB, BGRA, RGB24, Cineon, DPX, RGB48, and custom formats.

IngeSTore Multichannel Capture Tool (Included)

Provided as a free download
Capture up to four channels of video
Wide range of broadcast, post-production, archival, and streaming codec options
Records direct to shared storage, including Avid shared storage
Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid MediaComposer
REST API for remote control
RS-422 controller

Software Compatibility

Adobe Creative Cloud, Assimilate SCRATCH, Avid, CasparCG, Dataton, Foundry Nuke, Resolume, Streamstar, Unity, Unreal Engine, vMix, and more.

In the Box

Bluefish444 KRONOS K8 [R]
Limited 3-Year Warranty

Table of Contents

Description
Key Features
Optional Connectivity
Low Latency
Low-Latency Video Keyer
12-Bit Processing Pipeline
RGB / YUV
Thunderbolt Expansion Compatibility
Pixel Formats
IngeSTore Multichannel Capture Tool (Included)
Software Compatibility

Bluefish444 Kronos K8 Specs

Host Connection	PCIe x8 (PCIe 3.0)
Shared Input/Output Connectors	4 x BNC (3G-SDI / HD-SDI / SD-SDI) 4 x BNC (HD-SDI / SD-SDI)
Input Video Format	SDI DCI 4K: 23.98/24/25/29.97/30/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1556: 14.98/15 fps DCI 2K: 23.98/24/25/29.97/30/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps
Embedded Audio Input	SDI: 16-Channel
Output Video Format	SDI DCI 4K: 23.98/24/25/29.97/30/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1556: 14.98/15 fps DCI 2K: 23.98/24/25/29.97/30/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps
Embedded Audio Output	SDI: 16-Channel

Standards

Video Standard Compliance

SMPTE 292M/295M/372M/424M-A/424M-B/ST-2036-1

Connectivity

Latency	SDI Input/Output: 1 Frame
Other I/O	1 x BNC Reference Input/Output 1 x BNC Timecode Input/Output

Hardware

OS Compatibility

macOS 10.8 or Later
Windows 7 or Later
Windows Server 2008
Windows Server 2012 R2
CentOS
Ubuntu

General

Certifications	C-Tick, CE, FCC, ISO 9001, RoHS, as per Manufacturer
Dimensions	7.87" / 200 mm
Weight	10.58 oz / 300 g
Warranty Length	Limited 3-Year Warranty
