Description
Bluefish444 Supernova CG Overview
- 1Description
- 2Key Features
- 3Low Latency
- 4Low-Latency Video Keyer
- 512-Bit Processing Pipeline
- 6RGB / YUV
- 7Thunderbolt Expansion Compatibility
- 8Pixel Formats
- 9IngeSTore Multi-Channel Capture Tool (Included)
- 10Software Compatibility
The Bluefish444 AdvantageIngeSTore Multi-channel Capture Software

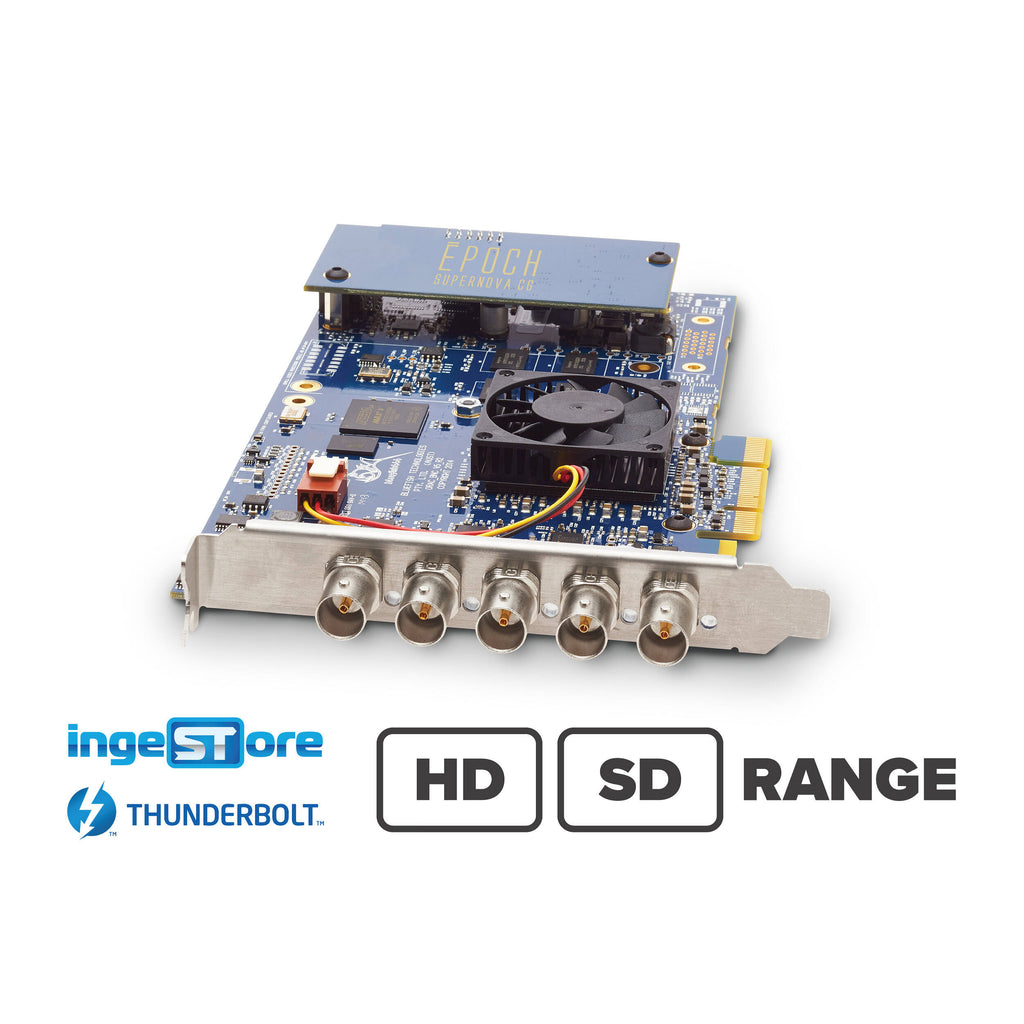

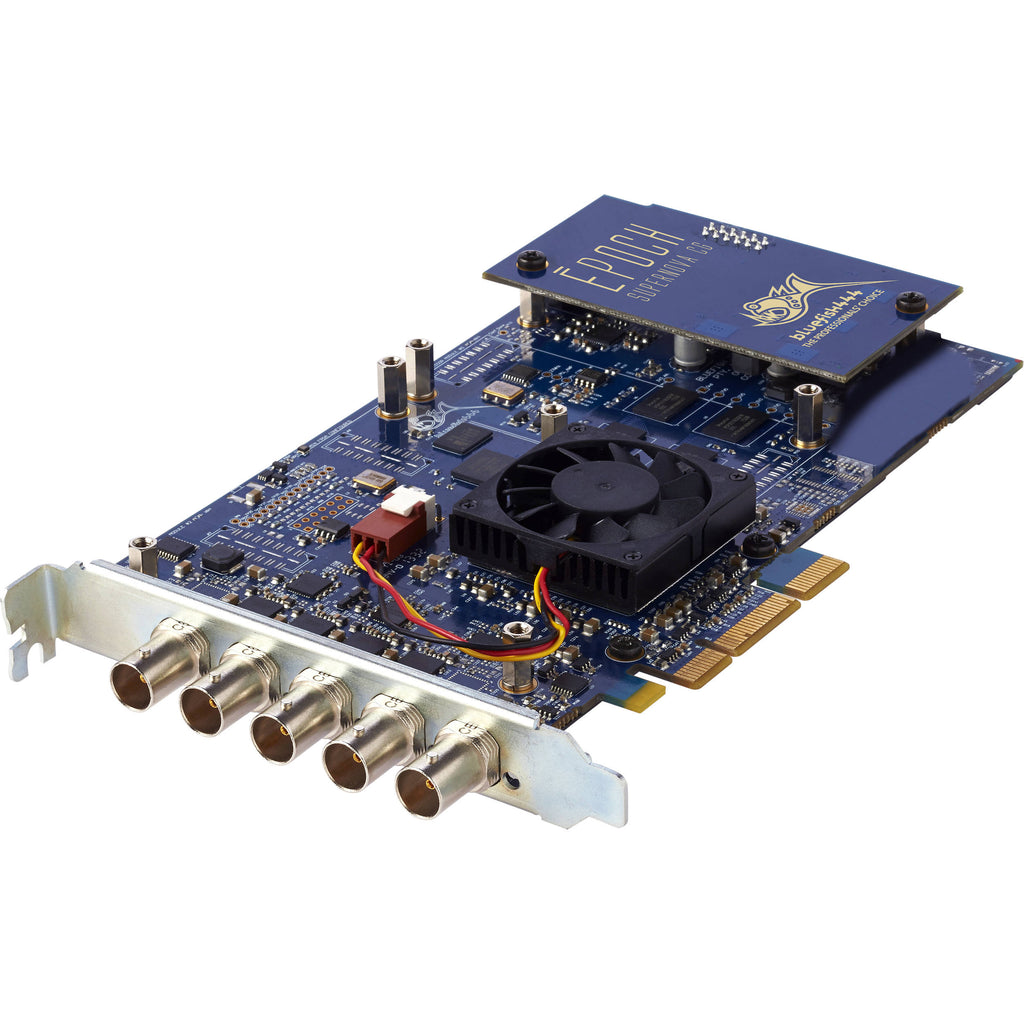

The Bluefish444 Epoch | Supernova CG features four bidirectional HD/SD-SDI connectors supporting up to DCI 2K/30 resolution video input and output with extremely low latency of sub on field or frame. The Supernova CG is an internal full-height, 2/3-length 4-lane PCIe card compatible with Windows, Mac, and Linux systems, but it can also be installed in optional Thunderbolt enclosures from Sonnet and other brands for alternate multimedia workflow options, including integration with a second PCIe card, such as a PCIe-based SSD drive or RAID controller. Included with the card is a free download of the Bluefish444 IngeSTore acquisition software and Bluefish444 cross-platform SDK.
Other features of the card include embedded audio support, dedicated reference input, high-performance bypass relays, 4 x 4 x 33-bit color matrix, 12-bit video signal path, hardware downstream keyer, full-duplex DMA data transfer, and 256MB of on-board memory.
The Epoch | Supernova CG can be used for broadcast graphics, post-production, live events, and digital intermediate, mobile production, QC, video over IP, and streaming workflows among many others.
Key Features
- Full-height, 2/3-length 4-lane PCIe, Gen 1 card (8- and 16-lane compatible)

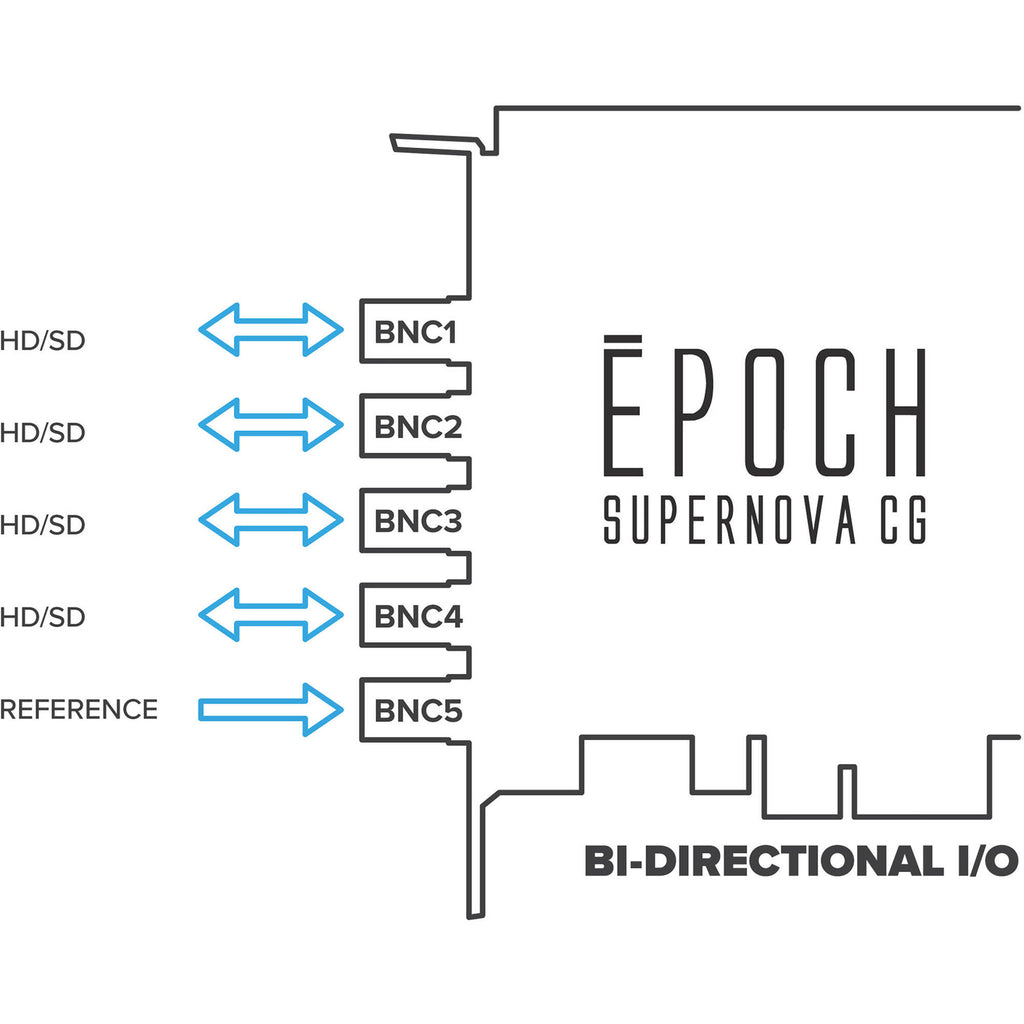

- Four independent and simultaneous bidirectional HD/SD-SDI BNC connectors
- Up to DCI 2K/30 resolution playout or capture via dual-link HD-SDI
- Dedicated BNC reference input
- Compatible with Mac, Windows, and Linux
- High-performance bypass relays
- 4 x 4 x 33-bit color matrix
- 12-bit video signal path
- Audio sample-rate converters
- MR2 master routing resource
- Input stream integrity management
- Full-duplex DMA data transfer
- 256MB on-board memory
- Hardware downstream keyer
- 16 channels of embedded SDI I/O audio
- Dolby Digital pass-through SDI
Low Latency
Supernova CG provides access to captured fields or frames to on-board card memory even before the whole field or frame is complete, thereby reducing the latency to sub on field or frame. During a capture or playout, each process can occur at less than or equal to 1 field for interlaced modes, and less than 1 frame for progressive modes.
Low-Latency Video Keyer
Low-latency hardware video keyer allows video layers to be combined in hardware with microseconds of delay. This allows animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay. The keyer can also function as an image pre-multiplier to assist in previewing images with alpha data.
12-Bit Processing Pipeline
Allows 8-, 10-, and 12-bit SDI video signals to be produced from 8-, 10-, 12-, and 16-bit pixel formats, providing the highest image quality available from your source material.
RGB / YUV
Fully programmable 4 x 4 x 33-bit color matrix provides the highest quality color space conversions, reduces color space conversion errors, and ensures the highest quality color accuracy during capture, monitoring, and mastering.
Thunderbolt Expansion Compatibility
The Epoch | Supernova CG is compatible with Sonnet, One Stop Systems Magma, Netstor, and AKiTiO Thunderbolt expansion enclosures for multichannel mobile production.
Pixel Formats
2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420, ARGB, BGRA, RGB24, Cineon, DPX, RGB48, and custom formats.
IngeSTore Multi-Channel Capture Tool (Included)
- Provided as a free download
- Capture up to 4 channels of video
- Wide range of broadcast, post production, archival, and streaming codec options
- Records direct to shared storage, including Avid shared storage
- Growing file support with Edit-While-Record in Adobe Premiere Pro and Avid Media Composer
- REST API for remote control
- RS-422 controller
Software Compatibility
Adobe Creative Cloud, Assimilate SCRATCH, Avid, Avmeda, Brainstorm, BTi, CasparCG, ChryonHego, ClassX, Dataton, Drastic Technologies 4kScope and videoQC, DVBControl, Etere, Foundry Nuke, Libero Systems, Marquise Technologies MIST and ICE, Masterplay, Media 5, Media-Alliance, Medialooks, Metus, MOG, NewTek, NVerzion, Resolume, Ross Video, Streamstar, Telestream Wirecast, TouchDesigner, Unity, Unreal Engine, Unreal StreamingTechnologies, Vizrt Viz Engine and Viz Arena, vMix, VRI, x-dream-media, Zinemath zLense, and more.
In the Box
- Bluefish444 Epoch | Supernova CG
- Limited 2-Year Warranty
Table of Contents
- Description
- Key Features
- Low Latency
- Low-Latency Video Keyer
- 12-Bit Processing Pipeline
- RGB / YUV
- Thunderbolt Expansion Compatibility
- Pixel Formats
- IngeSTore Multi-Channel Capture Tool (Included)
- Software Compatibility
Bluefish444 Supernova CG Specs
| Host Connection | PCIe x4 (PCIe 1.0) |
| Shared Input/Output Connectors | 4 x BNC (HD-SDI / SD-SDI) |
| Input Video Format | SDI DCI 2K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
| Embedded Audio Input | SDI: 16-Channel |
| Output Video Format | SDI DCI 2K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/48/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
| Embedded Audio Output | SDI: 16-Channel |
Standards
| Video Standard Compliance | SMPTE 292M/295M/372M |
Connectivity
| Latency | SDI Input/Output: 1 Frame |
| Other I/O | 1 x BNC Reference Input |
Hardware
| OS Compatibility | macOS 10.8 or Later Windows 7 or Later Windows Server 2008 Windows Server 2012 R2 CentOS Ubuntu |
General
| Certifications | C-Tick, CE, FCC, ISO 9001, RoHS, as per Manufacturer |
| Dimensions | 7.87 x 4.72" / 200 x 120 mm |
| Weight | 9.17 oz / 260 g |
| Warranty Length | Limited 2-Year Warranty |
Packaging Info
| Package Weight | 0.835 lb |
| Box Dimensions (LxWxH) | 9.3 x 5.5 x 2.5" |
