Description

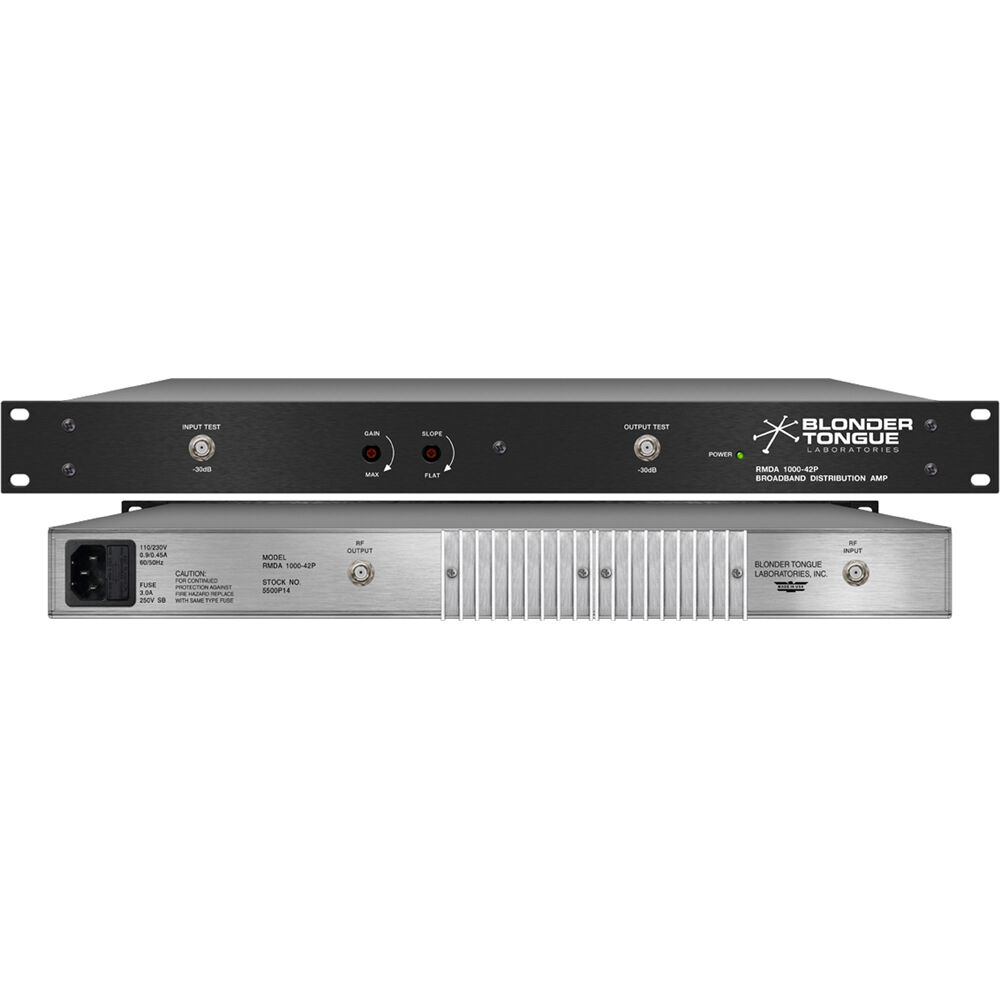

Blonder Tongue RMDA 1000-42P Overview
For use with hybrid CATV integrated circuits, this RMDA 1000-42P Rackmounted Distribution Amplifier with Power Doubling from Blonder Tongue has a frequency range of 54 to 1002 MHz and gain of 42 dB. The RMDA 1000-42P is useful for systems with a "cable drop" as the signal source or as the launch amplifier in a headend. Power doubling hybrid technology yields a high RF output with low distortion
Both gain and slope controls on the front panel provide fast setup and adjustment. Two -30 dB test ports, one input and one output, allow you to test the signal without interrupting the service. The unit has a 1 RU form factor and an aluminum chassis for improved heat dissipation for high-temperature operation without risk of performance degradation.
- Forward path bandwidth of 54 to 1000 MHz, gain of 42 dB
- Hybrid IC circuitry for high output with low distortion
- Power-doubling hybrid amplifier technology
- Front-panel gain and slow controls for easy adjustment
- Exceptional temperature stability through large heat sink design
Blonder Tongue RMDA 1000-42P Specs
| Video I/O | 1 x Coaxial F-Type Input 1 x Coaxial F-Type Output 1 x Coaxial F-Type Input 1 x Coaxial F-Type Output |
| Power Source | AC Input |
| AC Input Power | 110 to 230 VAC, 50 / 60 Hz at 0.45 to 0.9 A |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Mounting | 4 x Rackmount Screw Holes |
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions | 19 x 6.3 x 1.7" / 483 x 159 x 44 mm |
| Weight | 5.75 lb / 2.61 kg |
Blonder Tongue RMDA 1000-42P Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 116384.8 |
| 3-5 | ₹ 115197.2 |
| 5-10 | ₹ 112822.0 |
| 10+ | ₹ 110446.8 |
Bulk discount will be automatically applied during checkout based on quantity.
