Description

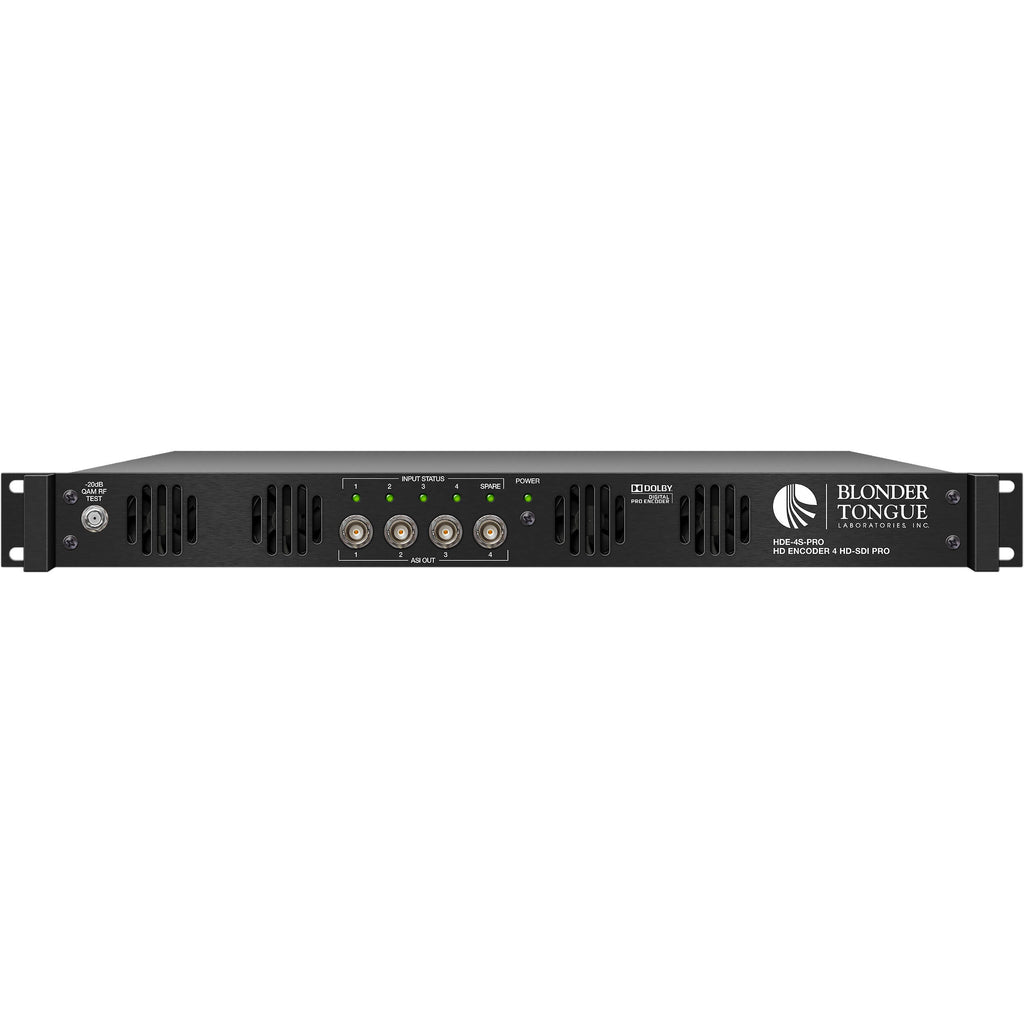

Blonder Tongue HDE-4S-PRO Specs
Key Specs
| Video I/O |
Input
Show More
4x BNC (HD-SDI) Female 1x RCA Female Output 4x BNC (HD-SDI) Female 4x BNC Female 1x BNC 1x BNC (HD-SDI) Female (Loop Output) 1x RJ45 LAN Female |
| Audio I/O |
Input
1x 2RCA Analog Female 4x RCA Female |
| Video Resolution |
BNC Input/Output (4:2:0 RGB, YCC)
Show More
1920 x 1080i at 29.97 fps 1280 x 720 at 59.94 fps 640 x 480i at 29.97 fps |
| Audio Format |
Unspecified Digital Signal Input/Output: 48 kHz
|
| Broadcast System Compatibility |
NTSC
|
| IP Video |
Encoding
Show More
1920 x 1080i at 29.97fps 1280 x 720 at 59.94fps 640 x 480i at 29.97fps |
| IP Audio |
Encoding
Dolby Stereo/PCM |
| Wireless |
No
|

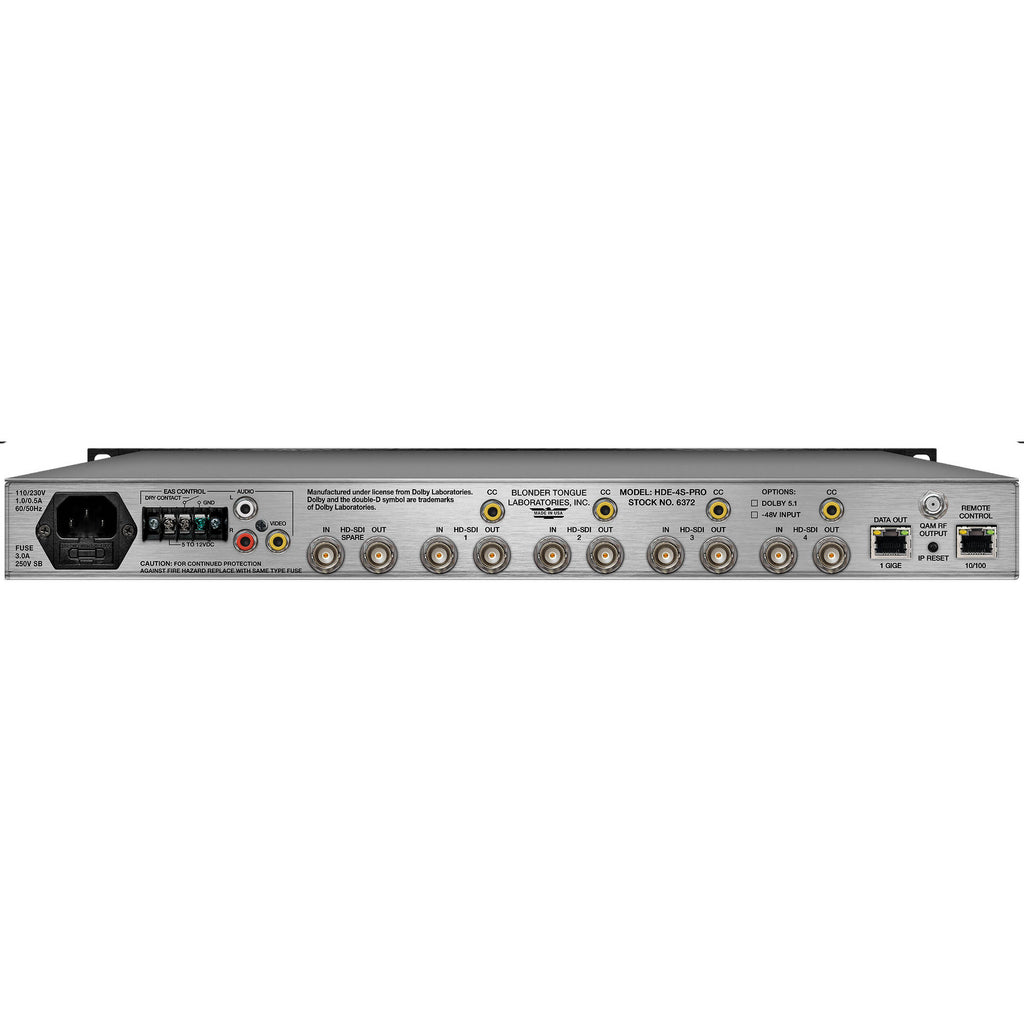

Inputs/Outputs
| Video I/O |
Input
4x BNC (HD-SDI) Female 1x RCA Female Output 4x BNC (HD-SDI) Female 4x BNC Female 1x BNC 1x BNC (HD-SDI) Female (Loop Output) 1x RJ45 LAN Female |
| Audio I/O |
Input
1x 2RCA Analog Female 4x RCA Female |
| Other I/O |
Input/Output
1x RJ45 (Control) |
| Expansion Slots |
No
|
| Latency |
No
|
Format Support
| Video Resolution |
BNC Input/Output (4:2:0 RGB, YCC)
1920 x 1080i at 29.97 fps 1280 x 720 at 59.94 fps 640 x 480i at 29.97 fps |
| Audio Format |
Unspecified Digital Signal Input/Output: 48 kHz
|
| Embedded Audio |
IP/SDI
|
Standards
| Video Standard Compliance |
SMPTE: 292M
|
| HDCP Support |
No
|
| HDR Support |
No
|
| HDMI CEC |
No
|
| Broadcast System Compatibility |
NTSC
|
IP Streaming
| IP Video |
Encoding
1920 x 1080i at 29.97fps 1280 x 720 at 59.94fps 640 x 480i at 29.97fps |
| IP Audio |
Encoding
Dolby Stereo/PCM |
| Transport Protocols |
RTP, UDP
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x IEC C14 (115 to 230 VAC up to 1 A) Input
|
| Power Consumption |
Device: 65 W
|
General
| Operating Conditions |
32 to 122?F / 0 to 50?C at 0 to 95% Humidity
|
| Storage Conditions |
-13 to 158?F / -25 to 70?C at 0 to 95% Humidity
|
| Rack Form Factor |
1 U
|
| Certifications |
ETSIEN 50083-9
|
| Dimensions |
19 x 18.1 x 1.8" / 483 x 460 x 45 mm
|
| Weight |
10.01 lb / 4.54 kg
|
Additional Resources
No additional resources available
