Description
Blonder Tongue DFCS Overview

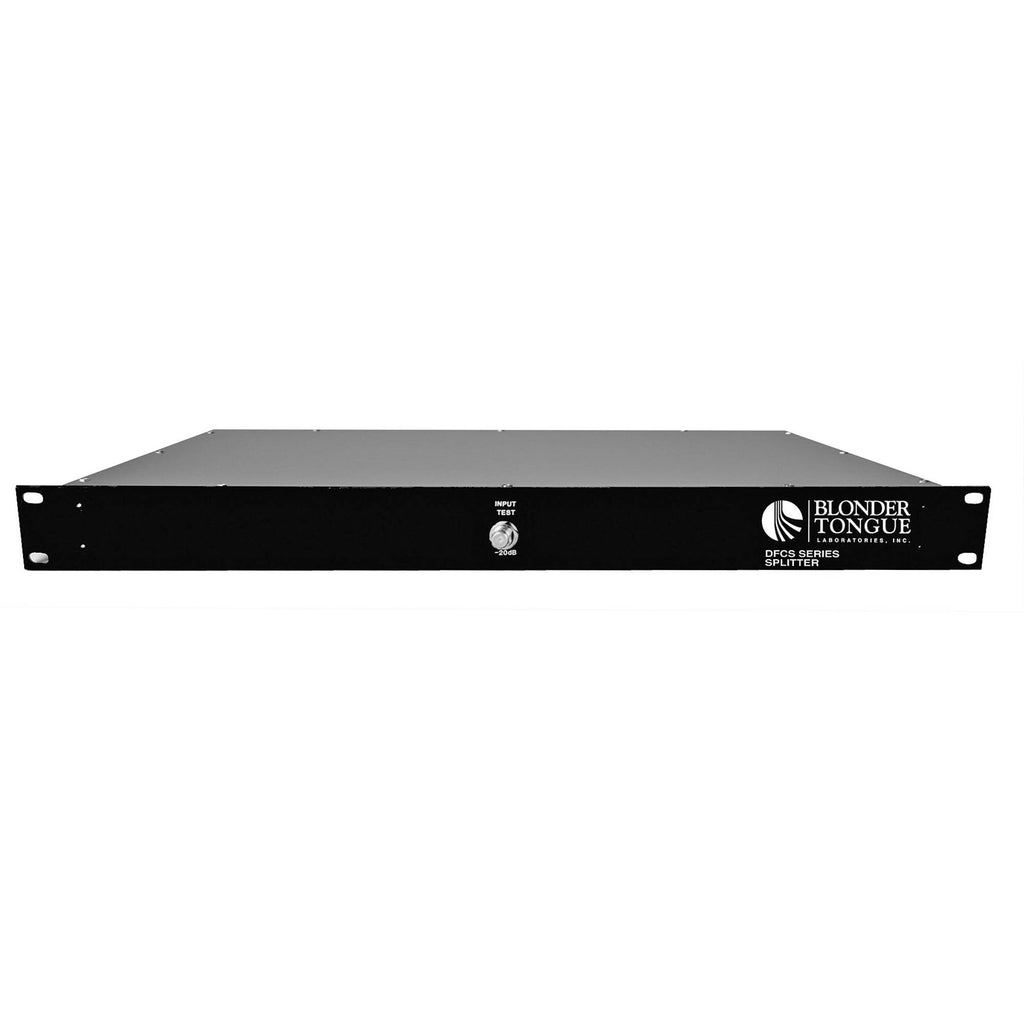

The 1 RU DFCS-32 32-Way RF Splitter from Blonder Tongue is a 5 to 1000 MHz passive splitter with one RF input and 32 RF broadband output ports. The splitter features high isolation between ports and low insertion loss. A -20 dB test port on the front panel allows testing while operating. Two or more units can be used to provide additional output ports. The device is a compact, 1.75" high unit designed for mounting in a standard 19" EIA rack.
In the Box
- Blonder Tongue DFCS-32 32-Way RF Splitter (1 RU)
- Limited 1-Year Manufacturer Warranty
Blonder Tongue DFCS Specs
| Frequency Range | 5 to 1000 MHz |
| Insertion Loss | 5 to 40 MHz: 17.2 dB 40 to 450 MHz: 17.5 dB 450 to 750 MHz: 19 dB 750 to 1000 MHz: 20 dB |
| Isolation | 5 to 40 MHz: 30 dB 40 to 450 MHz: 32 dB 450 to 750 MHz: 30 dB 750 to 1000 MHz: 28 dB Test-Point Loss: 20 dB |
| Input Return Loss | 5 to 750 MHz: 20 dB 750 to 1000 MHz: 18 dB |
| Output Return Loss | 5 to 750 MHz: 20 dB 450 to 1000 MHz: 18 dB |
| Connectors | 1 x F-Type Female, Input 1 x F-Type Female Test Input (Front) 32 x F-Type Female, Output |
| Impedance | 75 Ohms |
| Dimensions (L x W x D) | 19 x 1.75 x 8" / 483 x 44 x 203 mm |
| Weight | 7 lb / 3.18 kg |
Packaging Info
| Package Weight | 6.12 lb |
| Box Dimensions (LxWxH) | 23.6 x 12.2 x 4" |
