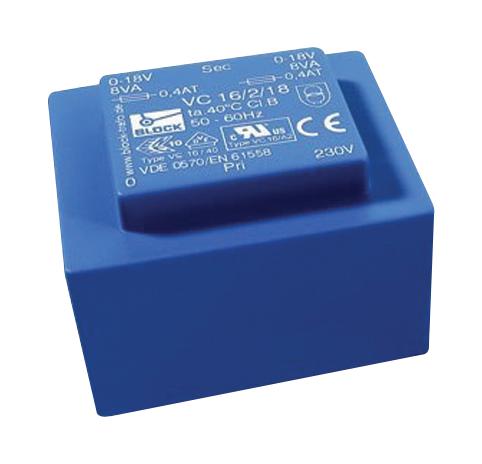

As a mains transformer for adjustment of the voltage and simple electrical isolation. As a safety transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage. Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation.
- Minimum size at high output
- Also with dual output voltage for series or parallel connection
- Self-extinguishing potting material
Product details
| PCB Transformer Type:
Encapsulated Safety Isolating
|
| Primary Voltages:
230V
|
| Secondary Voltages:
18V
|
| Power Rating:
16VA
|
| Frequency Range:
50Hz to 60Hz
|
| Winding Type:
Single Primary, Single Secondary
|
| Current Rating:
-
|
| Isolation Voltage:
-
|
| Transformer Mounting:
Through Hole
|
| Product Range:
VC Series
|
Other details
| Brand |
BLOCK |
| Part Number |
VC 16/1/18 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
