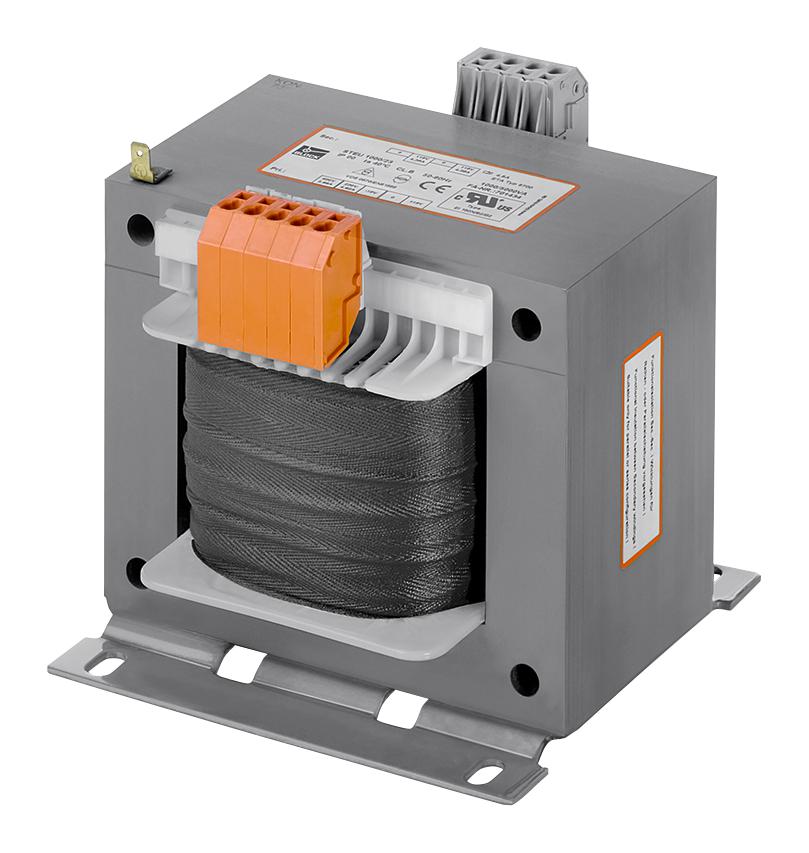

Block STEU160/48 STEU160/48 Chassis Mount Transformer Control Open Style and Safety Isolating 230V 400V 2 x 24V

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer is designed to supply control systems according to EN60204. As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.

• Very good corrosion protection and low noise thanks to vacuum impregnation
• Very good switch-on behaviour thanks to reduced starting currents
• Dual input voltage 230 and 400 Vac
• Primary side ±15 V tappings for voltage adjustment
• Quick to cable up thanks to the use of spring-clamp terminals
• High power density due to a compact construction design
• Contact protected screw connection terminals complying with UVV BGV A10
• Simple mounting thanks to robust metal footplate with oval slots

Applications

Power Management, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BLOCK
Part Number	STEU160/48
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
