Description
Blizzard Pipeline Splitterally 8 Overview

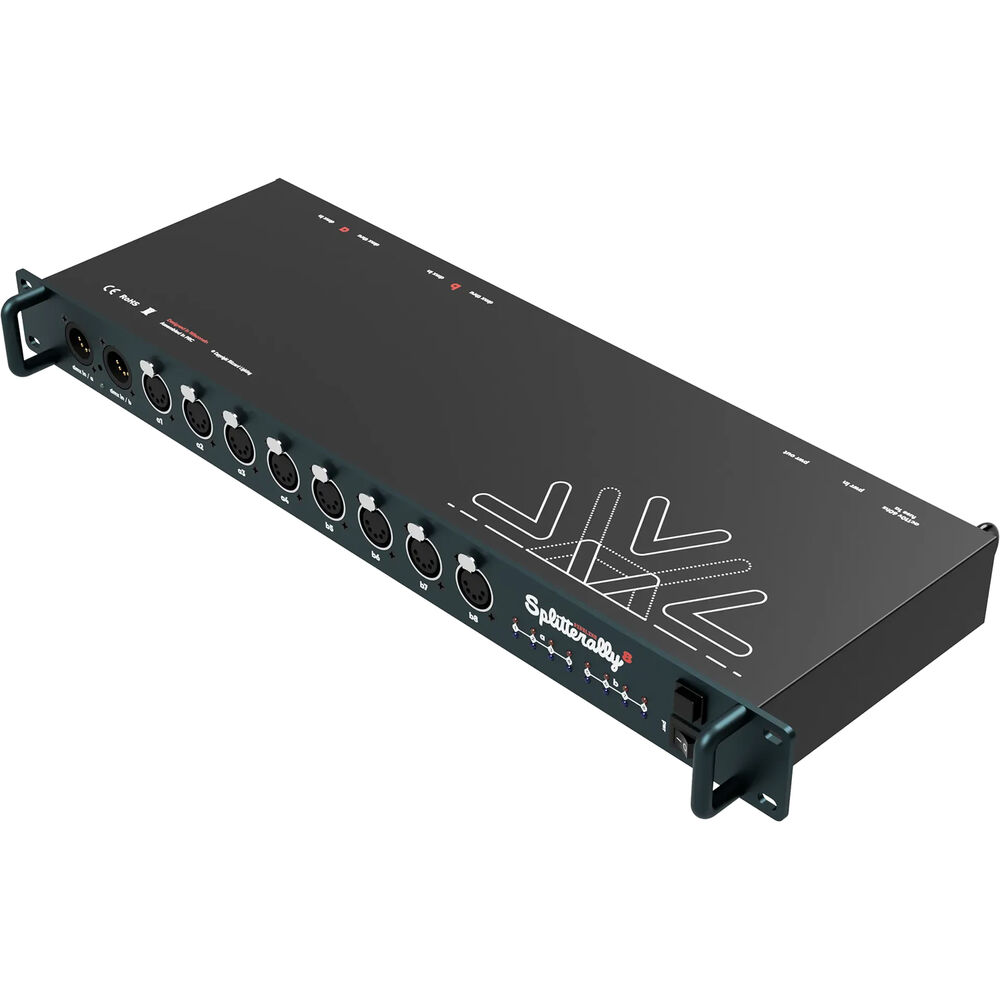

The 19" Pipeline Splitterally 8 Dual 4/8-Way DMX Splitter & Booster from Blizzard is a rack-mountable DMX device with 1x8 and 2x4 dual operation modes that boost DMX signals for long cable runs. Featuring rear DMX in A and B modes with thru connections and a front-panel mode selection switch, the device's 5-pin DMX inputs and outputs use LED indicators for signal monitoring. The compact device offers rugged durability with powerCON TRUE1 compatibility with safety loop and fuse protection for additional connection security. The lightweight fixture is designed with front-panel handles for easy transportation options.
Additional Features

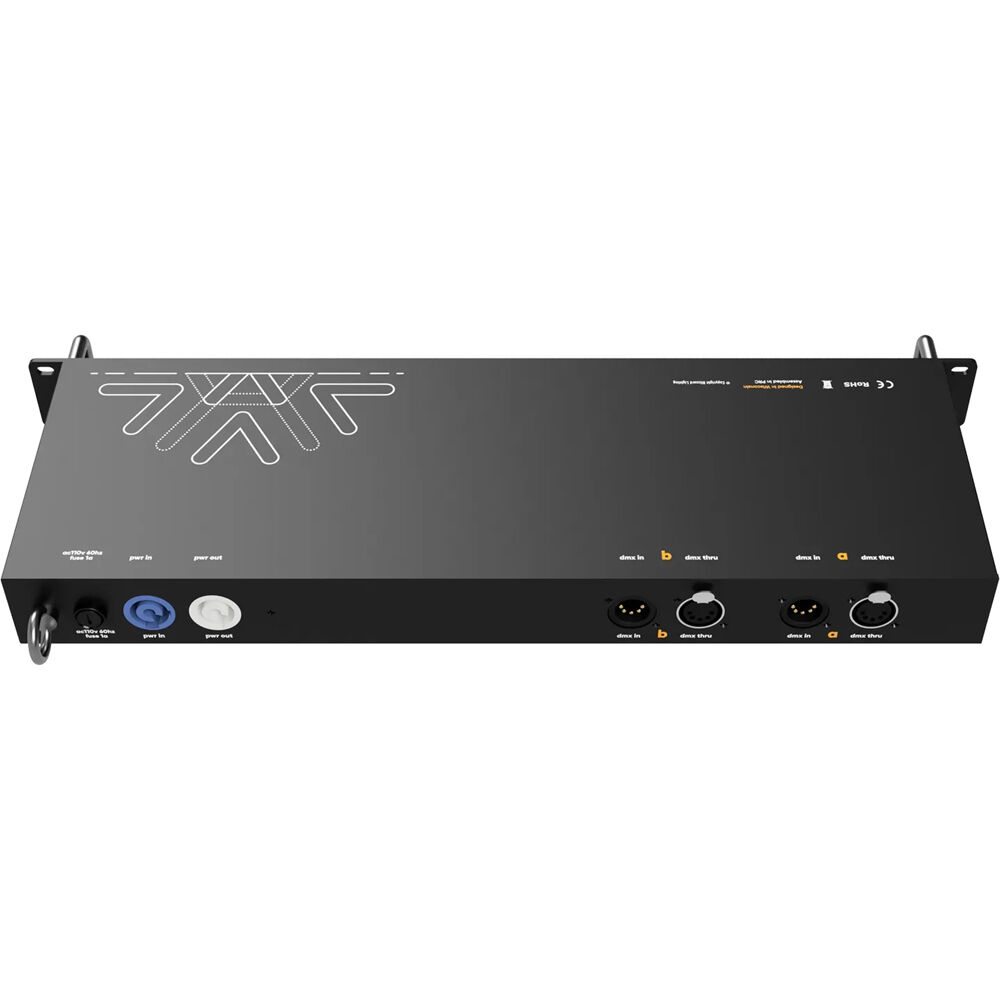

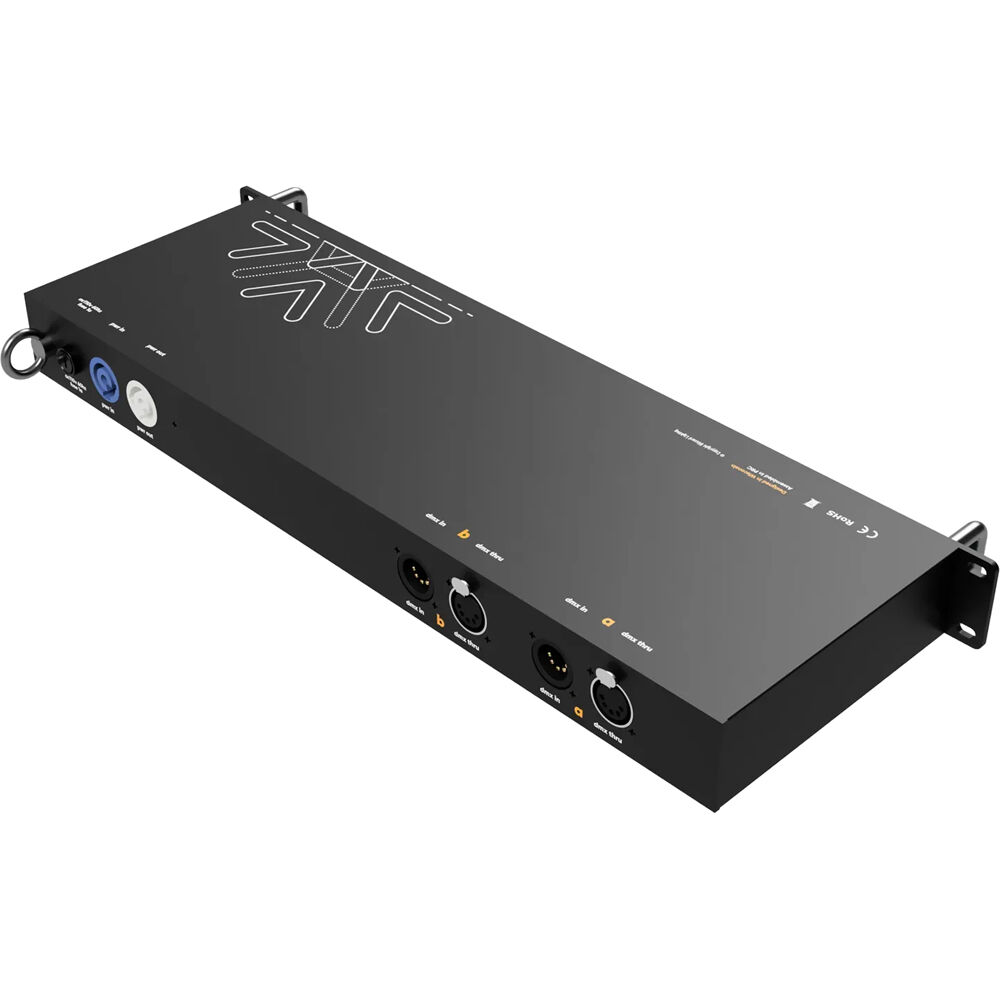

This device is compatible with all DMX512 equipment with electrical isolation between inputs and outputs. The device offers a variety of connectivity options with its clearly labeled connections, two 5-pin DMX inputs, eight 5-pin DMX outputs, and a powerCON TRUE1-compatible input and output.
UPC: 685450877206
Items Included
- Blizzard Pipeline Splitterally 8 Dual 4/8-Way DMX Splitter & Booster
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Blizzard Pipeline Splitterally 8 Specs
Key Specs
| Inputs/Outputs |
4x XLR 5-Pin (DMX) Male Input
8x XLR 5-Pin (DMX) Female Output 2x XLR 5-Pin (DMX) Female Throughput 1x (Power) powerCON Input 1x (Power) powerCON Output |
| Channels |
1024 (DMX)
|
| Power Source |
AC Power
|
| Protocol |
DMX512
|
General
| Inputs/Outputs |
4x XLR 5-Pin (DMX) Male Input
8x XLR 5-Pin (DMX) Female Output 2x XLR 5-Pin (DMX) Female Throughput 1x (Power) powerCON Input 1x (Power) powerCON Output |
| Channels |
1024 (DMX)
|
| Dimming |
Optional
|
Power
| Power Source |
AC Power
|
| Power Consumption |
4 W
|
| Input Power |
110 VAC, 60 Hz
|
| Fuse |
1 A 250 V
|
Compatibility
| Protocol |
DMX512
|
Physical
| Environmental Resistance |
No
|
| Rack Mount |
1 U
|
| Dimensions |
19.0 x 5.8 x 1.8" / 48.3 x 14.7 x 4.6 cm
|
| Weight |
5.8 lb / 2.6 kg
|
Packaging Info
| Package Weight |
6.89 lb
|
| Box Dimensions (LxWxH) |
21.6 x 8.2 x 3.2"
|
