Blizzard Motif Sketch IP65 Outdoor Tri-Color LED Wash Fixture (Black)

7 x High-Output 3W RGB LEDs

25° Beam Angle

100% Variable Electronic Dimmer

Built-In Color Presets and Auto Programs

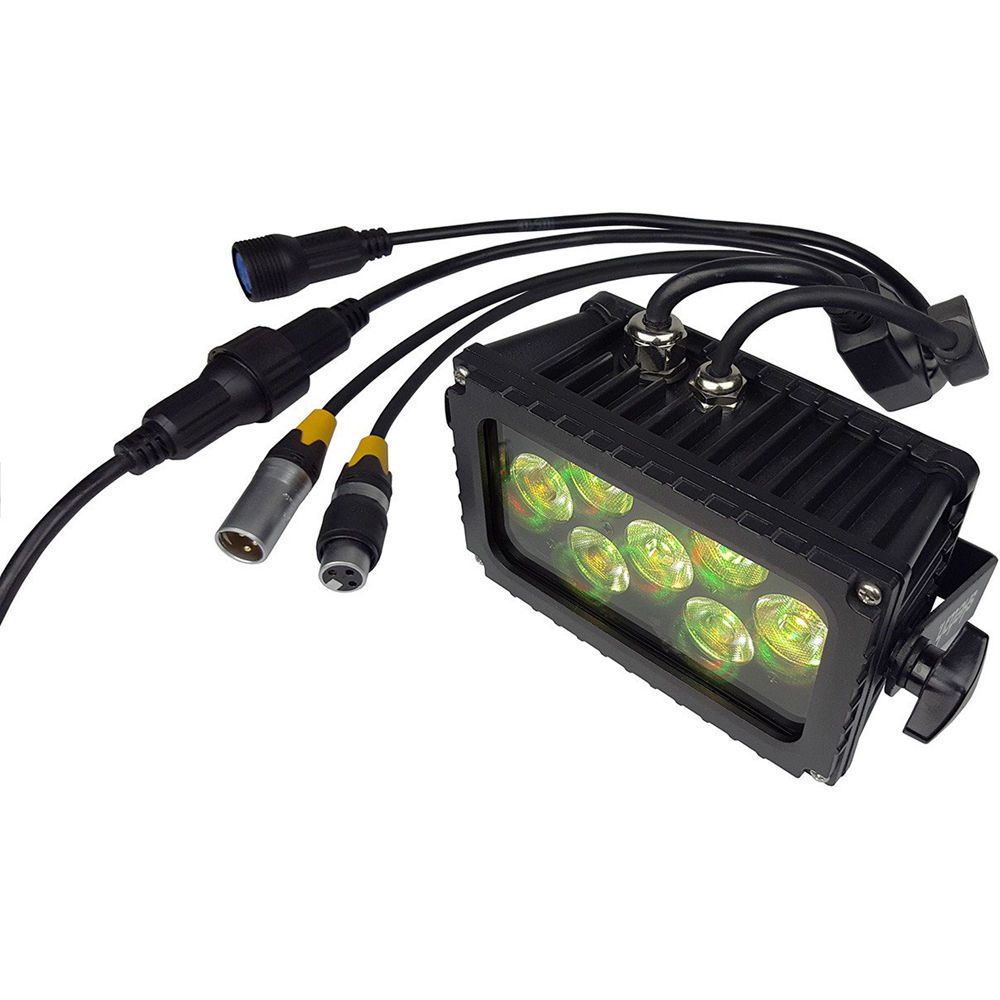

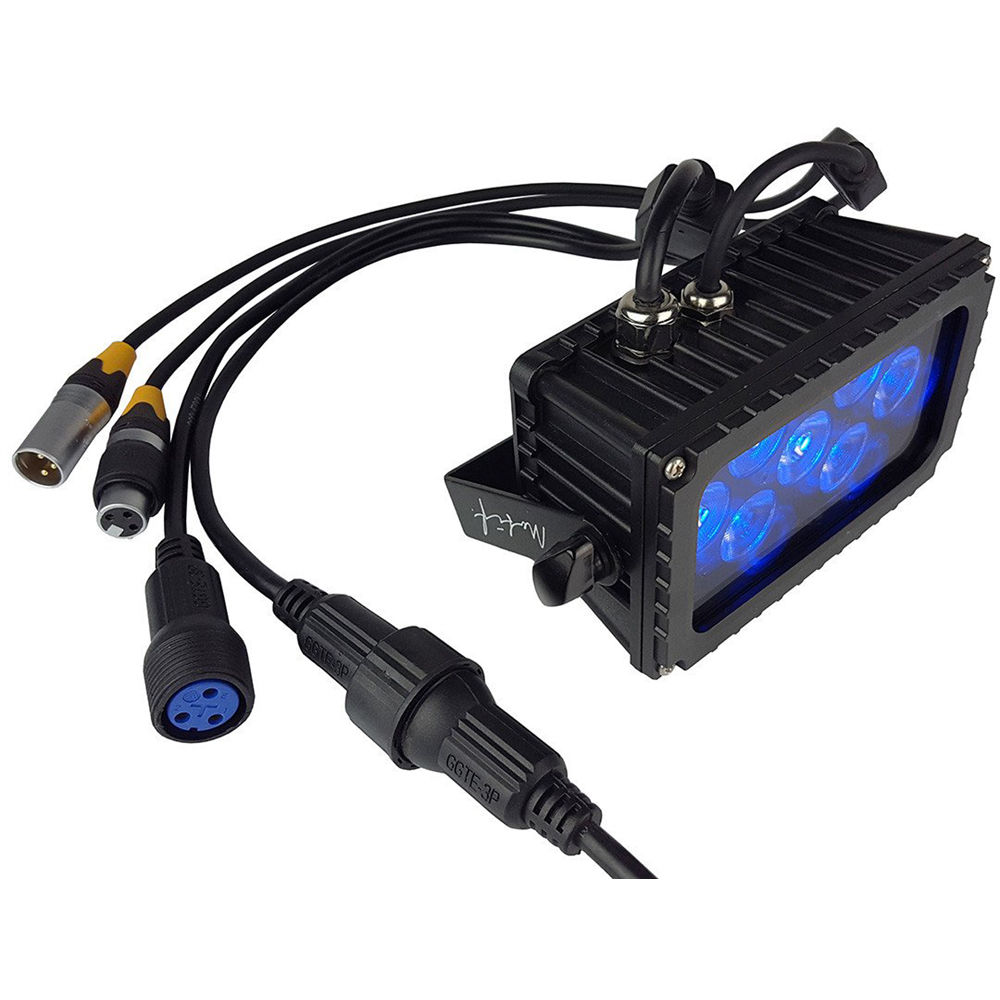

The black Blizzard Motif Sketch is a compact, rugged, IP65-rated LED fixture that's rated for outdoors and well suited for architectural lighting applications. The Sketch is powered by seven 3W TRI-color (RGB) LEDs, and it offers a wide pallet of colors from soft and gentle moods to stimulating breathtaking atmospheres.

The Motif Sketch can be controlled via the included IR remote control or from a single 3-channel DMX mode. The durable cast aluminum housing and tempered glass lens feature watertight internal gaskets to ensure it will handle the rigors of rugged, rough outdoor environments. The fixture utilizes IP-rated power pigtails and 3-pin DMX XLR connectors. The advanced heatsink is fanless for silent operation.

• Exceptional RGB color mixing from seven 3W TRI-color LEDs
• Fully controllable via IR remote control (included)
• Advanced heatsink design for zero fan noise
• Extended IP-rated power and DMX connections
• Secure mounting bracket
• Multiple built-in color presets and auto programs
• User-adjustable program speed and fade times
• 0 to 100% variable electronic dimmer
• Variable electronic strobe
• Durable cast aluminum housing
• Tempered glass lens and watertight internal gaskets

Lighting Type	LED Panel / Wash Light
Light Source	7 x Color LED - 3 W
Light Source Life Expectancy	100,000 Hours
Colors	7 x Red 7 x Green 7 x Blue
Photometrics	25°: 458.9 fc / 4940 lux at 3.28' / 1 m 120.8 fc / 1300 lux at 6.56' / 2 m
Beam Angle	25°
Shutter / Strobe	Electronic
Dimming	Electronic, 0 to 100%

Operating Modes	DMX, Master/Slave, Standalone
Macros / Programs	Color Temperature Preset
Effects	None
Gobos	None

Control Protocols	DMX512
DMX Channel Modes	1 Modes: 3-Channel
Remote Control	IR Remote (with Included Equipment)

Connectors

1 x Pigtail 3-Pin DMX Input 1 x Pigtail 3-Pin DMX Output

AC Input Power	100 to 260 VAC, 50/60 Hz
AC Power Connector	Input: 1 x Proprietary Output: 1 x Proprietary
Power / Current Consumption	23 W / 0.26 A

IP Rating	IP65
Operating Temperature	104°F / 40°C

Mounting	Mounting Bracket
Exterior Color	Black
Dimensions	6.29 x 3.54 x 2.78" / 159.77 x 89.92 x 70.61 mm
Weight	2.9 lb / 1.3 kg
