| ₹ 229275.0 includes GST and import duties. | |
| B2B customers can avail ₹ 34964.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Black Box MCXG2EC01 Overview
Extend and distribute AV, IR, RS-232, USB 2.0, and Ethernet signals with the MCXG2EC01 4K60 HDMI Copper Encoder from Black Box. Ideal for use in point-to-point video conferencing applications, government control rooms, and multi-monitor broadcasts, the unit supports the extension and distribution of AV signals up to DCI 4K60 with 4:4:4 color. Compliant with HDCP 2.3/1.4 and HDMI 2.0b, the package includes a UHD+ copper transmitter.
Uncompressed DCI 4K60 4:4:4 Video
The unit extends uncompressed DCI 4K60 4:4:4 video to an unlimited number of displays without sacrificing video quality or frame rate. It supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE), allowing AV and data to exist on the same network without reducing network performance, functionality, or capability.
Create Ergonomic Workflows for Operators

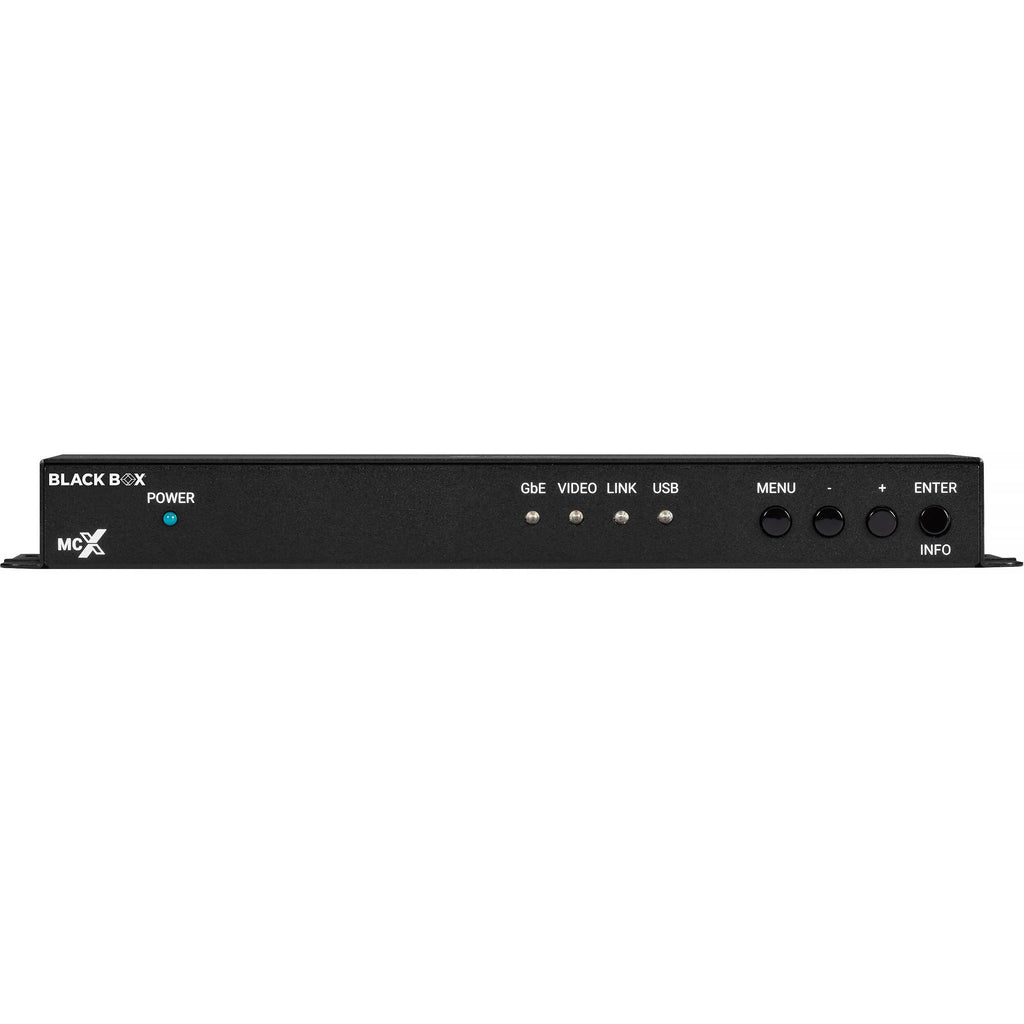

Front-panel configuration buttons and on-screen display (OSD) streamline workflows.
Zero Latency
Data transfer delay is indistinguishable. Encoding and decoding happen in real time (0.03 ms).
UPC: 822088150732

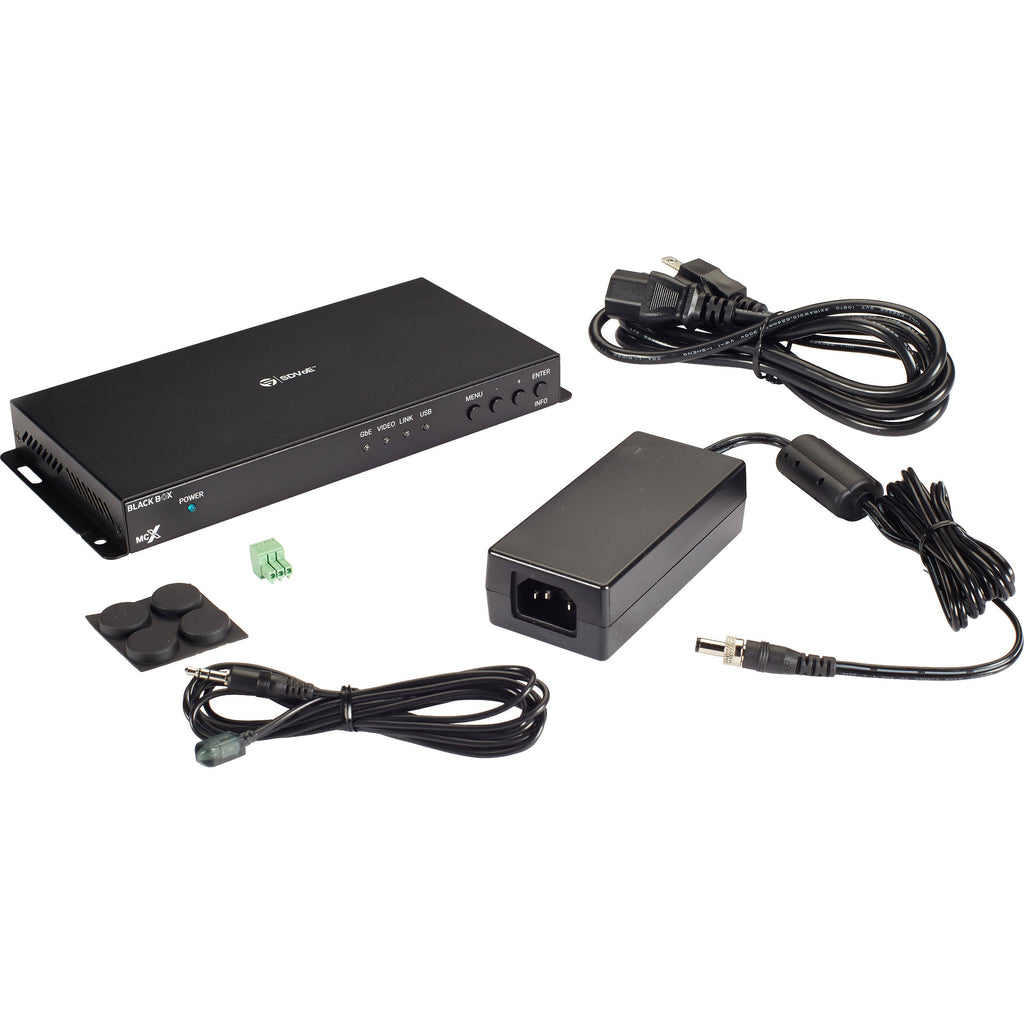

Items Included
- Black Box MCXG2EC01 4K60 HDMI Copper Encoder
- UHD+ Copper Transmitter
- 12 VDC, 3A Power Adapter
- Power Cord
- IR Transmitter
- 3-Pin Terminal Block
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Black Box MCXG2EC01 Specs
Key Specs
| Video I/O |
Input
1x RJ45 (Pass-Through) Input 1x HDMI 2.0 Output 1x HDMI 2.0 Input 1x USB-C Female |
| Embedded Audio |
HDMI/LAN (RJ45)
|
| IP Video |
Encoding/Decoding
640 x 480 to 4096 x 2160 at 24/25/30/50/60fps |
| Media/Memory Card Slot |
No
|
| Power Consumption |
14.3 W
|
Inputs/Outputs
| Video I/O |
Input
1x RJ45 (Pass-Through) Input 1x HDMI 2.0 Output 1x HDMI 2.0 Input 1x USB-C Female |
| Audio I/O |
Input/Output
1x 1/8" / 3.5 mm TRS |
| Other I/O |
Input/Output
1x RJ45 (10 GbE) 1x RJ45 (LAN) 3x USB-A 2.0 Input 1x 1/8" / 3.5 mm (IR) Output 1x 1/8" / 3.5 mm (IR) |
Format Support
| Embedded Audio |
HDMI/LAN (RJ45)
|
Standards
| HDCP Support |
Yes: Version 1.4/2.3
|
| Broadcast System Compatibility |
NTSC, PAL
|
IP Streaming
| IP Video |
Encoding/Decoding
640 x 480 to 4096 x 2160 at 24/25/30/50/60fps |
Hardware
| Media/Memory Card Slot |
No
|
| Cellular Support |
No
|
Power
| Power I/O |
1x Barrel (12 VDC ) Input
|
| Power Consumption |
14.3 W
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
24 to 284?F / -4 to 140?C at 20 to 90% Humidity
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
8.5 x 4.3 x 1" / 215 x 108 x 25 mm
|
| Weight |
2 lb / 916 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 224689.5 |
| 3-5 | ₹ 222396.75 |
| 5-10 | ₹ 217811.25 |
| 10+ | ₹ 213225.75 |
Bulk discount will be automatically applied during checkout based on quantity.
