Description
- 2048 x 1152 Maximum Resolution
- EDID Learning Functionality
- Audio Inventory Feature
- Built-In Rotary Switch
- 15 Different Sets of EDID Data Storage
- PC, AV, and Memory Modes

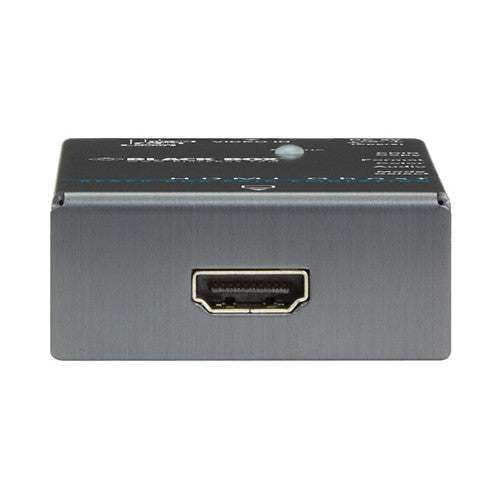

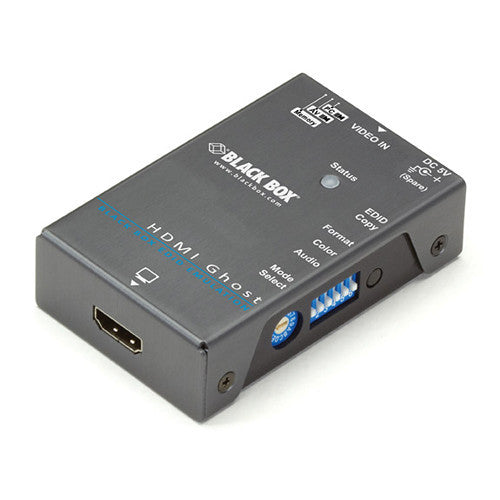

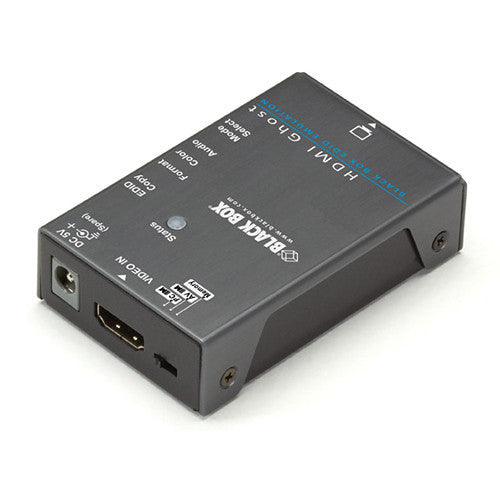

The HDMI EDID Ghost from Black Box optimizes video output for any display. It learns Extended Display Identification Data (EDID) from a display and ensures that your video source conforms to optimal resolution settings. The Ghost function saves the EDID of your displays and enables the source to boot with the correct settings. The unique audio inventory feature provides 5.1 and 7.1 channel audio EDID learning. A built-in rotary switch allows you to manually select and compare video resolution.
- Displays either the default or the copied EDID on connected displays
- EDID learning functionality prevents computers from deactivating ports
- Audio Inventory feature provides 5.1 channel and 7.1 channel audio EDID learning; designed for home theater applications
- A built-in rotary switch enables you to manually select and compare video resolution
- Works in three separate modes that includes PC, AV, and memory mode
- Records and stores up to 15 different sets of EDID
- EDID optimizes video card output for the capabilities of the end display. This device enables the copying, emulating, cloning, and learning of EDID from a display
- Works with devices, such as Blu-ray DVD players, game consoles, HD set-top boxes, LCD displays, and digital TVs
- To match the display, go into the video settings table and change the video output in PC

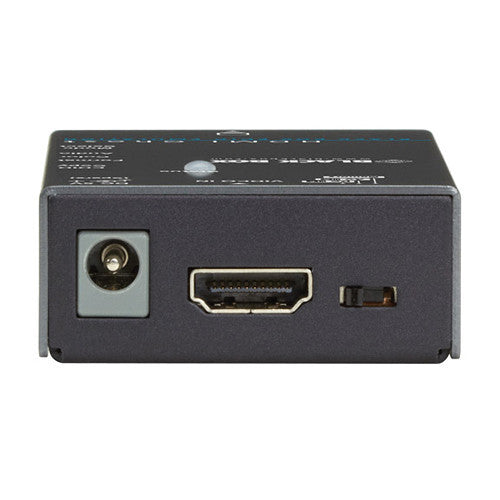

| Connectors | Input: 1 x HDMI female Output: 1 x HDMI female Power: 1 x 5 VDC barrel connector |
| Housing | Metal |
| Memory | 15 preset settings |
| Resolution | Full HD: 1920 x 1080, 2048 x 1152 |
| LED Indicators | 1 x multiple-color status LED |
| Power | 5 VDC; may also receive power from the video source |
| Approvals | CE, RoHS |

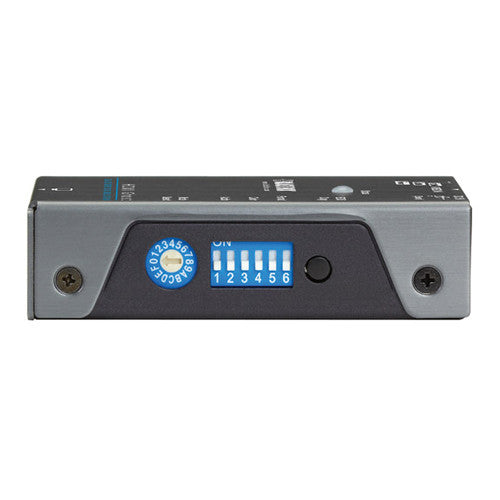

| User Controls | 1 x Push Button: EDID Copy 1 x Rotary Switch: 16 x default settings and 15 x sets of inventory 1 x Slide Switch: PC/AV/Memory mode selection 6 x 2-Position DIP Switch: Positions 1 and 2: Audio Positions 3 and 4: Color Positions 5 and 6: Format |
| Dimensions (W x H x D) | 2.0 x 0.9 x 3.2" (5.0 x 2.2 x 8.1 cm) |
| Weight | 4.8 oz (136.0 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 6.142 x 4.016 x 1.969" |
In the Box
Black Box HDMI EDID Ghost
- USB Power Cable
- User Manual CD
- Foot Pad Set
- Limited 1-Year Warranty
