Description
Black Box EMS1G48 Overview
- 1Description
- 2Reliable Design
- 3Digital Video
- 4Virtualization
- 5Management

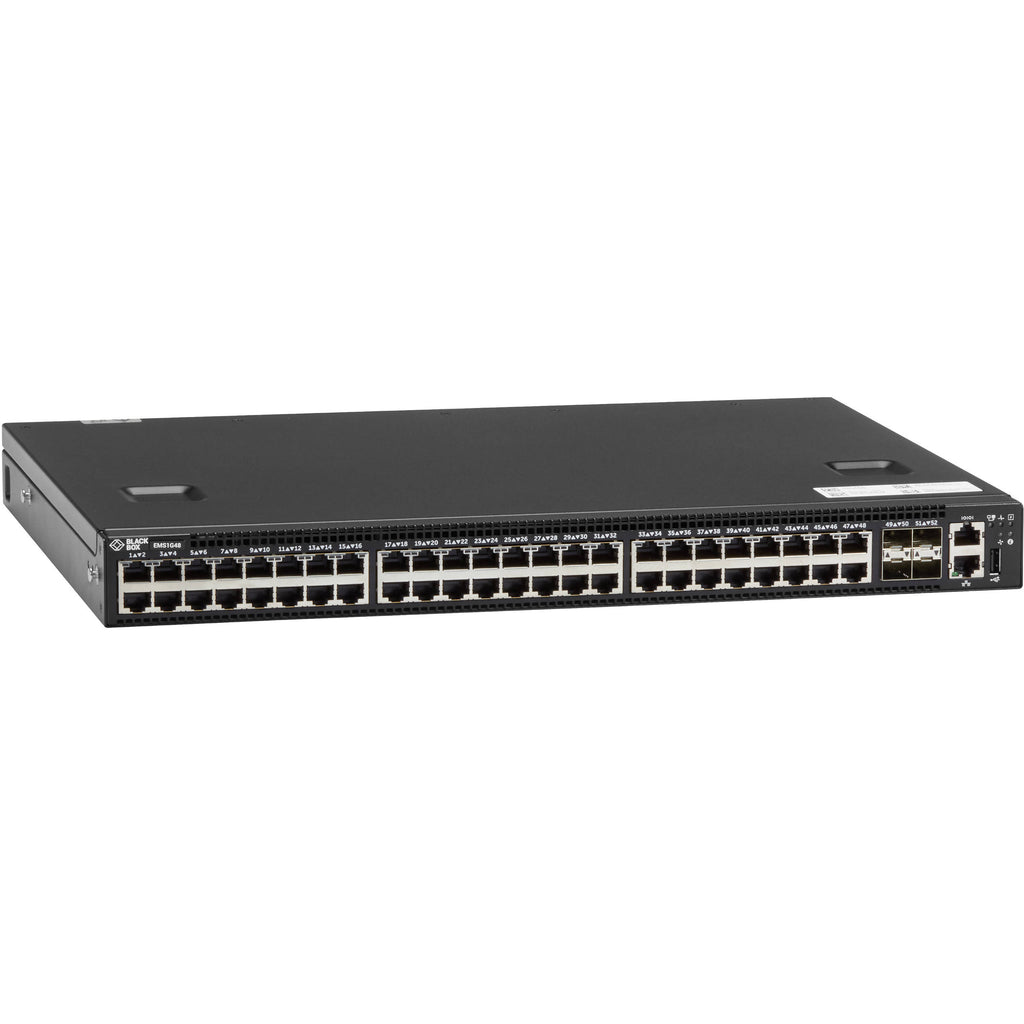

Designed to complement the Black Box Emerald HD/4K KVM system, the Emerald EMS1G48 48-Port Gigabit Managed Network Switch offers your business reliable, scalable performance. In addition to featuring 48 Gigabit-speed Ethernet ports, four SFP+ slots are available for up to 10 Gb/s fiber uplink connections. Simply adding more endpoints allows you to quickly expand your network to meet growing needs.
Reliable Design
48 Gigabit Ethernet ports ensure trouble-free KVM over IP extension and matrix switching connections with a 260 Gb/s switching capacity and 131 Mpps forwarding rate.
Digital Video
The Emerald KVM platform supports clear, crisp 4K DisplayPort video at 60 Hz over standard IP network switches. Image transmission with mathematical lossless compression visualizes every pixel at up to 60 fps with a 10-bit color depth.
Virtualization
More physical servers are being replaced by virtualization, allowing better performance, availability, scalability, and return on investment. Emerald simplifies access to both physical and virtual servers with virtual machine support for VMware, Microsoft, and Citrix, using RDP 8.1, RemoteFX, PCoIP, and others.
Management
Emerald supports two ways to manage the system: locally via the receiver's OSD or the Boxilla central KVM manager. Emerald, in combination with Boxilla, enables timesaving, controllable presets, and multi-user settings. Monitor network usage, define user access rights, and set up automated intrusion alerts. You can also pool designated CPU resources, allowing for user selection by type of server/PC/desktop rather than by individual dedicated resource. Even more important, you can prepare for instantaneous recovery from disasters with one-click access to an entire backup control room in a different location. The KVM main control room configuration can be replicated anywhere you have a network connection.

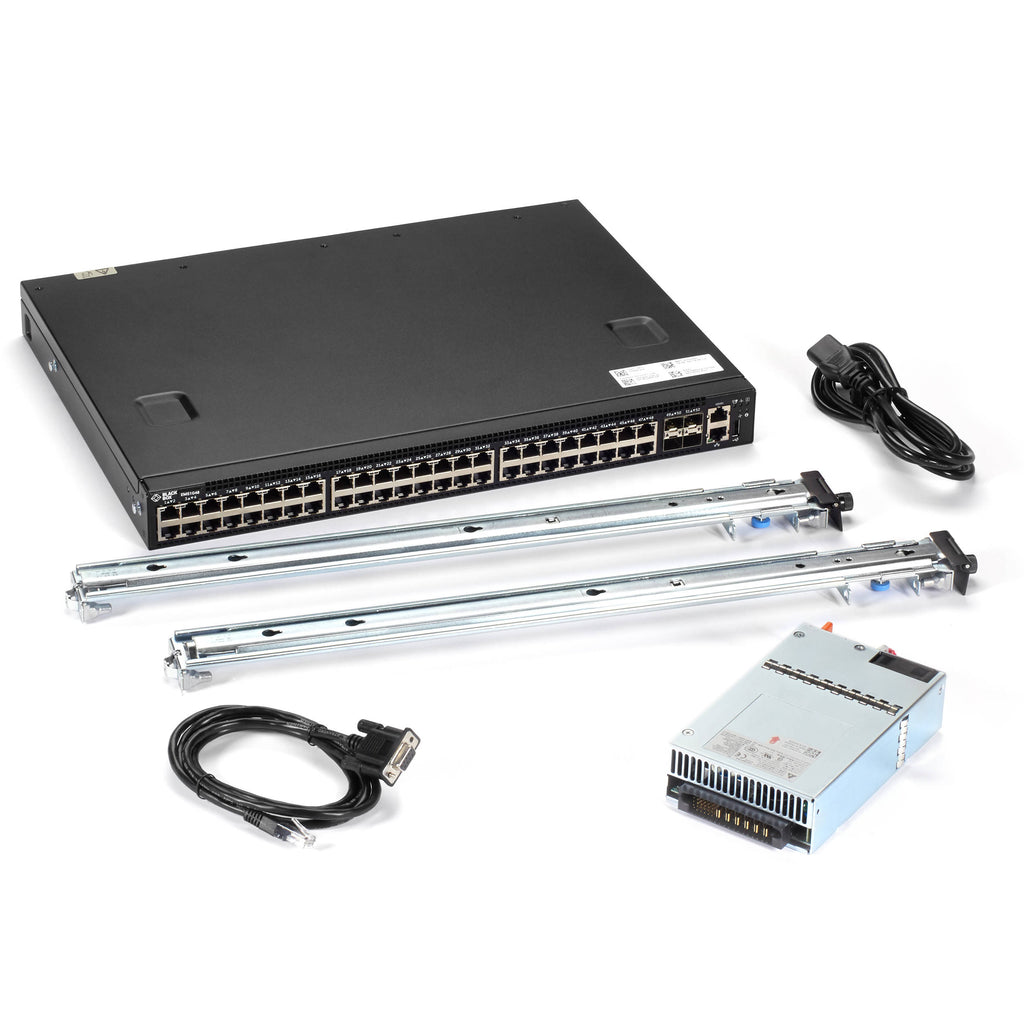

In the Box
- Black Box Emerald EMS1G48 48-Port Gigabit Managed Network Switch
- Power Supply
- Power Cable
- Rack Rail Set
- RJ45 to DB9F Console Cable
- USB-A to USB-B Cable
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Reliable Design
- Digital Video
- Virtualization
- Management
Black Box EMS1G48 Specs
Key Specs
| Inputs/Outputs |
48 x RJ45 Gigabit Ethernet
4 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) |
Interfaces
| Inputs/Outputs |
48 x RJ45 Gigabit Ethernet
4 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
IPv4
IPv6 Port Mirroring RADIUS |
| Queuing |
Deficit Weighted Round Robin (DWRR), Strict Priority, Weighted Round Robin (WRR)
|
| MAC Address Table Size |
80K
|
| VLAN IDs |
4000
|
Security
| Security Features |
DHCP Snooping
RADIUS Authentication |
| SNMP Support |
1, 2
|
Performance
| Latency |
1.8 to 3.7 µs
|
| Forwarding Rate |
131 Mpps
|
| Switching Bandwidth |
260 Gb/s
|
| Packet Buffer |
4 MB
|
Computer
| Memory |
2 GB
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
5 to 85% ()
|
| Storage Temperature |
-40 to 316°F / -40 to 158°C
|
General
| Certifications |
CE, UL, CSA, EN, FCC
|
| Dimensions |
17.1 x 12.6 x 1.7" / 43.4 x 32 x 4.4 cm
|
| Weight |
12.8 lb / 5.8 kg
|
