| ₹ 71835.0 includes GST and import duties. | |
| B2B customers can avail ₹ 10954.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Extends USB 2.0 Over CatX UTP Cable
- 4 x USB 2.0 Type-A Ports
- Supports up to 30 USB Devices
- Up to 1A of Power per Port
- Data Transfer Speeds up to 480 Mb/s
- Plug-and-Play
- Windows and Mac Compatible
Bring your USB devices where you need them using the 4-Port USB 2.0 Type-A over CatX Extender from Black Box . This two-piece extender unit provides you with four USB 2.0 Type-A ports that can support up to 30 USB devices, at a range of 330', using a Cat5e UTP (or better) cable for connectivity. Its plug-and-play capability means that it is ready to use right out of the box, and is compatible with both Windows and Mac PCs. Once set up, you'll be able to transfer data at speeds of up to 480 Mb/s, and charge USB devices with 1A of power per port. Use it to connect KVM switches, security cameras, devices for sharing, and more.
- Possible Applications
-
- Industrial control
- KVM extension
- Digital signage
- Remote desktop USB connections
- Security web camera and access control
- Medical device connectivity
- USB web device sharing: Printing, scanning, storage
UPC: 822088123101
In the Box

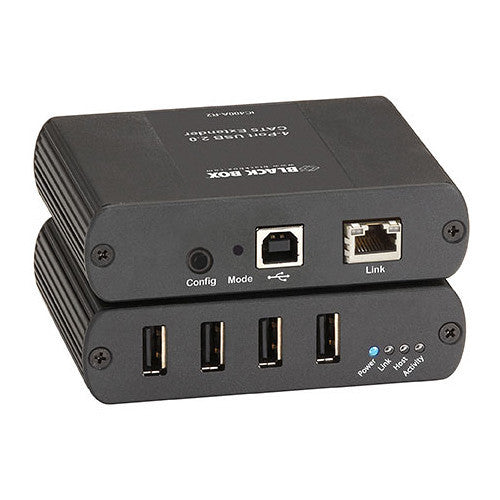

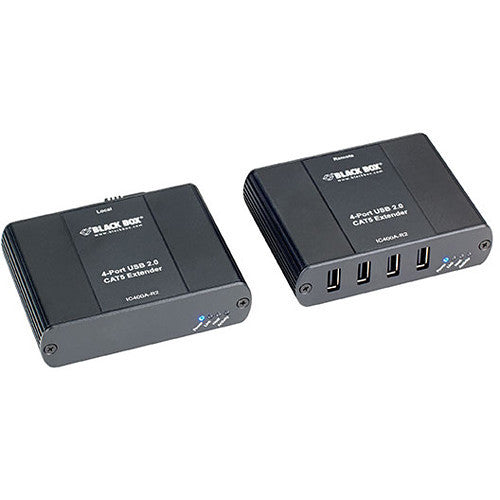

Black Box 4-Port USB 2.0 Type-A over CatX Extender (330')
- Local Extender Module
- Remote Extender Module
- USB Cable (6.6')
- Power Adapter
- USB Power Cord
- Limited 2-Year Warranty

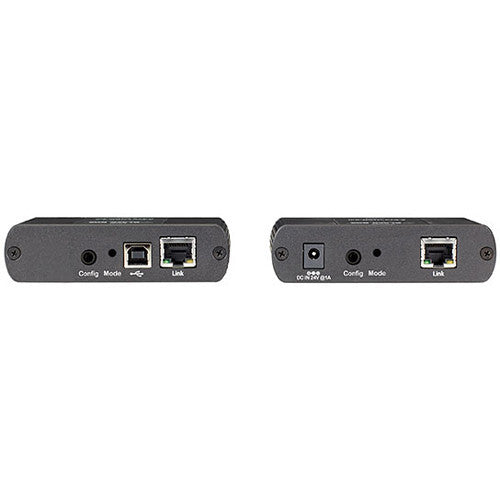

| Connectivity | Local Unit: 1 x USB Type-B 1 x RJ45 Remote Unit: 4 x USB Type-A 1 x RJ45 Connects up to 30 USB devices |
| Range | Up to 330' / 100 m over Cat5e (or better) cable |
| Power | 24 VDC @ 1 A per port |
| Environmental Specifications | |
|---|---|
| Operating Temperature | 32 to 122�F / 0 to 50�C |
| Operating Humidity | 20 to 80%, non-condensing |
| Storage Humidity | 10 to 90%, non-condensing |
| General | |
|---|---|
| Standards | RoHS, FCC (Class B), IC (Class B), CE (Class B) ESD Rating: EMC EN-61000-4-2:2001, 4 kV (contact), 8 kV (air) |
| Dimensions | 1 x 3.9 x 3" / 2.5 x 9.9 x 7.6 cm |
| Weight | 3.1 lb / 1.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 1.95 lb |
| Box Dimensions (LxWxH) | 9.6 x 7.7 x 3.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 70398.3 |
| 3-5 | ₹ 69679.95 |
| 5-10 | ₹ 68243.25 |
| 10+ | ₹ 66806.55 |
Bulk discount will be automatically applied during checkout based on quantity.
