Description
- Distributes DVI Signal to 2 Displays
- Supports Up to 1920 x 1200 and 1080p
- 3.5mm Stereo Jacks for Separate Audio
- Supports Cable Lengths Up to 16.4 ft
- Supports Cascading Two Levels Deep
- HDCP Compliant
- Compatible with EDID-Capable Screens
- Switches to Power-Save Upon Signal Loss

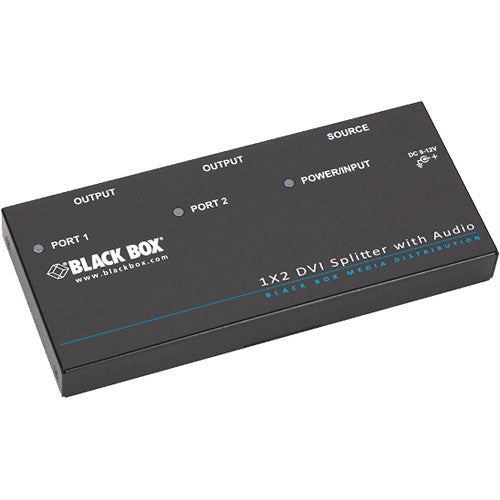

The Black Box 1 x 2 DVI-D Splitter with Audio & HDCP distributes a DVI signal simultaneously to up to two DVI displays, in resolutions up to 1920 x 1200 and 1080p HDTV. It supports input/output cable lengths up to 16.4 ft and can be cascaded two levels deep with additional Black Box DVI splitters with audio and HDCP (1 x 2, 1 x 4, 1 x 8).

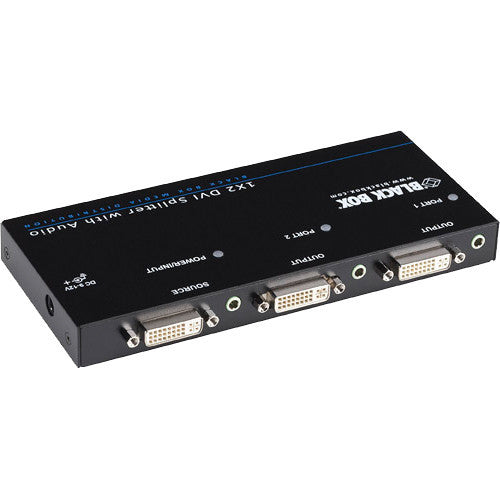

Beside each DVI port is a 3.5mm stereo audio jack for passing independent audio, useful for digital signage applications where you may benefit from audio communication. The splitter is fully HDCP compliant for compatibility with all Blu-ray players, cable boxes, and other devices..
- Features
-
- Distributes a DVI signal to up to two DVI displays
- Supports resolutions up to 1920 x 1200 and 1080p HDTV
- Supports input/output cable lengths up to 16.4 ft
- 3.5mm stereo audio jacks for separate audio
- HDCP compliant
- Can be cascaded two levels deep with additional DVI splitters with audio and HDCP
- Compatible with EDID-capable screens
- Power/Status dual color LED indicator; output LED indicators
- Automatically switches to power-save mode if the input signal is lost
- No software required; plug and play installation
UPC: 822088055976
| Distance Supported | Input/output: 16.4 ft (5 m) |
| Resolutions Supported | Up to 1920 x 1200 (WUXGA) and 1080p |
| Standards | DVI-D Single Link |
| HDCP | Yes |
| Approvals | CE, RoHS |
| Input | 1x DVI-D 1x 3.5 mm stereo audio |
| Output | 2x DVI-D 2x 3.5 mm stereo audio |
| Power | Input: 100-240 VAC, 50-60 Hz Output: 9 VDC, 0.6 A Consumption (max): 2.8 W |
| Dimensions | 0.8 x 7.1 x 3.3" (2 x 18 x 8.4 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.85 lb |
| Box Dimensions (LxWxH) | 8.661 x 4.173 x 3.937" |
In the Box
Black Box 1 x 2 DVI-D Splitter with Audio & HDCP
- Power Supply
- User Manual
- Rubber Feet for Desktop Mounting
- 1-Year Limited Warranty
