Description
Bittree Mono-Spaced Audio Patch Panel E3 Overview

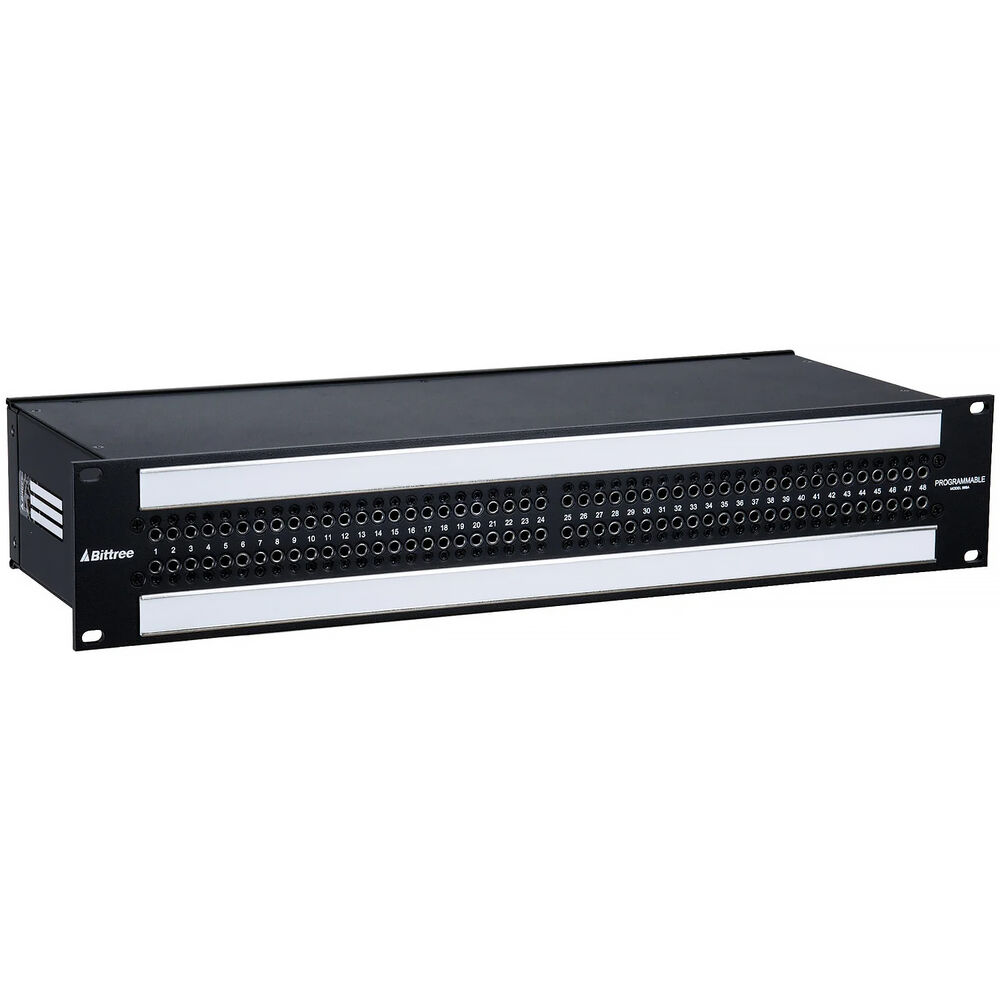

The 2 RU 2x48 Mono-Spaced Audio Patch Panel with E3 Connectors & Two Over/Under Type Designation Strips from Bittree is a front-selectable audio patch bay housed in a 7" deep chassis, featuring a high-density 2x48 configuration with rear E3 (3-pin ELCO) connectors. The unit boasts digital AES internal wiring and offers full normal, bussed grounds. The 1 to 48 left-to-right numbering scheme provides users with easy circuit identification.
At a Glance
- High-density 2x48 mono jack spacing
- Full normal, bussed grounds
- Circuits can be easily changed via shunts under both designation strips
- Digital AES wire used for internal wiring
- 1-48 left-to-right numbering on front panel for easy circuit identification
- Two DS800-10SA-ASSY designation strip assemblies, for Over/Under orientation
- Mounting hardware included
- 7" deep rear-facing bar included with E3 rear interface
Items Included
- Bittree 2 RU 2x48 Mono-Spaced Audio Patch Panel with E3 Connectors & Two Over/Under Type Designation Strips (7" Deep Chassis)
- 2 x DS800-10SA-ASSY Patch Bay Designation Strip

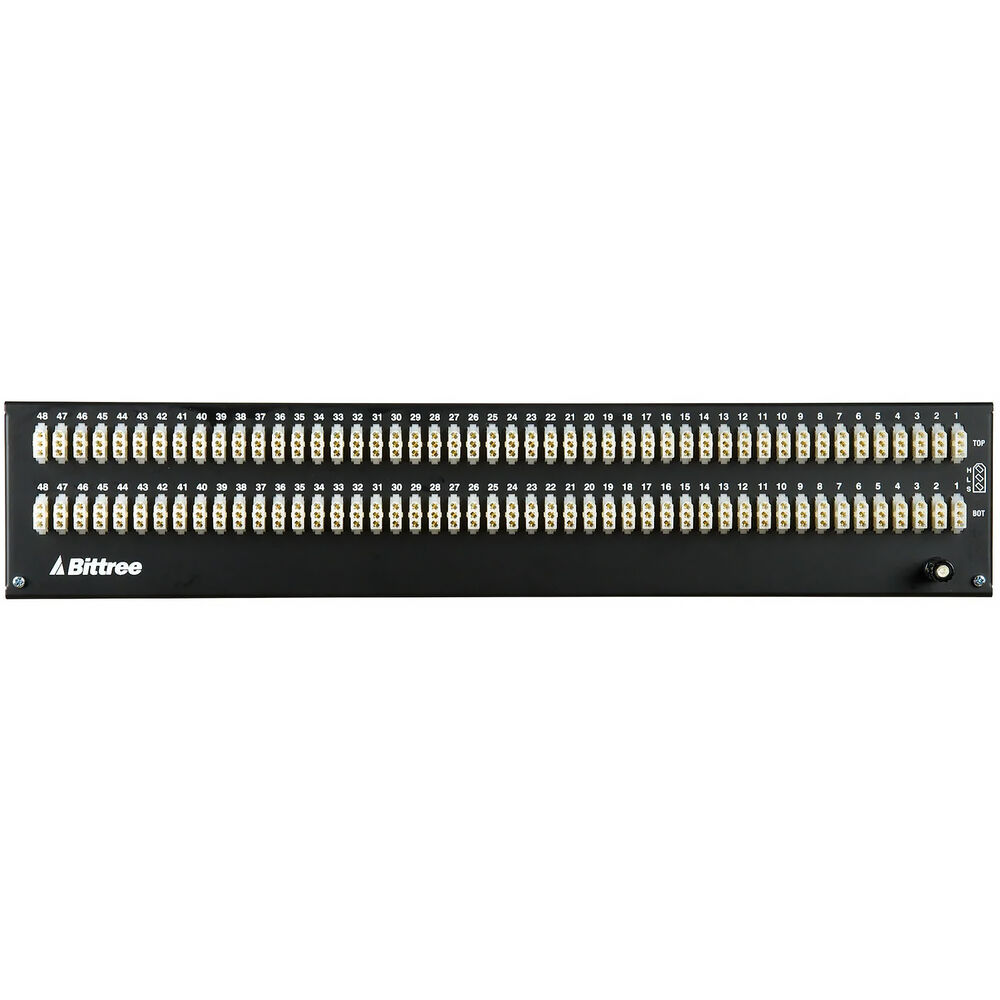

- Rear Interface with E3 3-Pin ELCO Connectors
- Mounting Hardware
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Bittree Mono-Spaced Audio Patch Panel E3 Specs
General
| Connectivity |
2 x 48 TT (Bantam) 969a Series Connector
Rear Interface: e# (3-Pin ELCO Connectors) |
Physical
| Mounting |
4x Rackmount Screw
|
| Color |
Black / White
|
| Material of Construction |
Aluminum, Stainless Steel, Polycarbonate Plastic, Styrene
|
| Certifications |
RoHS
|
| Dimensions |
17.5 x 7 x 3.5" / 444 x 177.8 x 88.1 mm
|
