BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder

Ultracompact Form with HDMI 2.0 Input

Supports up to UHD 4K30, 1080P60

PoE, Sony L-Series & DC Power Options

15W DC Output to Power Monitor or Camera

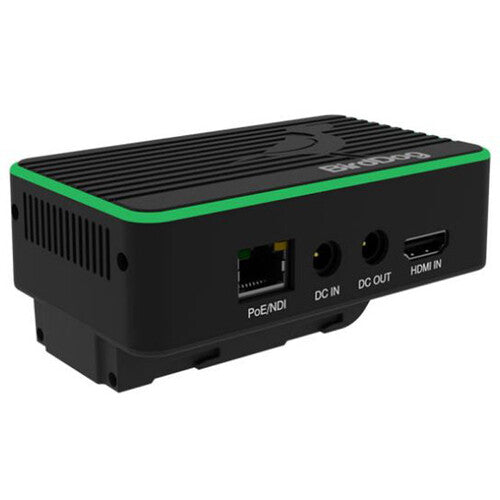

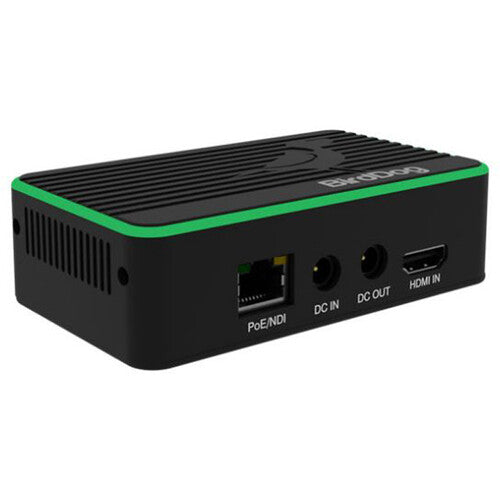

The Flex 4K BACKPACK HDMI Encoder from BirdDog is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it available instantly on your NDI-enabled network. The BirdDog BACKPACK supports up to UHD 4K30 and 1080p60 resolution video.

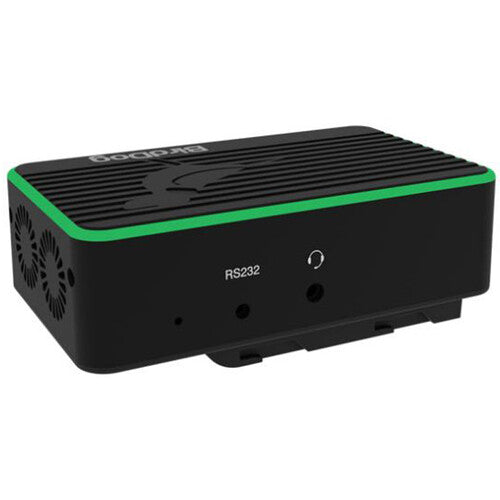

The versatile BACKPACK can be powered using a Sony L-Series-type battery, PoE, or a separately available 12V power supply. A 15W DC output port enables you to power select monitors and cameras from your BACKPACK power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bitrate, a cooling thermal design, a 3.5mm audio input, and a 3.5mm headphone output.

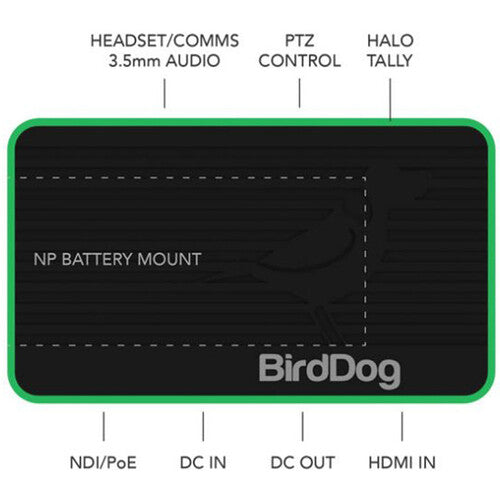

Upgrade Your Monitor Use the BACKPACK to encode NDI, power your monitor, and record simultaneously Ultracompact Form The BACKPACK is slightly larger than a credit card and weighs just over five ounces Stay-Cool Design A thermal design and quiet fans keep the BACKPACK cool even on the hottest days Single Cable Plus DC Power A single Ethernet port funnels NDI, Power, Video, Audio, Tally, and Audio Intercom while a DC output enables you to power select monitors and cameras Tally Support A built-in tally display is available for viewing by both your talent and camera operator Flexible Power Options Power the BACKPACK from the built-in Sony L-Series-type battery plate, using PoE, or via the DC input PTZ Sidekick Connect a PTZ control cable for PTZ pass-through control for your non-NDI PTZ camera Adaptive Bit Rate Select the bitrate that best fits your 4K or HD production Software Tools The BACKPACK includes free BirdDog Central Lite, Dashboard, and Comms Lite software

Video Input Connectors	1 x HDMI (HDMI 2.0)
Input Video Format	HDMI UHD 4K: 25/29.97/30 fps 1080p: 25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps
Audio Input Connectors	1 x 1/8" / 3.5 mm TRS
Embedded Audio Input	HDMI: 2-Channel

Audio Output Connectors	1 x 1/8" / 3.5 mm TRS
Embedded Audio Output	HDMI: 2-Channel

Other I/O	1 x RJ45 NDI, PoE 1 x 2.5 mm RS-232
Expansion Slots	None

Video IP Encoding

NDI: x

Tally Light	Yes
Wi-Fi Support	Yes

Battery Support	1 x Sony L-Series / NP-F Type
Power Connector	1 x Barrel (12 VDC) Input 1 x Barrel (12 VDC) Output
PoE Support	PoH 802.3at

Dimensions	4.21 x 2.48 x 1.67" / 107 x 63 x 42.5 mm
Weight	5.29 oz / 150 g
Warranty Length	Limited 1-Year Warranty

Package Weight	1.445 lb
Box Dimensions (LxWxH)	7.1 x 6.3 x 4.3"
