Description

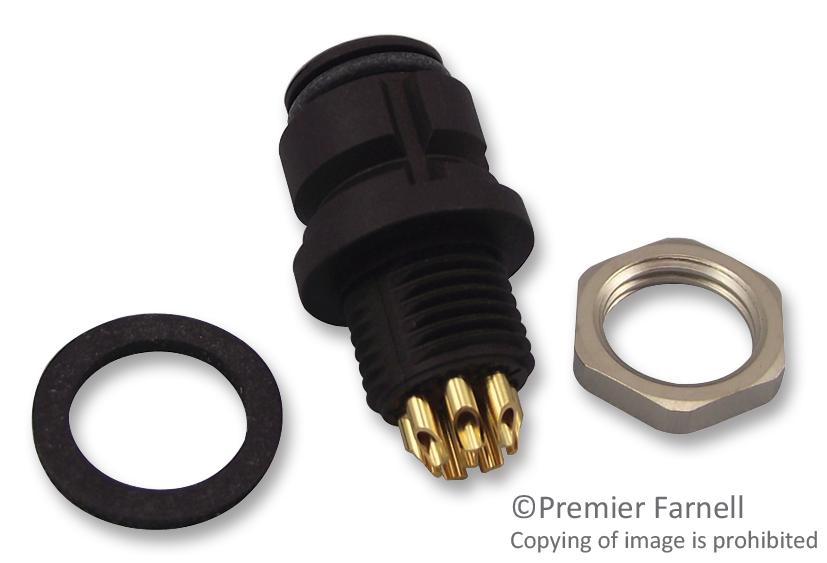

The 99-9228-00-08 is a 8-contact 125V/2.5A unshielded female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and housing. The 620 series receptacle with snap locking system, solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 5mm cable outlet.
- 800V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Medical, Consumer Electronics, Commercial, Portable Devices
Product details
| Product Range: 620 Series |
| Circular Connector Shell Style: Panel Mount Receptacle |
| No. of Contacts: 8Contacts |
| Circular Contact Type: Solder Socket |
| Coupling Style: - |
| Connector Body Material: Nylon (Polyamide) Body |
| Connector Body Plating: - |
| Contact Material: Bronze |
| Contact Plating: Gold |
Other details
| Brand | BINDER |
| Part Number | 99-9228-00-08 |
| Quantity | Each |
| Technical Data Sheet EN |  |
