₹ 801.83 includes GST and import duties. | |
B2B customers can avail ₹ 122.28 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description

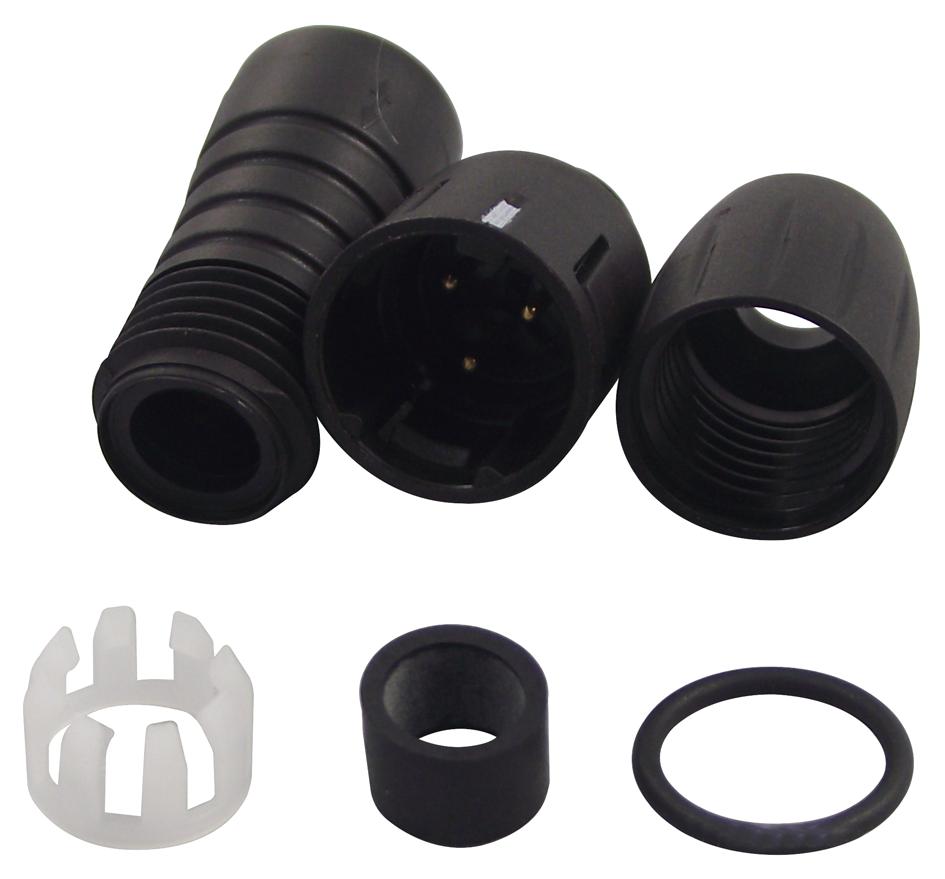

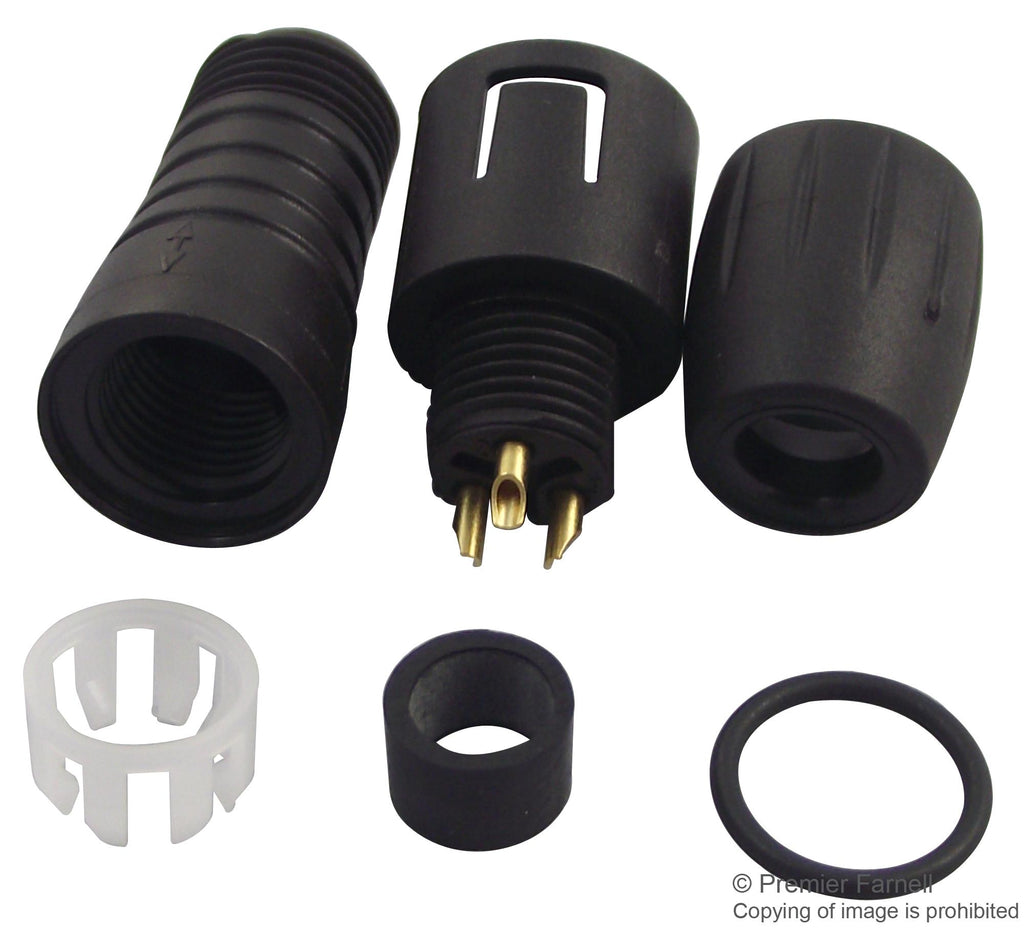

The 99-9205-00-03 is a 3-contact 125V/3A unshielded male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and housing, cable mounting style. The 620 series plug with snap locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 5mm cable outlet.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Medical, Consumer Electronics, Commercial, Portable Devices
Other details
Brand | BINDER |
Part Number | 99-9205-00-03 |
Quantity | Each |
Technical Data Sheet EN | |
Drawing EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 785.79 |
3-5 | ₹ 777.78 |
5-10 | ₹ 761.74 |
10+ | ₹ 745.7 |
Bulk discount will be automatically applied during checkout based on quantity.
