Description

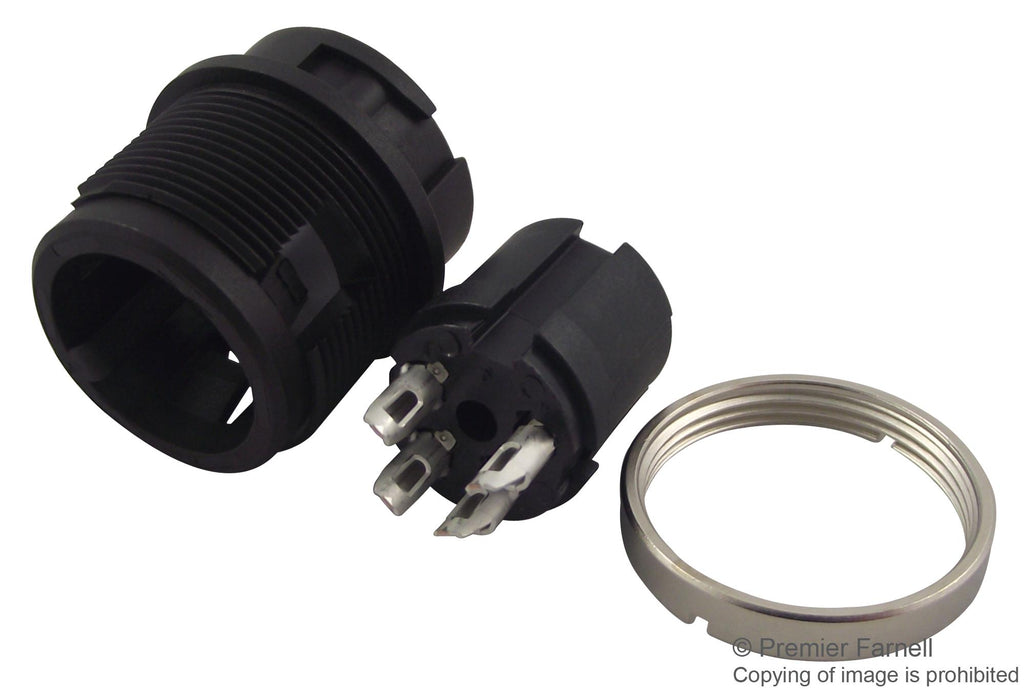

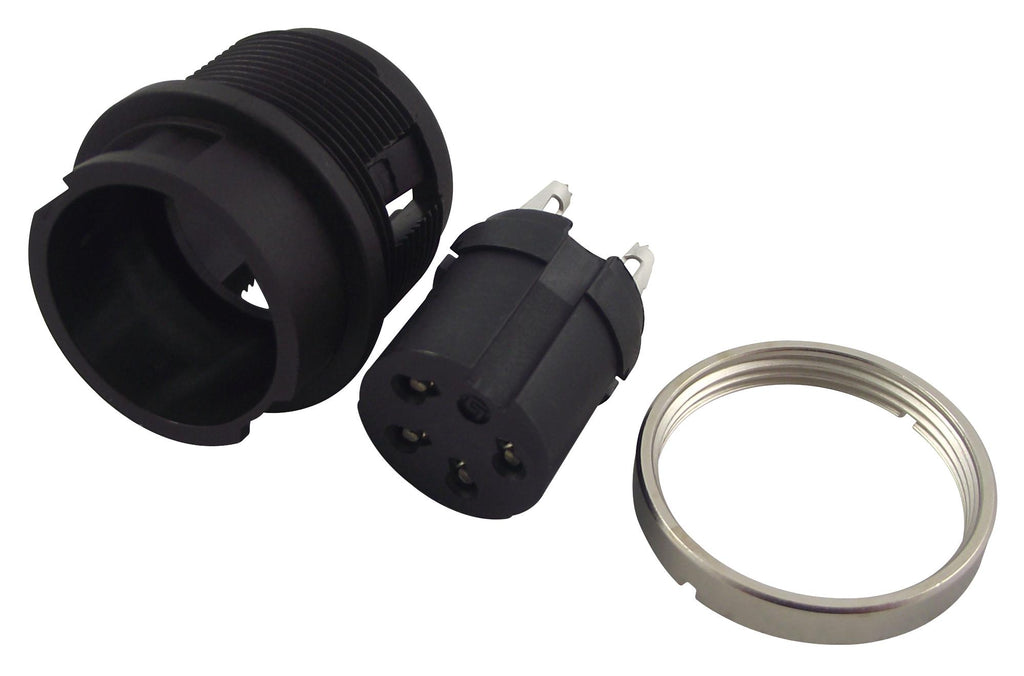

The 99 0612 00 04 is a 4-contact 250V/7A unshielded straight miniature female Circular Connector with silver-plated bronze contacts, PBT (UL94V-0) contact body and PA (UL94V-0) housing. The 678 series receptacle with Bayonet locking system, solder termination, cable mounting style. It accepts 20AWG (0.75mm²) wire, 4 to 6mm cable outlet.
- 1500V Rated impulse voltage
- <=5mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0612 00 04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
