Description

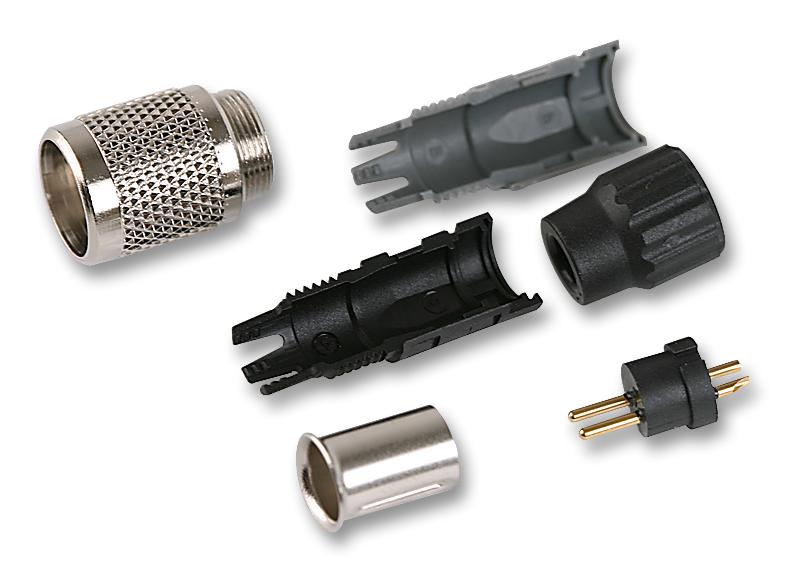

The 99 0475 100 07 is a 7-contact 125V/1A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and PA (UL94VH-B) housing. The 711 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 26AWG (0.14mm²) wire, 3 to 4mm cable outlet. The housing has an integrated strain relief for added strength.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Applications
Industrial
Product details
| Product Range: 711 Series |
| Circular Connector Shell Style: Cable Mount Plug |
| No. of Contacts: 7Contacts |
| Circular Contact Type: Solder Pin |
| Coupling Style: - |
| Connector Body Material: Nylon (Polyamide) Body |
| Connector Body Plating: - |
| Contact Material: Brass |
| Contact Plating: Gold |
Other details
| Brand | BINDER |
| Part Number | 99 0475 100 07 |
| Quantity | Each |
| Technical Data Sheet EN |  |
