Description

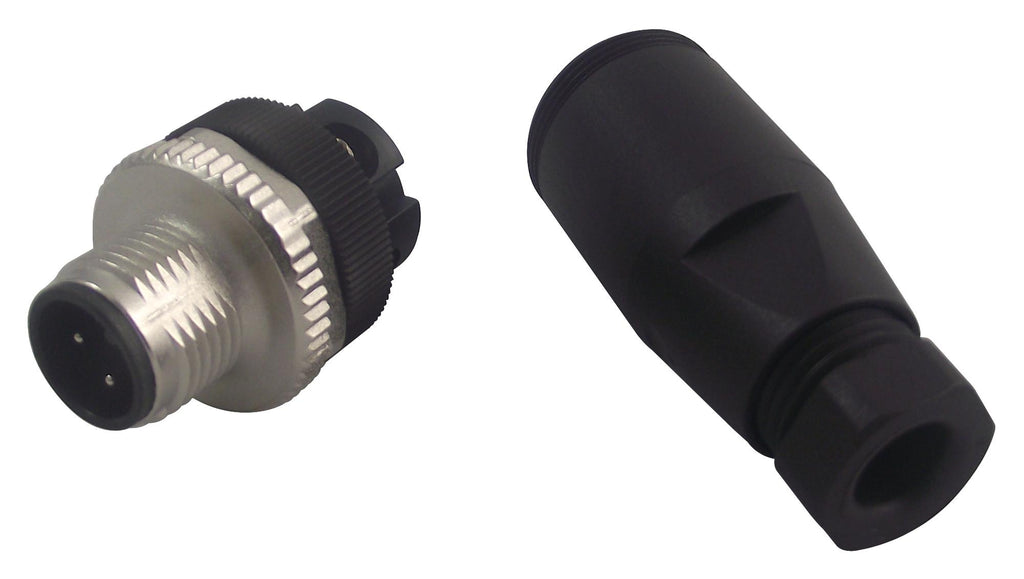

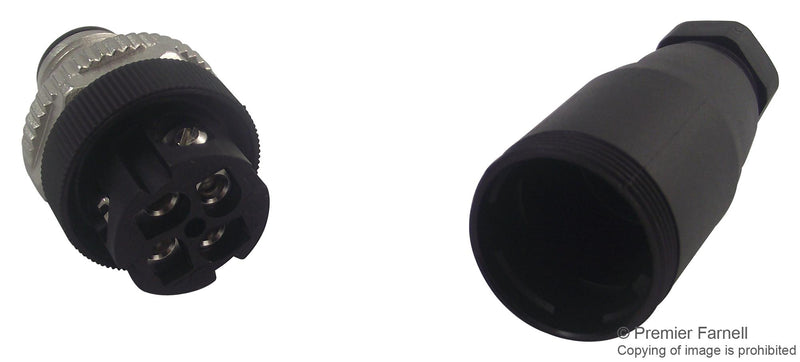

The 99-0429-14-04 from Binder is a circular cable plug sensor connector with 4 pin contacts. It has M12 x 1 screw interlock and screw termination. This compact design sensor connector ensures rational and economic system wiring. This flexibly configured connector is suitable for wide range of requirements in the field of automation technology.
- Wire gauge size of 0.75mm² (18AWG)
- Cable outlet diameter from 4mm to 6mm
- IP67 degree of protection
- Temperature range from -40°C to 85°C
- Rated voltage of 250V
- Rated current of 4A at 40°C
- Brass (CuZn) contacts with CuSnZn (optaloy) plating
- Polyamide (PA) contact body and housing
- Rated impulse voltage of 2500V
Industrial, Sensing & Instrumentation, Automation & Process Control
Other details
| Brand | BINDER |
| Part Number | 99-0429-14-04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
