Description

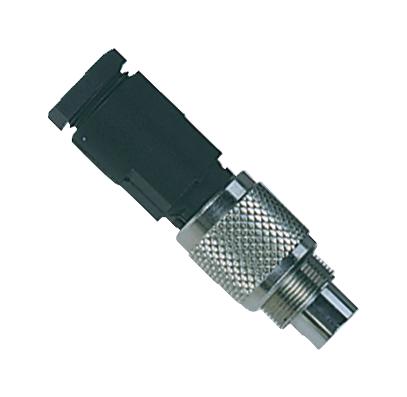

The 99 0421 00 07 is a 7-contact 125V/1A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and PA (UL94VH-B) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 26AWG (0.14mm²) wire, 3.5 to 5mm cable outlet.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0421 00 07 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2985.04 |
| 3-5 | ₹ 2954.58 |
| 5-10 | ₹ 2893.66 |
| 10+ | ₹ 2832.74 |
Bulk discount will be automatically applied during checkout based on quantity.
