| ₹ 1959.4 includes GST and import duties. | |
| B2B customers can avail ₹ 298.81 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

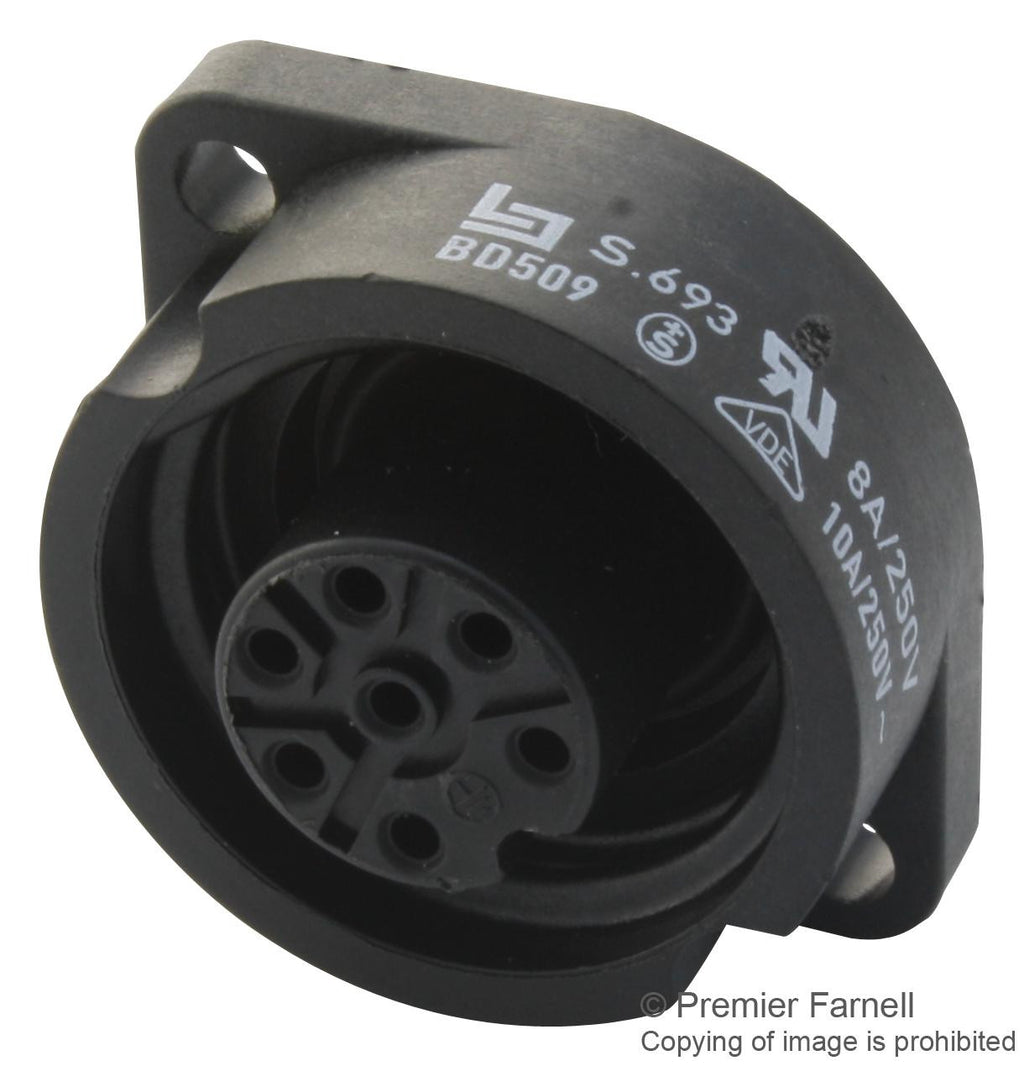

The 09-4228-00-07 is a 6+PE-contact 250V/10A unshielded straight female Circular Connector with silver-plated bronze contacts, PBT contact body. The 693 series socket with RD 24 screw locking system, solder termination, front mounting style. It accepts 20AWG (0.75mm²) wire. An internal strain relief gives added strength to the attached cable.
- 4000V Rated impulse voltage
- <=5mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Industrial
Product details
| Connector Body Plating | - |
| No. of Contacts | 7Contacts |
| Contact Plating | Silver |
| Coupling Style | - |
| Circular Connector Shell Style | Panel Mount Receptacle |
| Product Range | 693 Series |
| Contact Material | Bronze |
| Circular Contact Type | Solder Socket |
| Connector Body Material | Metal Body |
Other details
| Brand | BINDER |
| Part Number | 09-4228-00-07 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1920.21 |
| 3-5 | ₹ 1900.62 |
| 5-10 | ₹ 1861.43 |
| 10+ | ₹ 1822.24 |
Bulk discount will be automatically applied during checkout based on quantity.
