Description

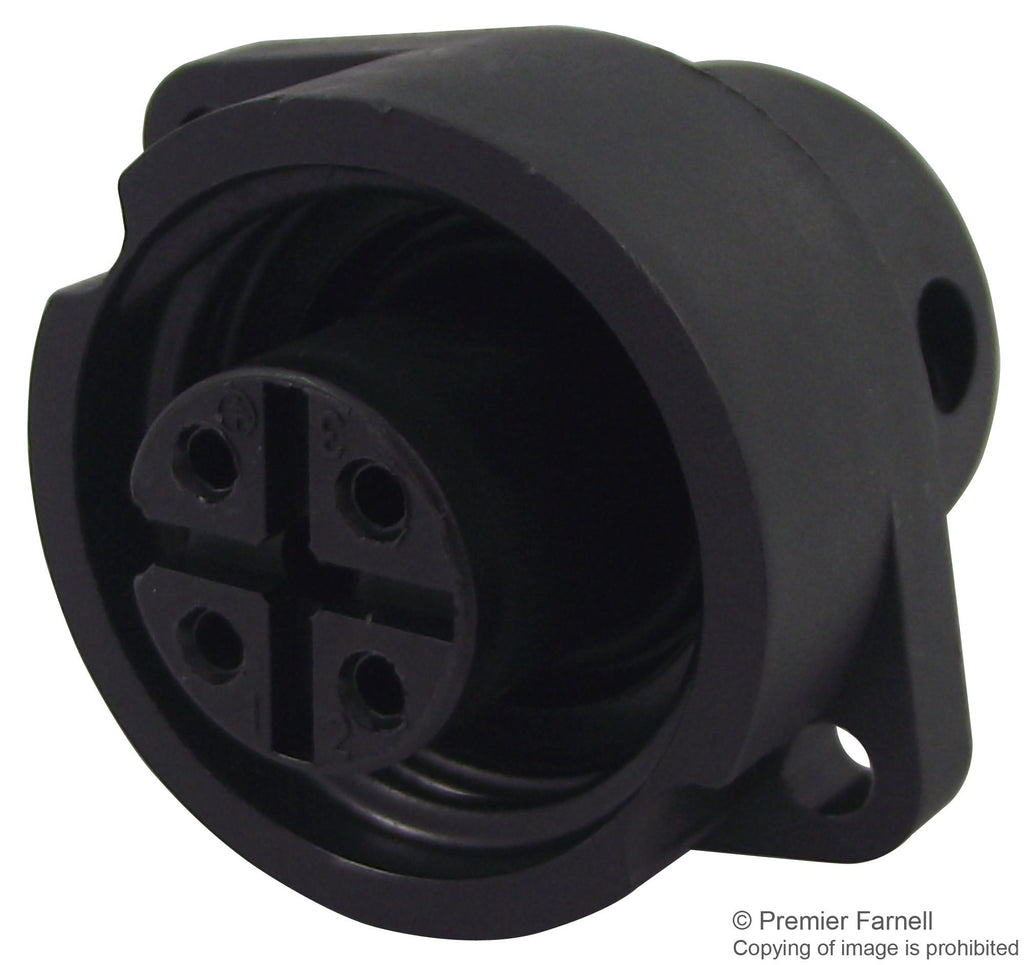

The 09-4224-00-04 is a 3 + PE female panel mount Circular Connector with silver-plated contacts and PBT contact body. Screw connector locking system.
- 600V Rated voltage
- 6000V Rated impulse voltage
- 16A (12A UL) Rated current (40°C)
- <=5mR Volume resistivity
- 0.5 to 2.5mm² Wire gauge
- >500-cycle Mechanical operation (mating)
- IP67 Protection rating
- -40 to 100°C Temperature range
Applications
Industrial
Product details
| Connector Body Plating | - |
| No. of Contacts | 4Contacts |
| Contact Plating | Silver |
| Coupling Style | - |
| Circular Connector Shell Style | Panel Mount Receptacle |
| Product Range | 693 Series |
| Contact Material | Bronze |
| Circular Contact Type | Screw Socket |
| Connector Body Material | Metal Body |
Other details
| Brand | BINDER |
| Part Number | 09-4224-00-04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1933.16 |
| 3-5 | ₹ 1913.43 |
| 5-10 | ₹ 1873.98 |
| 10+ | ₹ 1834.53 |
Bulk discount will be automatically applied during checkout based on quantity.
