| ₹ 2307.77 includes GST and import duties. | |
| B2B customers can avail ₹ 351.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

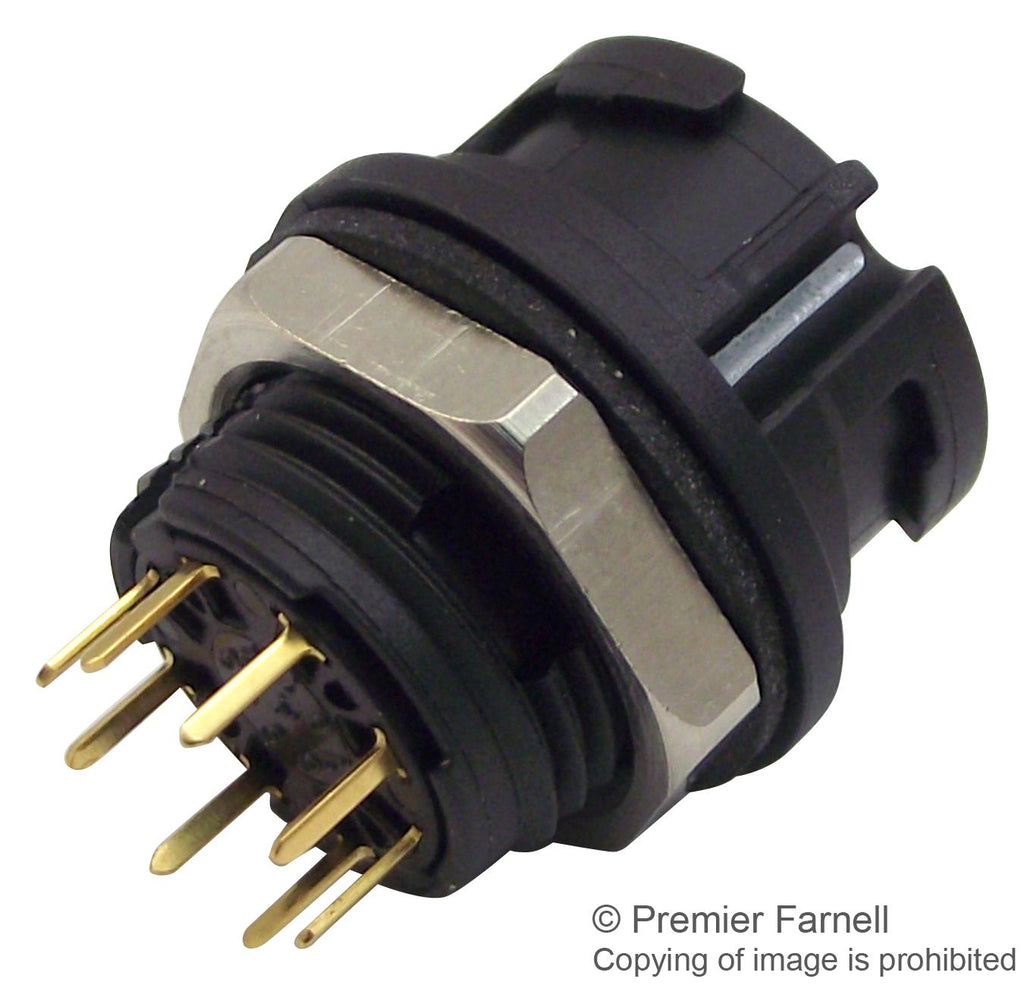

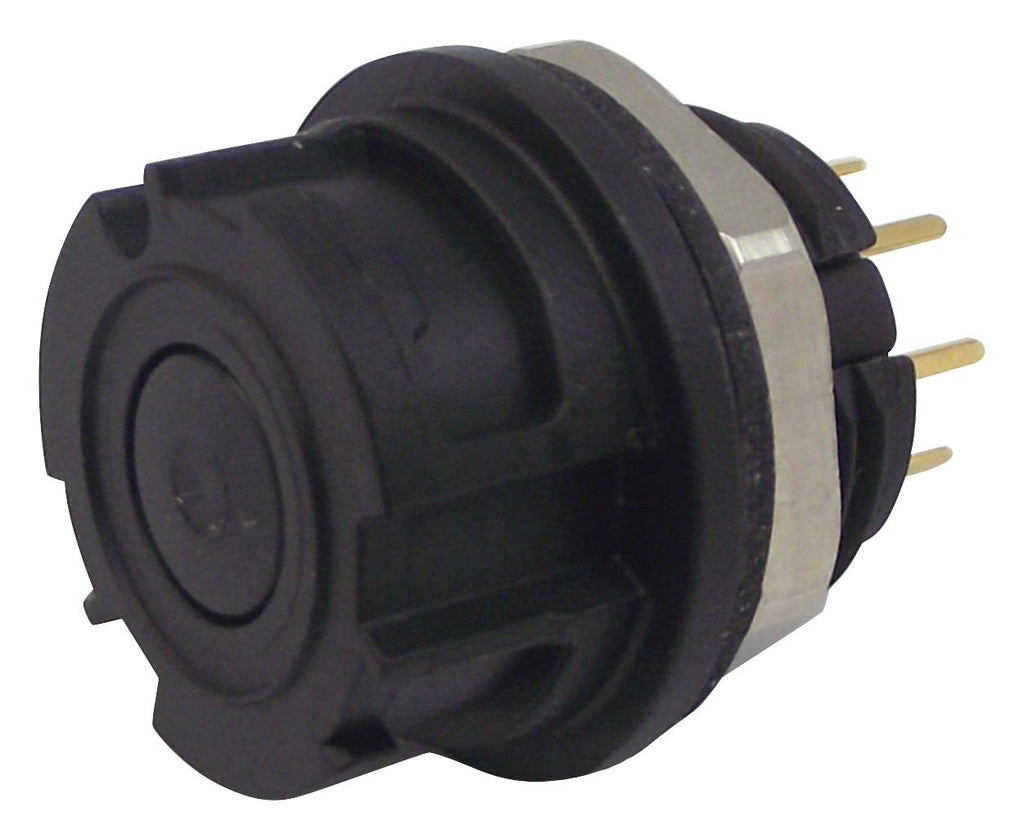

The NCC 770 series Circular Connector which is IP67-rated in unmated condition. Applications are primarily in medical and industrial environments where frequent spillages and wash-downs are expected. The panel-mounted receptacle has an internal sliding cap that moves forward and seals the contact area when the plug is disconnected from the receptacle. The NCC connector features bayonet locking for quick, easy and reliable mating and demating of the connector halves. Visual indicators on the plug and receptacle assist in the alignment of both connector halves during the mating process. The male cable connector accommodates cables with 2.5 to 8mm overall diameter. Panel-mounted receptacle offers the option of solder or PCB pins. The 8 gold-plated contacts are rated at 175V and 2A per contact. Applications
Industrial
Other details
| Brand | BINDER |
| Part Number | 09-0774-090-08 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2261.61 |
| 3-5 | ₹ 2238.54 |
| 5-10 | ₹ 2192.38 |
| 10+ | ₹ 2146.23 |
Bulk discount will be automatically applied during checkout based on quantity.
