| ₹ 2875.15 includes GST and import duties. | |
| B2B customers can avail ₹ 438.46 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

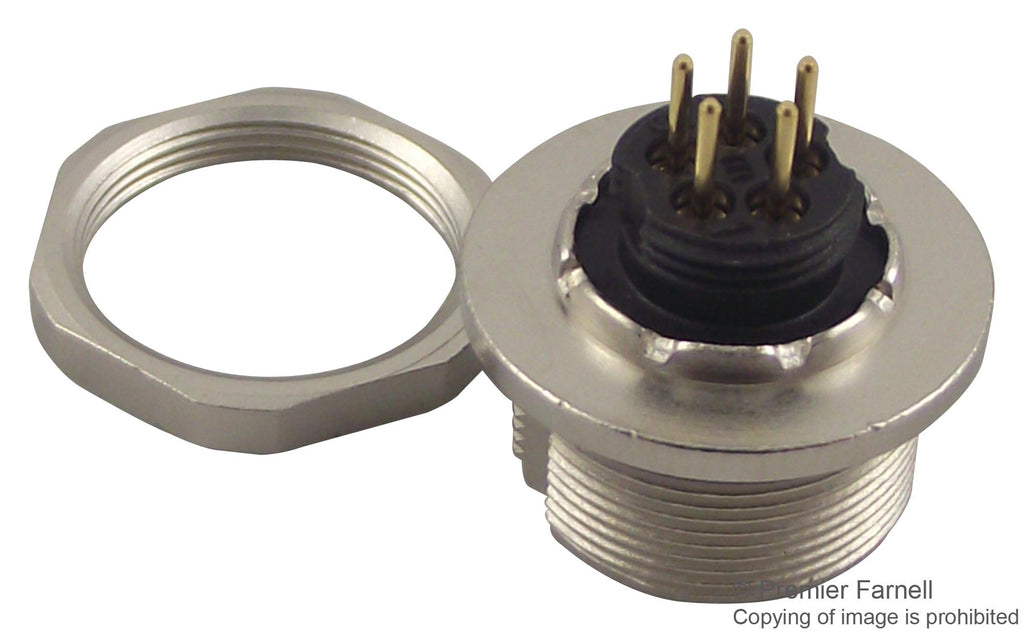

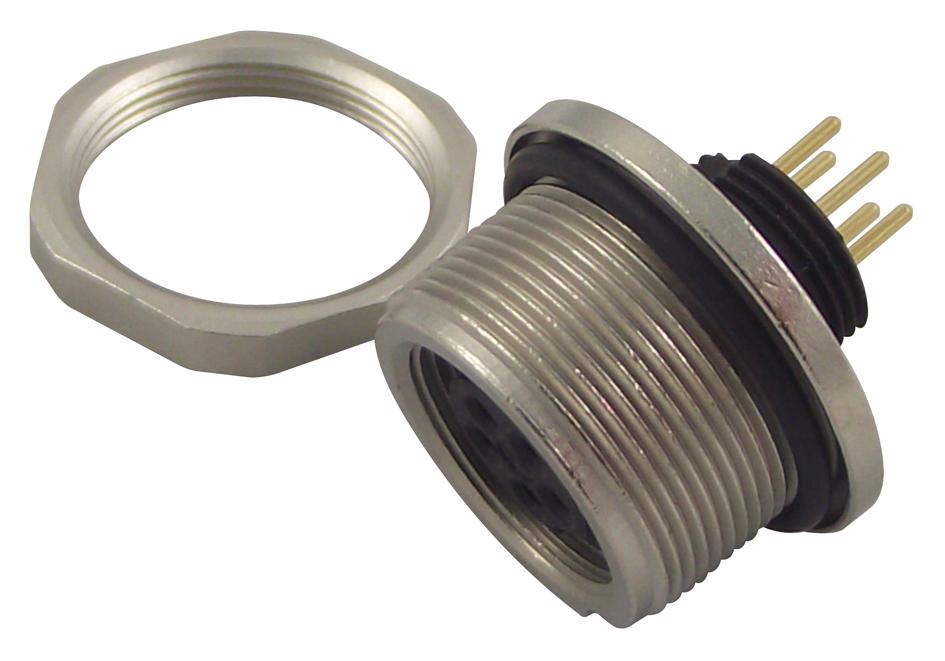

The 09 0416 90 05 is a 5-contact 125V/3A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, nickel-plated brass housing. The 712 series receptacle with M9 screw locking system, dip-solder termination, rear mounting style.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0416 90 05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2817.65 |
| 3-5 | ₹ 2788.9 |
| 5-10 | ₹ 2731.39 |
| 10+ | ₹ 2673.89 |
Bulk discount will be automatically applied during checkout based on quantity.
