Description

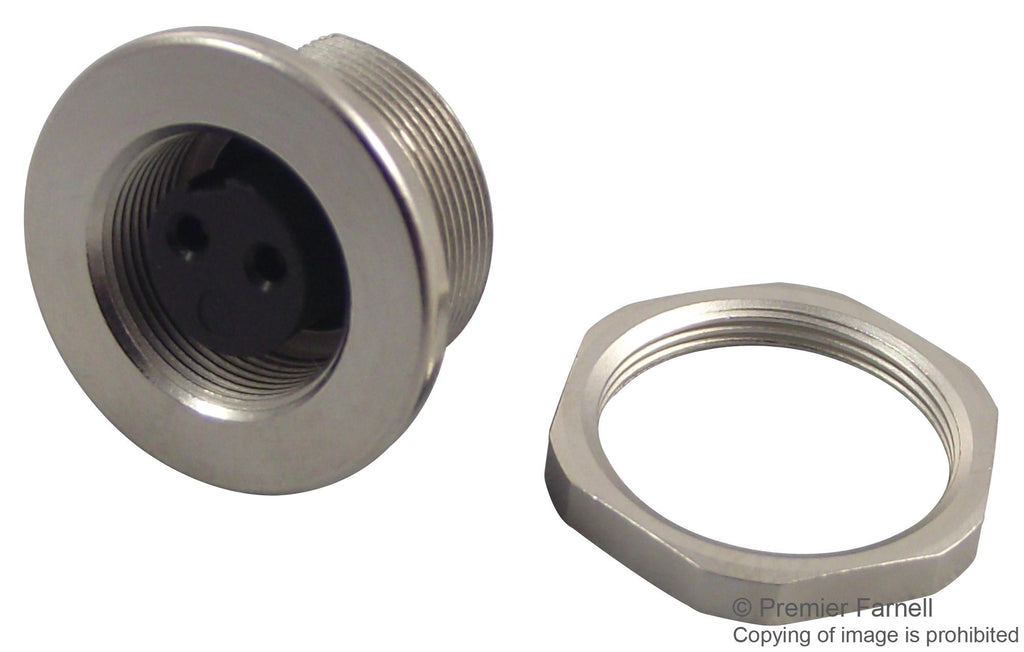

The 09-0404-00-02 is a 2-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PBT (UL94V-0) contact body and brass nickel-plated housing. The 712 series receptacle with M9 screw locking system, solder termination, front mounting style. It accepts 24AWG (0.25mm�) wire.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Industrial
Product details
| Connector Body Plating | - |
| No. of Contacts | 2Contacts |
| Contact Plating | Gold |
| Coupling Style | - |
| Circular Connector Shell Style | Panel Mount Receptacle |
| Product Range | 712 Series |
| Contact Material | Bronze |
| Circular Contact Type | Solder Socket |
| Connector Body Material | - |
Other details
| Brand | BINDER |
| Part Number | 09-0404-00-02 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
