Description

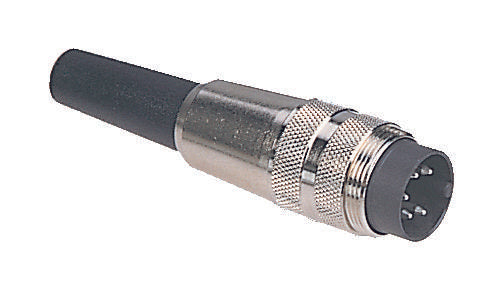

The 09 0317 00 05 is a 5-contact 60V/6A unshielded straight miniature male Circular Connector with silver-plated brass contacts, PBT (UL94V-0) contact body, PA (UL94 HB) housing. The 680 series plug with M16 screw locking system, solder termination for easy shield or ground connection, cable mounting style. It accepts 20AWG (0.75mm²) wire, 3 to 6mm cable outlet. It has integral bend protection sleeve.
- 1500V Rated impulse voltage
- <=5mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0317 00 05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
