Description

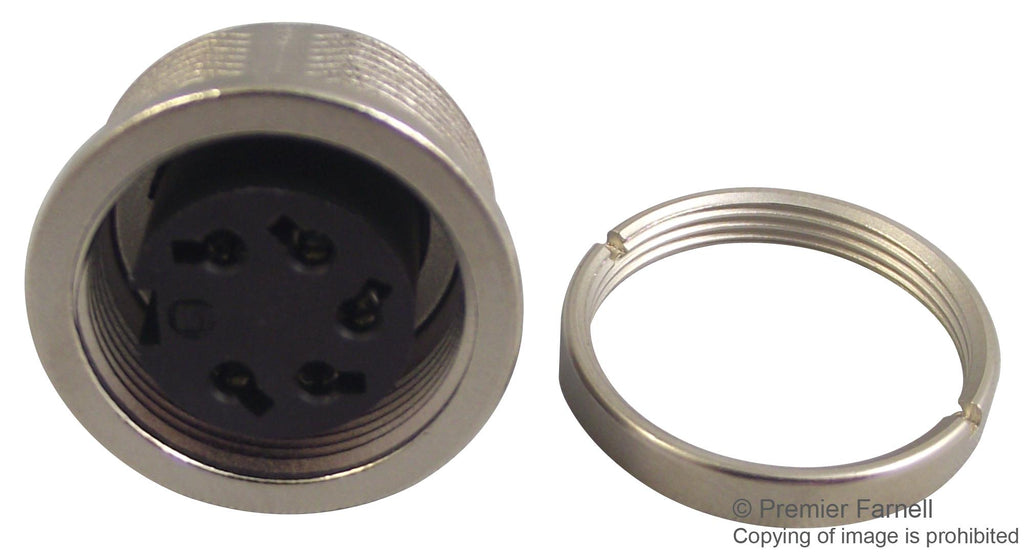

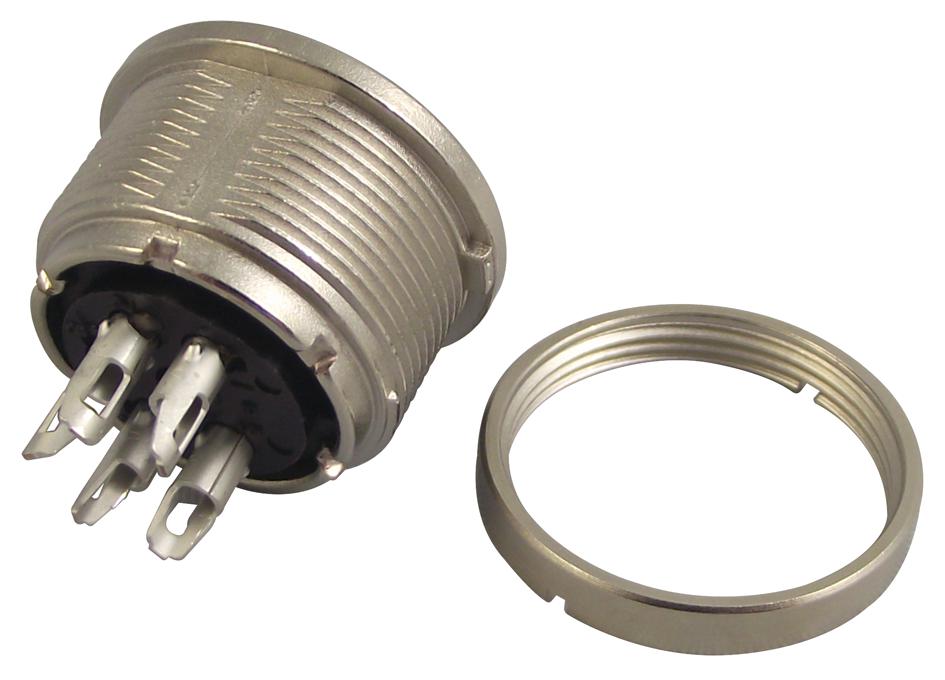

The 09 0316 00 05 is a 5-contact female panel mount Circular Connector with silver-plated contacts, PBT (UL94V-0) contact body and nickel-plated die-cast zinc housing. Screw connector locking system.
- 250V Rated voltage
- 1500V Rated impulse voltage
- 6A Rated current (40°C)
- <=5mR Volume resistivity
- 0.75mm² Wire gauge
- >500-cycle Mechanical operation (mating)
- IP40 Protection rating
- -40 to 85°C Temperature range
Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0316 00 05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
