Description

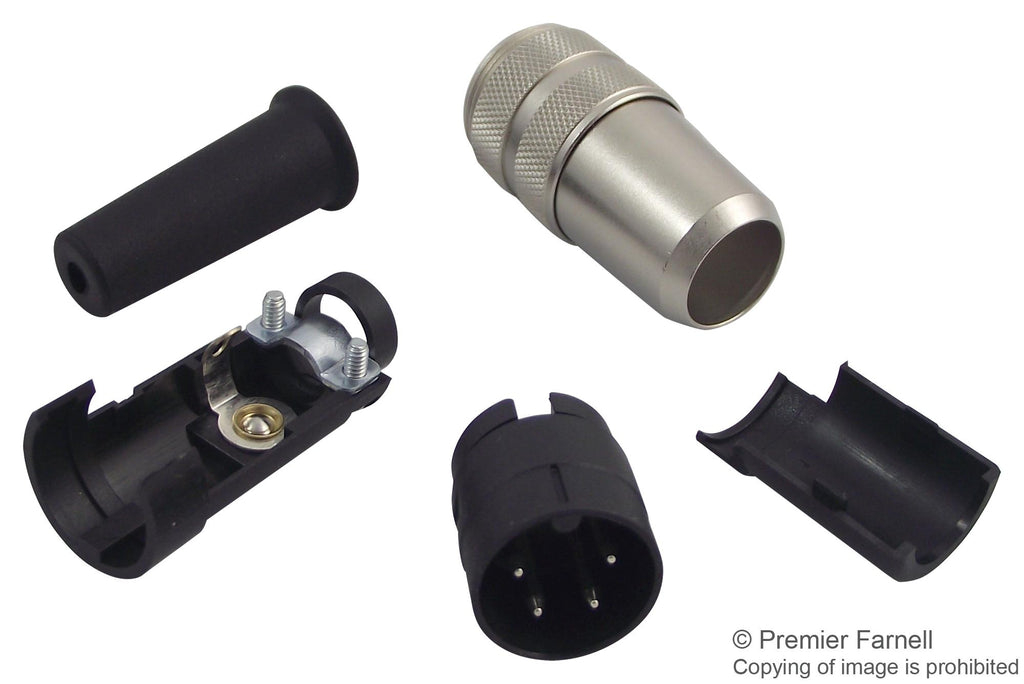

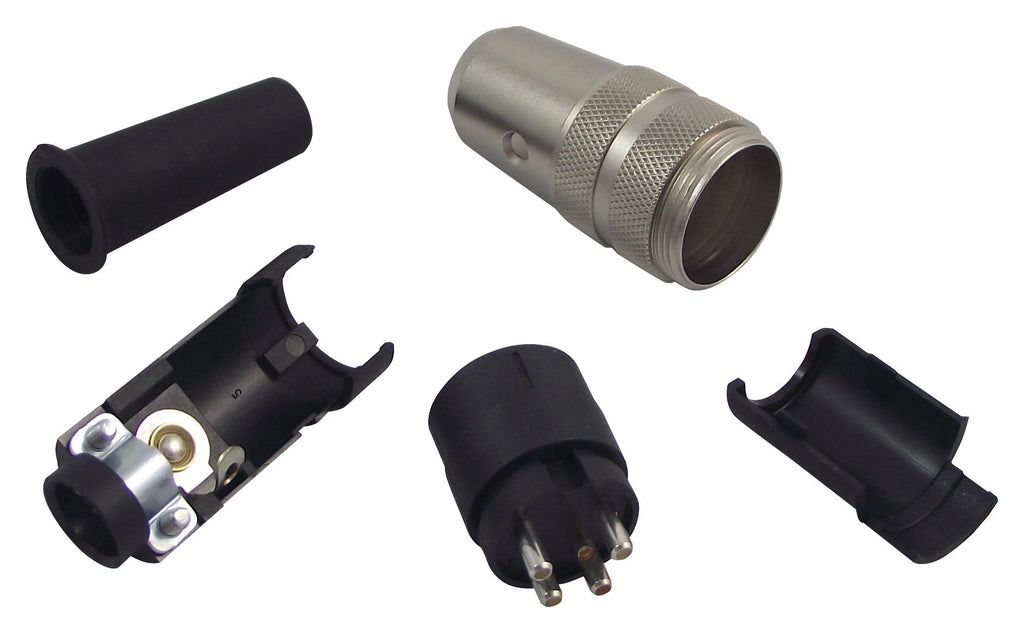

The 09 0309 00 04 from Binder is a miniature circular cable plug connector with 4 pin contact. This connector has compact design and easy to assemble. The contact terminals ensure a secure connection even in the case of high vibration and impact loads. It has M16 screw locking facility according to DIN EN 61076-2-106 standard and provides good EMI characteristics.
- Cable outlet diameter of 3mm to 6mm
- Solder termination
- Wire gauge size is 0.75mm² (20AWG)
- IP40 degree of protection
- Temperature range from -40°C to 85°C
- Rated voltage of 250V
- Rated current of 6A at 40°C
- Brass (CuZn) contacts with silver (Ag) plating
- UL94 V-0 rated polybutylene terephthalate (PBT) contact body
- UL94 HB rated polyamides (PA) housing
Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0309 00 04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
